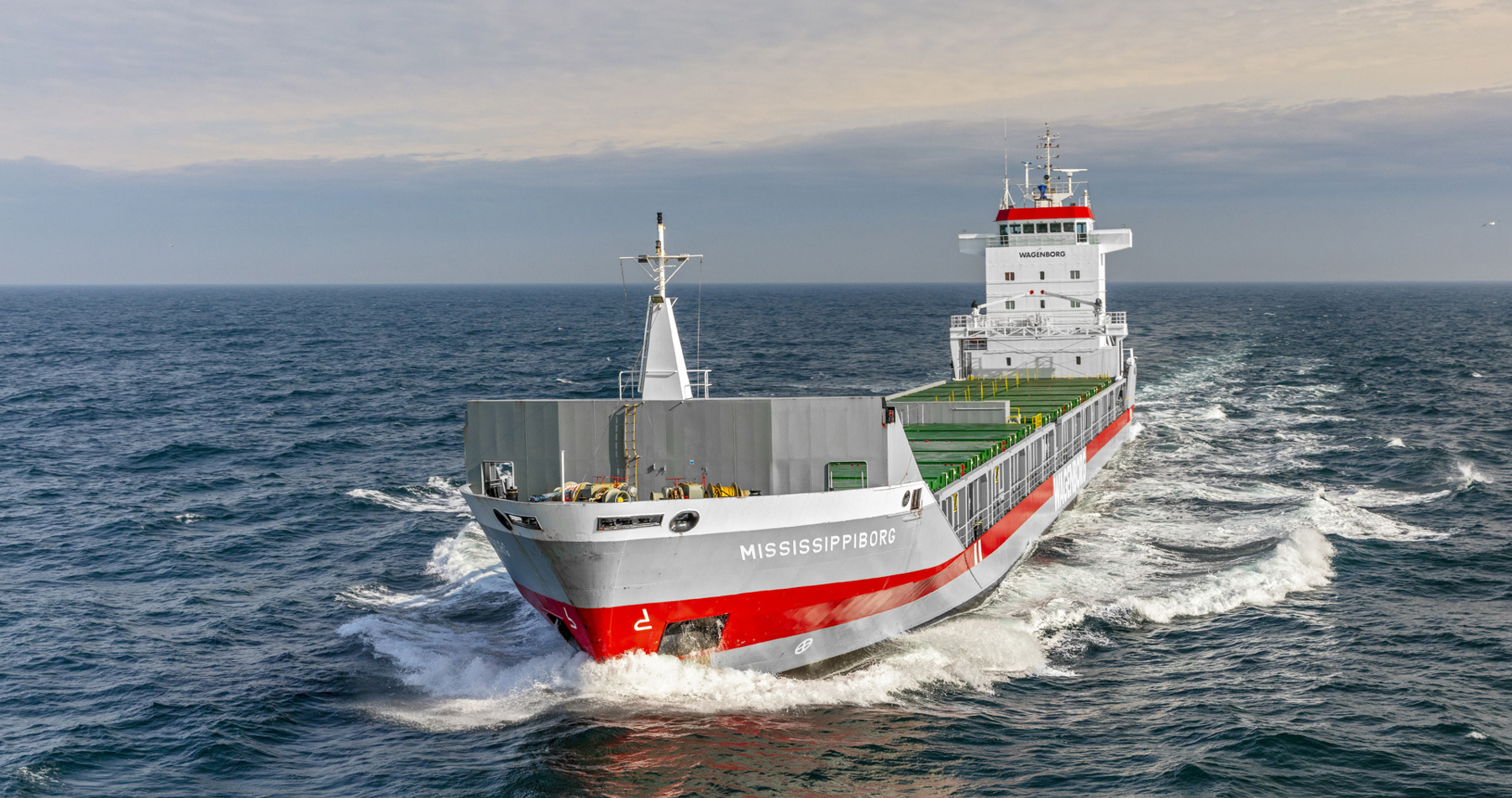

M-Class
Multipurpose Dry Cargo Carrier | 5 Vessel | Finnish /Swedish 1A
Length o.a.: 134.5 | Beam: 16.5
Hold capacity (cbft)
454.000
DWCC (t)
8.900
Key features
Vessels in this series
5
Flag
Dutch
Trading Area
Europe
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Bijlsma Shipyard B.V.
Classification
Bureau Veritas
Class notations
I + HULL + MACH, General Cargo Ship, Container Ship, Heavy cargo (150 kN/m2), Unrestricted Navigation, + AUT-UMS + SYS-NEQ-1, MON-SHAFT, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.769
DWCC Summer
8.900
Length over all
134.5
Breadth over all
16.5
Draft summer
7.4
Draft in ballast
4.294
TPC SSW
19
Air draft in ballast
33.5
Depth (moulded)
9.8
Distance WL-HC in ballast
7.6
GT
6.540
NT
3.464
Cargo capacities
Total cubic feet capacity
454000 ft3 grain/bale
Holds/hatches
2 holds/ 2 hatches, both types are : Fully openhatch - no understow. Fully box and double skinned (except narrowing fore
/ aft part).
Hold #1
Dimensions
39.2 x 13.5 x 10.86
Luiken
39.2 x 13.5 x 10.86
Hold #2
Dimensions
52.5 x 13.5 x 10.86
Luiken
52.5 x 13.5 x 10.86
Electrical ventilaton
12 Air changes per hour, basis empty holds. Both holds are fitted with dehumidifier system
Tank capacities
HFO
642
MGO
115.8
Water ballast capacity
4294
Fresh Water
66.4
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Stork-Wartsila 8L38 5280 0
Bow thruster
650
Vessels in this series
- Medemborg 1997
- Merweborg 1997
- Mississippiborg 2000
- Missouriborg 2000
- Moezelborg 1999
Related ship series

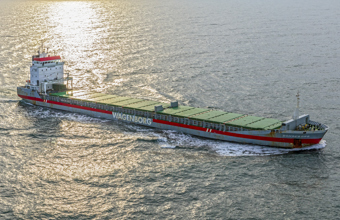

D-Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 133.41 | Beam: 15.85
Hold capacity (cbft)
447.841
DWCC (t)
8.350

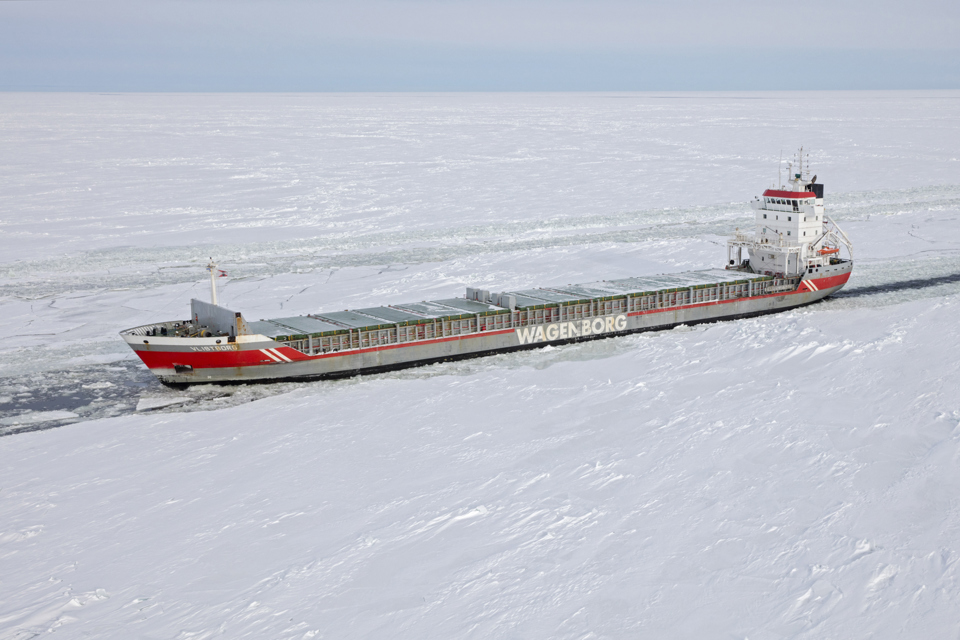

V-Class
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 132.23 | Beam: 15.87
Hold capacity (cbft)
454.000
DWCC (t)
8.800

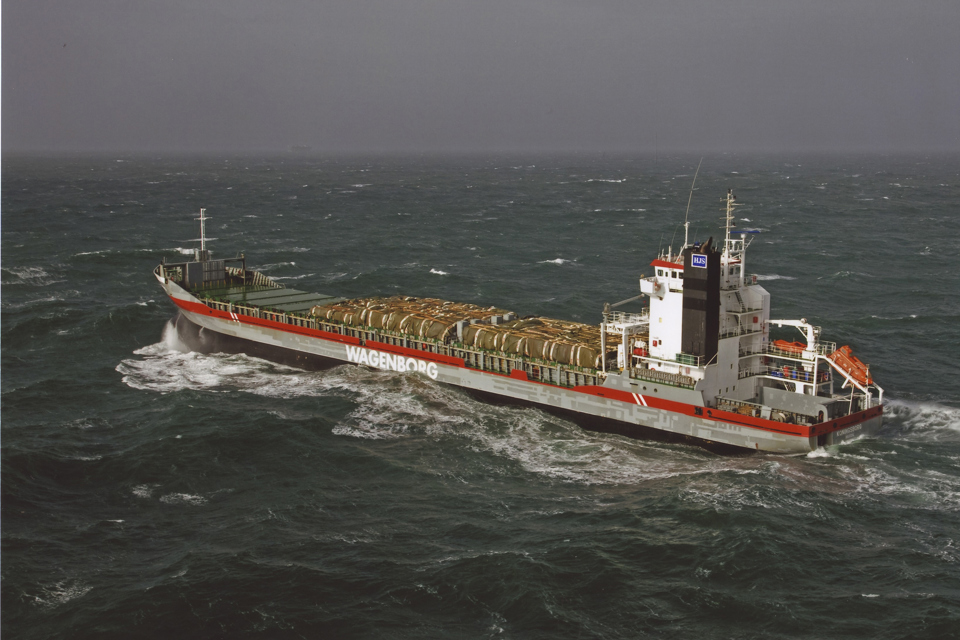

K-Class
