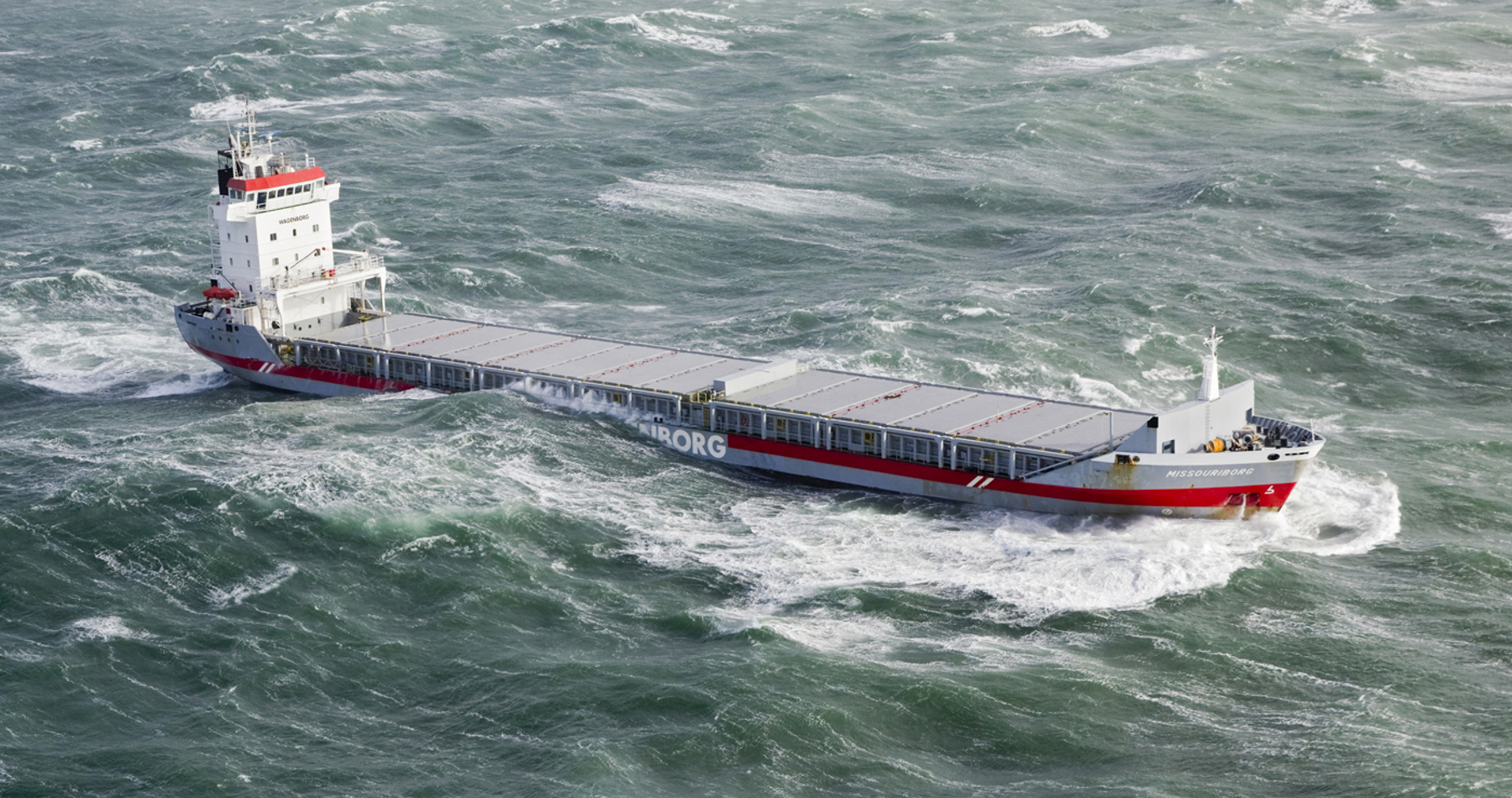

Missouriborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 134.55 | Beam: 16.5
Hold capacity (cbft)
450.000
DWCC (t)
8.900
Key features
Vessels in this series
5
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Bijlsma Shipyard B.V.
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo(147 kN/m2 non homload 196 kN/m2 (max block lenght 2,8m min.spacing between blocks 4,2m)); Container ship Unrestricted navigation Ice class IA, +AUT-UMS, SYS0-NEQ-1, MON-SHAFT
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.686
DWCC Summer
8.900
Length over all
134.55
Breadth over all
16.5
Draft summer
7.4
Draft in ballast
4.294
TPC SSW
19
Air draft in ballast
33.5
Depth (moulded)
9.8
Distance WL-HC in ballast
7.6
GT
6.585
NT
3.691
Cargo capacities
Total cubic feet capacity
450000 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches, both holds are: Fully open hatch - no understow. Fully box and double skinned. (exept narrowing fo
re/ aft part)
Hold #1
Dimensions
39.2 x 13.5 x 10.86
Luiken
39.2 x 13.5 x 10.86
Hold #2
Dimensions
52.5 x 13.5 x 10.86
Luiken
52.5 x 13.5 x 10.86
Electrical ventilaton
Hold ventilation abt. 12 air changes per hour. Both holds fitted with dehumidifier system.
Tank capacities
HFO
584
MGO
80
Water ballast capacity
4294
Fresh Water
66
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Stork-Wartsila 8L38 5280 0
Bow thruster
600
Vessels in this series
- Medemborg 1997
- Merweborg 1997
- Mississippiborg 2000
- Missouriborg 2000
- Moezelborg 1999
