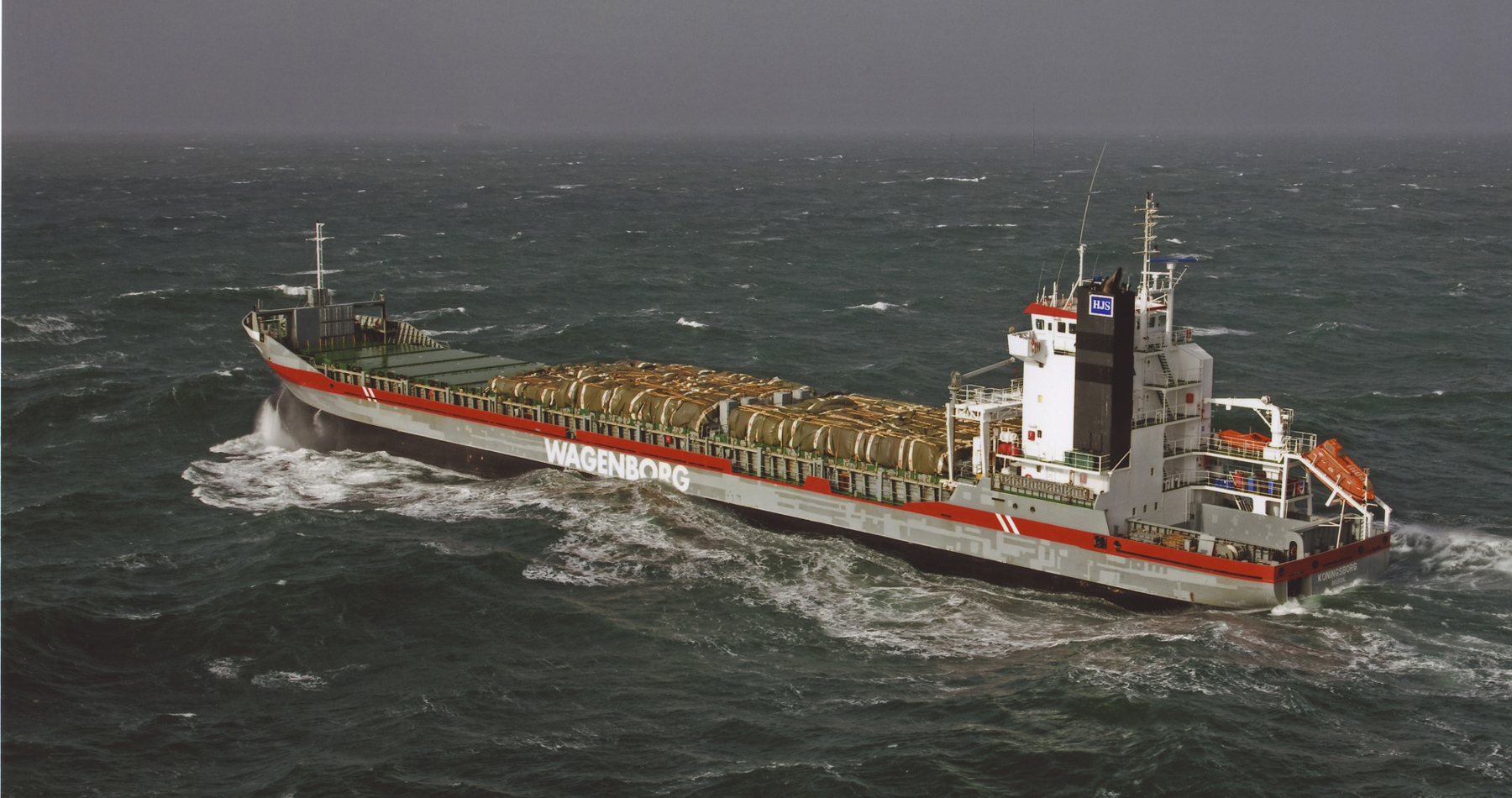

K-Class
Multipurpose Dry Cargo Carrier | 1 vessel | Finnish /Swedish 1A
Length o.a.: 130.17 | Beam: 15.87
Hold capacity (cbft)
425.000
DWCC (t)
8.500
Key features
Vessels in this series
1
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Ferus Smit B.V.
Classification
Lloyd's Register
Class notations
100 A1 Strengthened for Heavy Cargoes, Container Cargoes in all Holds and on all Hatch Covers, LI, Ice Class 1A FS at a draught of 7,650 metres. +LMC, UMS
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.067
DWCC Summer
8.500
Length over all
130.17
Breadth over all
15.87
Draft summer
7.46
Draft in ballast
3.260
TPC SSW
16.2
Air draft in ballast
34.5
Depth (moulded)
10.2
Distance WL-HC in ballast
7.7
GT
6.142
NT
3.482
Cargo capacities
Total cubic feet capacity
425000 ft3 grain/bale
Holds/hatches
2 Holds/ 2 Hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box s
tructures in fore and aft part due to vessel's outer shape.
Hold #1
Dimensions
60.55 x 13.2 x 11.05
Luiken
60.55 x 13.2 x 11.05
Hold #2
Dimensions
24.85 x 13.2 x 11.05
Luiken
24.85 x 13.2 x 11.05
Electrical ventilaton
Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de
Tank capacities
HFO
460
MGO
55
Water ballast capacity
3260.22
Fresh Water
49.93
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
SWD 6L38 B 3960 0
Propeller
LIPS 4 blade CCP / 3960 kW
Bow thruster
500
Vessels in this series
- Koningsborg 1998
Related ship series

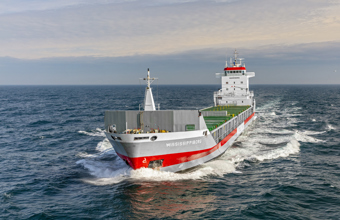

M-Class
Multipurpose Dry Cargo Carrier | 5 Vessel | Finnish /Swedish 1A
Length o.a.: 134.5 | Beam: 16.5
Hold capacity (cbft)
454.000
DWCC (t)
8.900

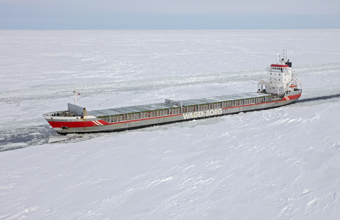

V-Class
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 132.23 | Beam: 15.87
Hold capacity (cbft)
454.000
DWCC (t)
8.800

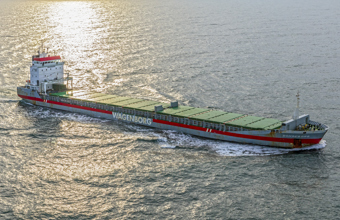

D-Class
