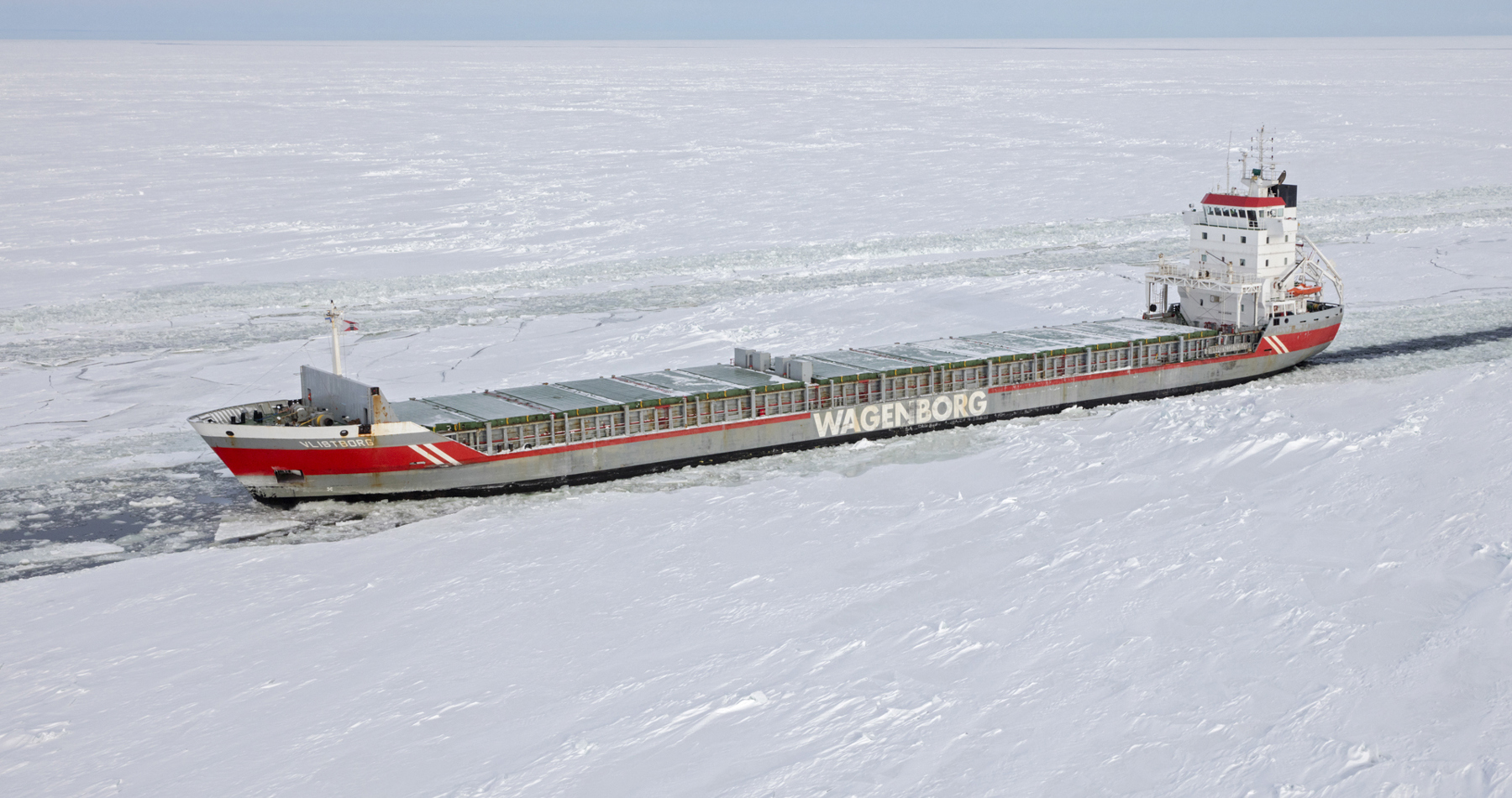

V-Class

Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A

Length o.a.: 132.23 | Beam: 15.87

Hold capacity (cbft) 454.000
DWCC (t) 8.800

Key features

Vessels in this series 4
Flag Dutch
Trading Area Europe
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads Yes
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Bodewes Volharding
Classification
Bureau Veritas
Class notations
I + HULL + MACH +AUT-UMS, +SUS-NEQ-1 General cargo ship -heavycargo(147kN/m2); Container ship, Unrestricted navigation, MON-SHAFT, ICE CLASS IA
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.567
DWCC Summer
8.800
Length over all
132.23
Breadth over all
15.87
Draft summer
7.5
Draft in ballast
3.725
TPC SSW
18
Air draft in ballast
33.5
Depth (moulded)
9.65
Distance WL-HC in ballast
7.7
GT
6.130
NT
3.608

Cargo capacities

Total cubic feet capacity
454000 ft3 grain/bale

Holds/hatches

2 Holds / 2 Hatches : Both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square- excep
t box structures due to vessel's outer shape.

Hold #1

Dimensions
39.96 x 13.2 x 10.84
Luiken
39.96 x 13.2 x 10.84

Hold #2

Dimensions
52.54 x 13.2 x 10.84
Luiken
52.54 x 13.2 x 10.84

Electrical ventilaton

Hold ventilation about 12 air changes per hour.
Both holds fitted with dehumidifier system.

Tank capacities

HFO
466
MGO
47
Water ballast capacity
3725
Fresh Water
71

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
Wartsila 6L38 3960 0
Bow thruster
500

Related ship series

960x640

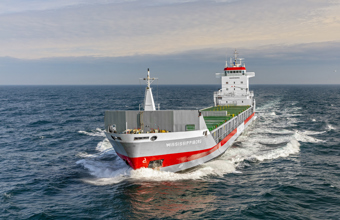

M-Class
Multipurpose Dry Cargo Carrier | 5 Vessel | Finnish /Swedish 1A
Length o.a.: 134.5 | Beam: 16.5
Hold capacity (cbft) 454.000
DWCC (t) 8.900
960x640

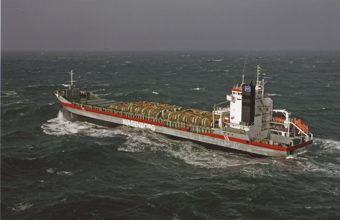

K-Class
Multipurpose Dry Cargo Carrier | 1 vessel | Finnish /Swedish 1A
Length o.a.: 130.17 | Beam: 15.87
Hold capacity (cbft) 425.000
DWCC (t) 8.500
960x640

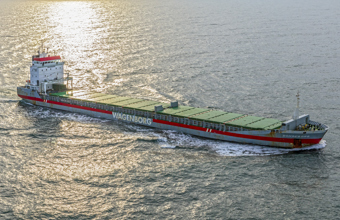

D-Class
