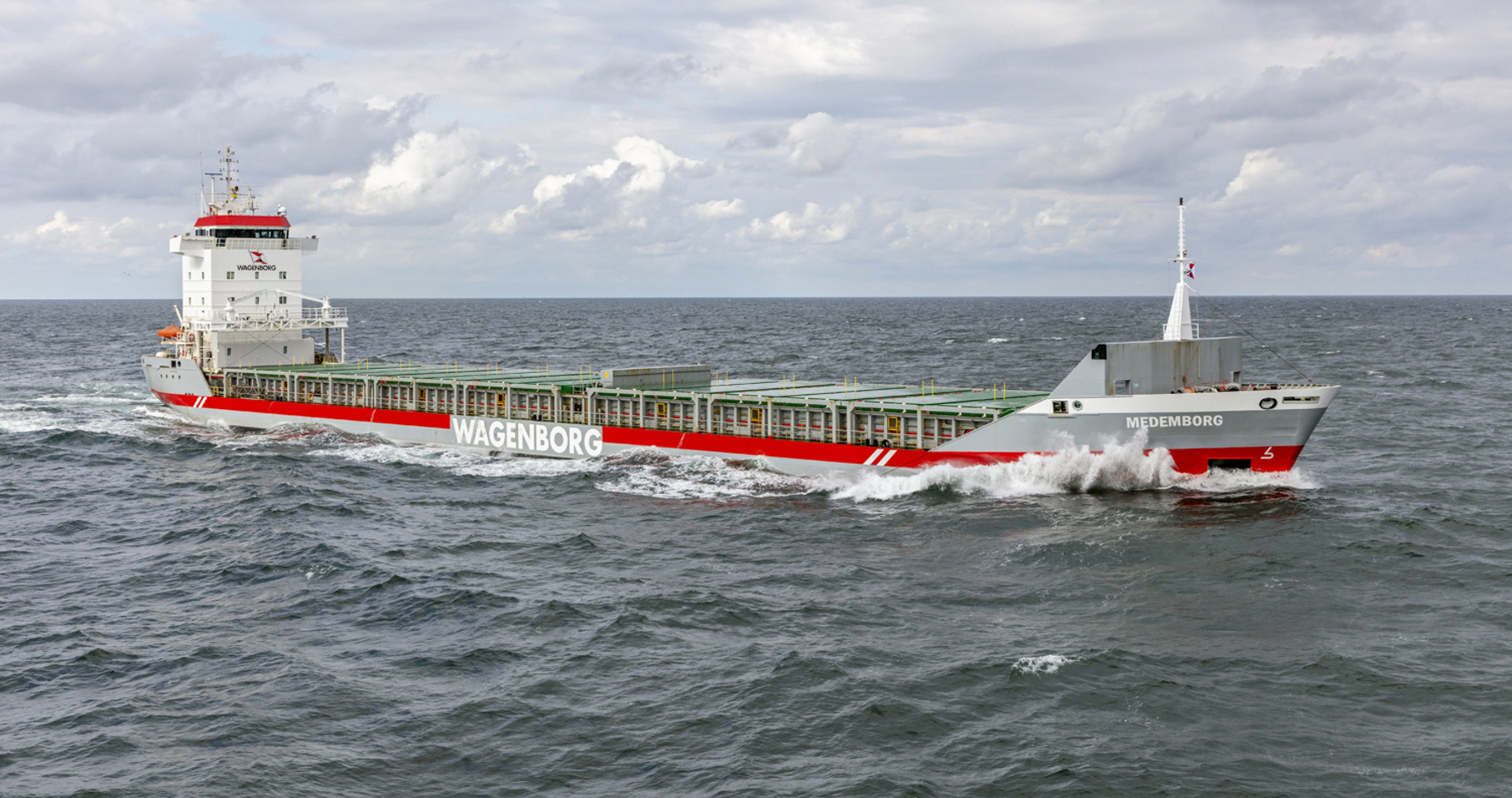

Medemborg

Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A

Length o.a.: 134.5 | Beam: 16.5

Hold capacity (cbft) 454.000

DWCC (t) 8.900

Download brochure Contact your local chartering office

Key features

Vessels in this series 5

Flag Dutch

Trading Area Europe

Open hatch, fully box

Ice class IA

Polar code

Tween decks

Bulk heads Yes

Dehumidifying system

High intake

Lifting capacity

Main particulars

Shipyard

Bijlsma Shipyard B.V.

Classification

Bureau Veritas

Class notations

I + HULL + MACH, General Cargo Ship, Container Ship, Heavy cargo (150 kN/m2), Unrestricted Navigation, + AUT-UMS + SYS-NEQ-1, MON-SHAFT, ICE CLASS 1A

Ice class

Port of Registry

Delfzijl

Flag

Dutch

DWAT

9.769

DWCC Summer

8.900

Length over all

134.5

Breadth over all

16.5

Draft summer

7.4

Draft in ballast

4.294

TPC SSW

Air draft in ballast

33.5

Depth (moulded)

9.8

Distance WL-HC in ballast

7.6

6.540

3.464

Cargo capacities

Total cubic feet capacity

454000 ft3 grain/bale

Holds/hatches

2 holds/ 2 hatches, both types are : Fully openhatch - no understow. Fully box and double skinned (except narrowing fore
/ aft part).

Hold #1

Dimensions

39.2 x 13.5 x 10.86

Luiken

39.2 x 13.5 x 10.86

Hold #2

Dimensions

52.5 x 13.5 x 10.86

Luiken

52.5 x 13.5 x 10.86

Electrical ventilaton

12 Air changes per hour, basis empty holds. Both holds are fitted with dehumidifier system

Tank capacities

HFO

642

MGO

115.8

Water ballast capacity

4294

Fresh Water

66.4

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine

Stork-Wartsila 8L38 5280 0

Bow thruster

650
