Waalborg

Cargo capacities

Holds/hatches

Hold #1

Hold #2

Hold #3

Tank capacities

Speed/consumption

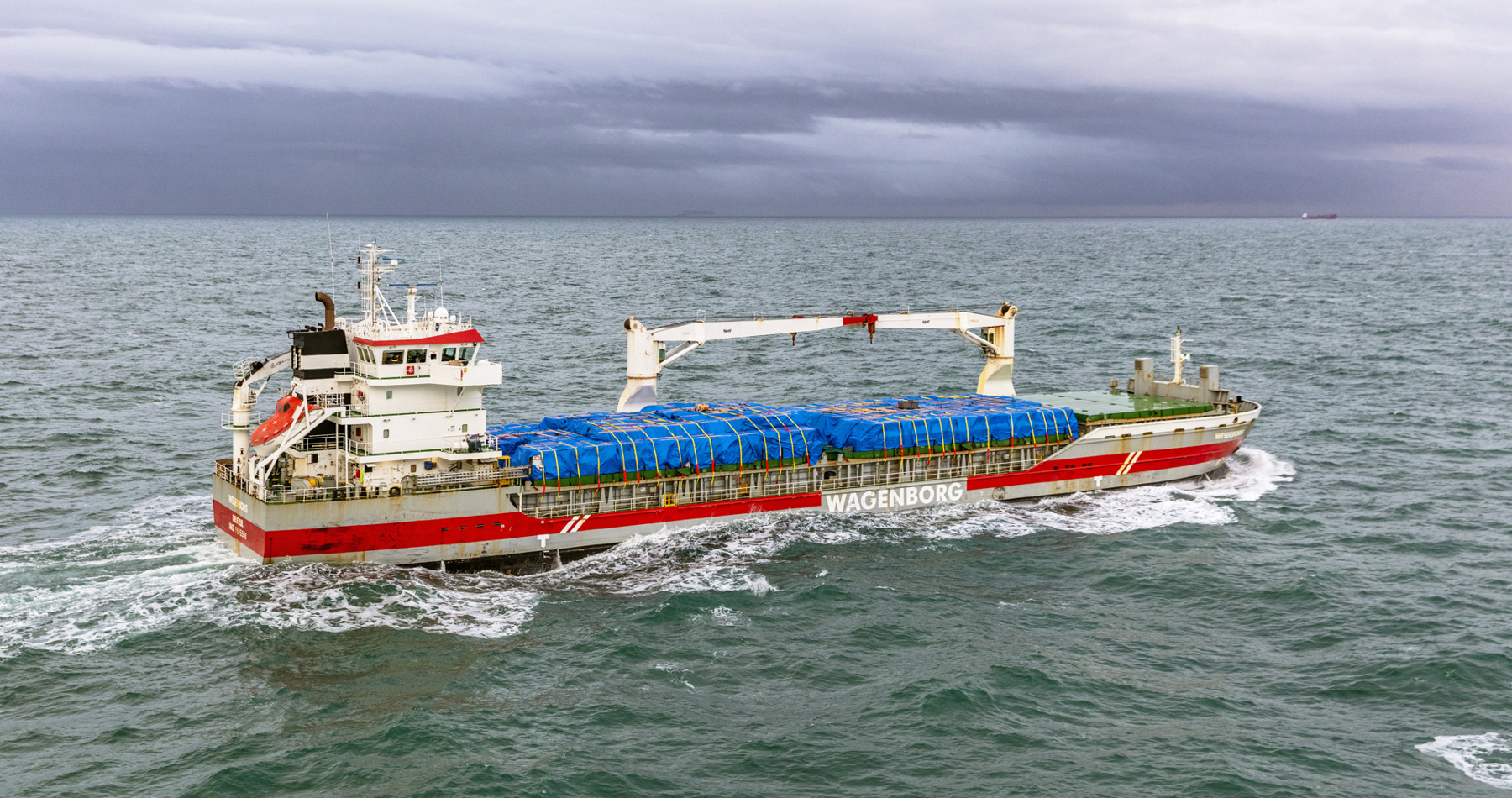

Vessel is equipped with 2NMF cranes about 60 mt SWL each, located port side. Combinable to 120 mt SWL under hook.
Vessel has no treverse /spreaders on board.

Hoisting speed:
SWL 0 - 60 t 0 - 9,0 m/min
SWL 0 - 35 t 0 - 18,0 m/min
SWL 0 - 25 t 0 - 22,0 m/min
SWL 0 - 10 t 0 - 45,0 m/min

Slewing speed 0 - 1,0 U/min
Slewing range 360 degrees unlimited
Specification: 60 t load and 14,0 m outreach at +/- 5 degrees heel and trim +/- 2 degrees

Counter weight for Cranes:
Vessel always needs a counter weight for cranes on starboard side of about 200 - 350 mts by means of ballast water which
is always subject to masters final reconfirmation. In case vessel has to load bulk resp. breakbulk cargoes then vessel
needs an additional quantity of ballast water as counter weight which always has an influence on the cargo quantity/int
ake.

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines
