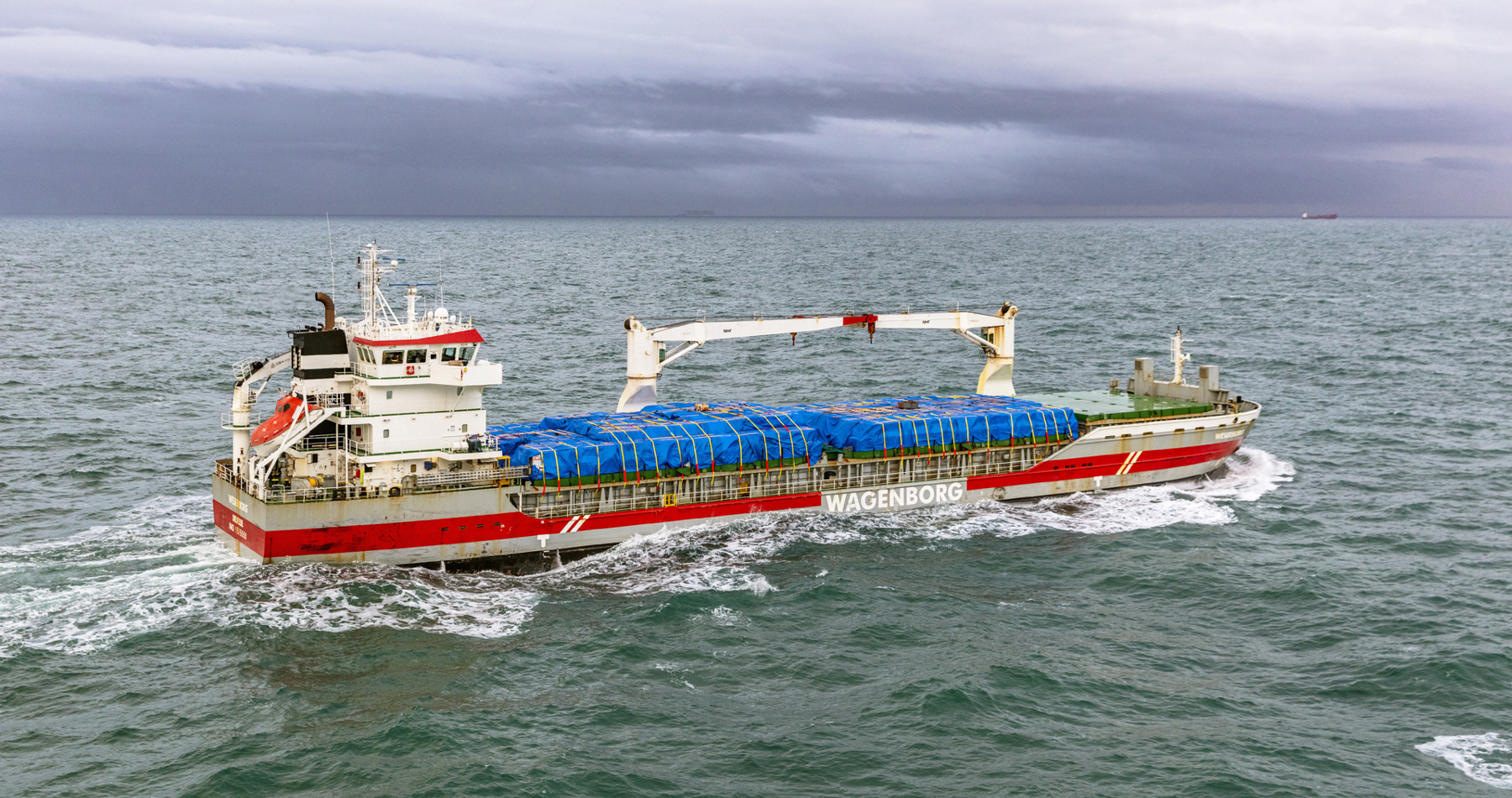

W-Class

Bulk Carrier | 4 Vessel | Finnish /Swedish 1A

Length o.a.: 106.99 | Beam: 18.2

Hold capacity (cbft) 427.944
DWCC (t) 9.050

Key features

Vessels in this series 4
Flag Dutch
Trading Area Global
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads Yes
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Nanjing Huatai Shipyard Co., Ltd.
Classification
Bureau Veritas
Class notations
I HULL MACH, General cargo ship -heavycargo (137 kN/m2) - ewuipped for carriage of containers, Unrestricted navigation, AUT-UMS, ICE CLASS 1A, INWATERSUVEY
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.661
DWCC Summer
9.050
Length over all
106.99
Breadth over all
18.2
Draft summer
8.227
Draft in ballast
2.986
TPC SSW
17.9
Air draft in ballast
31.6
Depth (moulded)
10.5
Distance WL-HC in ballast
8.4
GT
6.668
NT
3.625

Cargo capacities

Total cubic feet capacity
427944 ft3 grain/bale

Holds/hatches

Hold #1

Dimensions
16.1 x 15.2 x 13.2
Luiken
16.1 x 15.2 x 13.2

Hold #2

Dimensions
25.9 x 15.2 x 11.6
Luiken
25.9 x 15.2 x 11.6

Hold #3

Dimensions
25.9 x 15.2 x 11.6
Luiken
25.9 x 15.2 x 11.6

Tank capacities

HFO
510
MGO
100
Water ballast capacity
2986
Fresh Water
126

Speed/consumption

Vessel is equipped with 2 NMF cranes about 60 mt SWL each, located at port side. Combinable to 120 mt SWL under hook.
Vessel has no treverse / spreader on board.

Hoisting speed:
SWL 0 - 60 t 0 - 9,0 m/min
SWL 0 - 35 t 0 - 18,0 m/min
SWL 0 - 25 t 0 - 22,0 m/min
SWL 0 - 10 t 0 - 45,0 m/min

Slewing speed 0 - 1,0 U/min
Slewing range 360 degrees unlimited
Specification: 60 t load and 14,0 m outreach at +/- 5 degrees heel and trim +/- 2 degrees.

Counter weight for cranes:
Vessel always needs a counter weight for cranes on starboard side fo about 200-350 mt by means of ballast water which is
always subject to master's final reconfirmation. In case vessel has to load bulk resp. breakbulk cargoes then vessel ne
eds an additional quantity of ballast water as counter weight which always has an influence on the cargo quantity/ intak
e.

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
MAK 8M32C 3840 600
Propeller
CCP
Bow thruster
450

Related ship series

960x640
IJ-class
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 142.95 | Beam: 18.9
Hold capacity (cbft) 609.001
DWCC (t) 11.000
960x640
V-XL Class
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 132.23 | Beam: 15.87
Hold capacity (cbft) 454.000
DWCC (t) 9.300
960x640

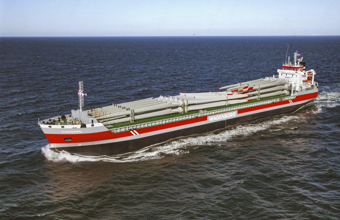

E-Class
