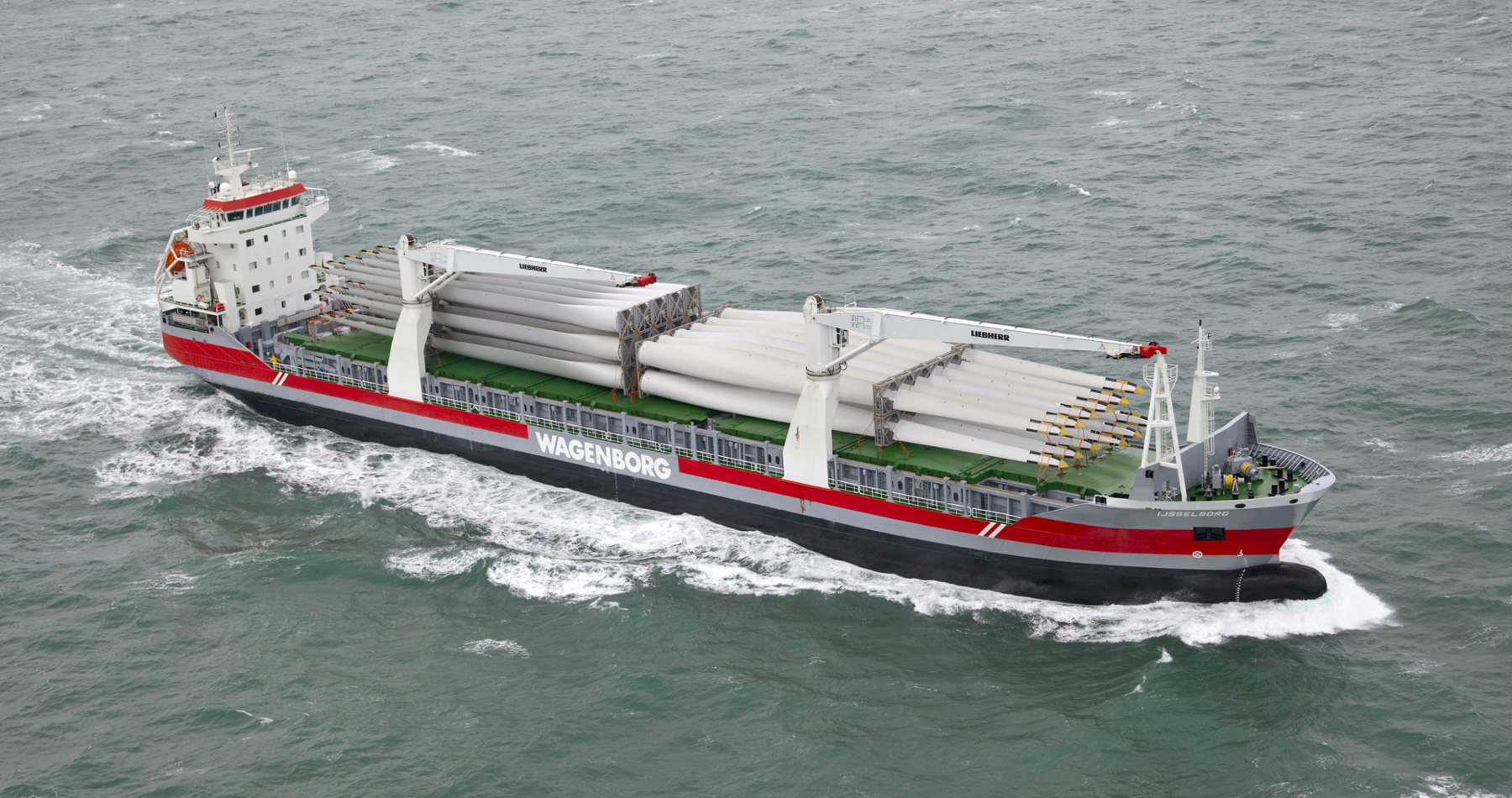

IJ-class

Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A

Length o.a.: 142.95 | Beam: 18.9

Hold capacity (cbft) 609.001
DWCC (t) 11.000

Key features

Vessels in this series 4
Flag Dutch
Trading Area Global
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads Yes
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Damen Shipyards Okean, Ukraine
Classification
Lloyd's Register
Class notations
100A1 Strengtened for Heavy Cargioes, Container Cargoes in Holds and on Upperdeck Hatchcovers, LI Ice Class 1A FS at a maximum draught of 8,117 metres, + LMC, UMS, Descr.Note: Part Higher tensile steel, Shipright (SCM)
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
11.994
DWCC Summer
11.000
Length over all
142.95
Breadth over all
18.9
Draft summer
7.945
Draft in ballast
4.717
TPC SSW
24.2
Air draft in ballast
35
Depth (moulded)
10.95
Distance WL-HC in ballast
11
GT
8.999
NT
4.585

Cargo capacities

Total cubic feet capacity
609001 ft3 grain/bale

Holds/hatches

Hold #1

Dimensions
40.9 x 15.8 x 12.1
Luiken
40.9 x 15.8 x 12.1

Hold #2

Dimensions
55.86 x 15.8 x 12.1
Luiken
55.86 x 15.8 x 12.1

Electrical ventilaton

30 fold air changes per hour basis empty holds.
Both holds fitted with dehumidifier system

Tank capacities

HFO
672
MGO
282
Water ballast capacity
4717
Fresh Water
77

Speed/consumption

2 Cranes fixed on starboard side -
each with a capacity of 80 mts at a reach of upto 14 m.
or capacity of 60 mts at a reach of upto 18 m
or capacity of 40 mts at a reach of upto 30 m
or capacity of 30 mts at a reach of upto 32 m.

The cranes can be combined up to 160 mts but not the entire holds/hatches can be served with this maximum lifting capaci
ty. Free distance between the cranes is abt. 50 meters.

Hoisting speed 80 mts SWL 68 mts SWL 40 mts SWL
Reeving 4 - fall 4 - fall 2 - fall
SWL 12 m per min. 18 m per min. 24 m per min.
Empty Hook 24 m per min. 24 m per min. 29 m per min.

Fuel oil specification

VLFSO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within emission controlled area(s) time charter to be liable for sulphur limit or emission compliance.

Engines

Main engine
MAK 6M43 6000 500
Reduction gear
Flender ratio 4, 136 output 120 rpm
Propeller
CCP Ø 5 meters
Bow thruster
730

Related ship series

960x640

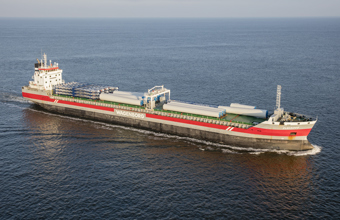

E-XL Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 144.56 | Beam: 15.87
Hold capacity (cbft) 523.237
DWCC (t) 10.900
960x640

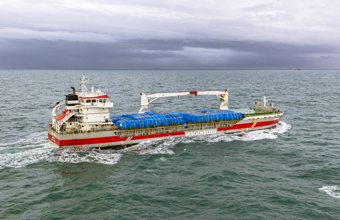

W-Class
