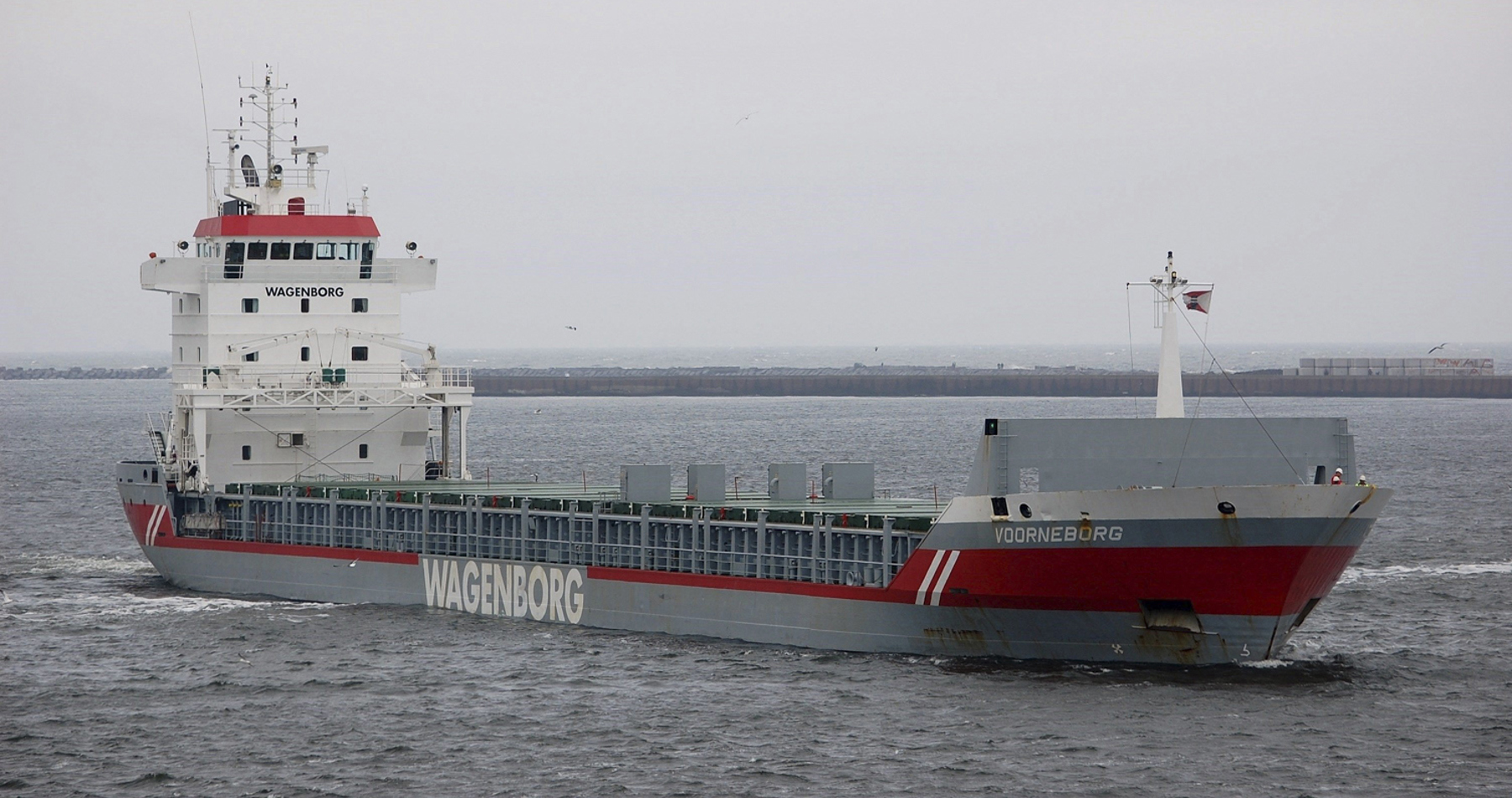

Voorneborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 132.23 | Beam: 15.87
Hold capacity (cbft)
454.000
DWCC (t)
8.800
Key features
Vessels in this series
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Bodewes Volharding
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo(Heavy cargo (15t /m2) -Nonhomload (20t/m2)) -nonhomload: Container ship Unrestricted navigation Ice class IA, +AUT-UMS, SYS-NEQ-1, MON-SHAFT, LASHING
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.567
DWCC Summer
8.800
Length over all
132.23
Breadth over all
15.87
Draft summer
7.5
Draft in ballast
3.178
TPC SSW
18
Air draft in ballast
33.5
Depth (moulded)
9.65
Distance WL-HC in ballast
7.7
GT
6.130
NT
3.608
Cargo capacities
Total cubic feet capacity
454000 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches. Both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square - excep
t box structures due to vessel's outer shape.
Hold #1
Dimensions
39.96 x 13.2 x 10.84
Luiken
39.96 x 13.2 x 10.84
Hold #2
Dimensions
52.54 x 13.2 x 10.84
Luiken
52.54 x 13.2 x 10.84
Electrical ventilaton
12 air changes per hour electrical hold ventilation.
Both holds fitted with dehumidifier system.
Tank capacities
HFO
464.7
MGO
47.2
Water ballast capacity
3178
Fresh Water
60
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wartsila 6L38 3960 600
Bow thruster
500
Vessels in this series
- Vaasaborg 2000
- Vechtborg 1998
- Vlistborg 1999
- Voorneborg 1999
