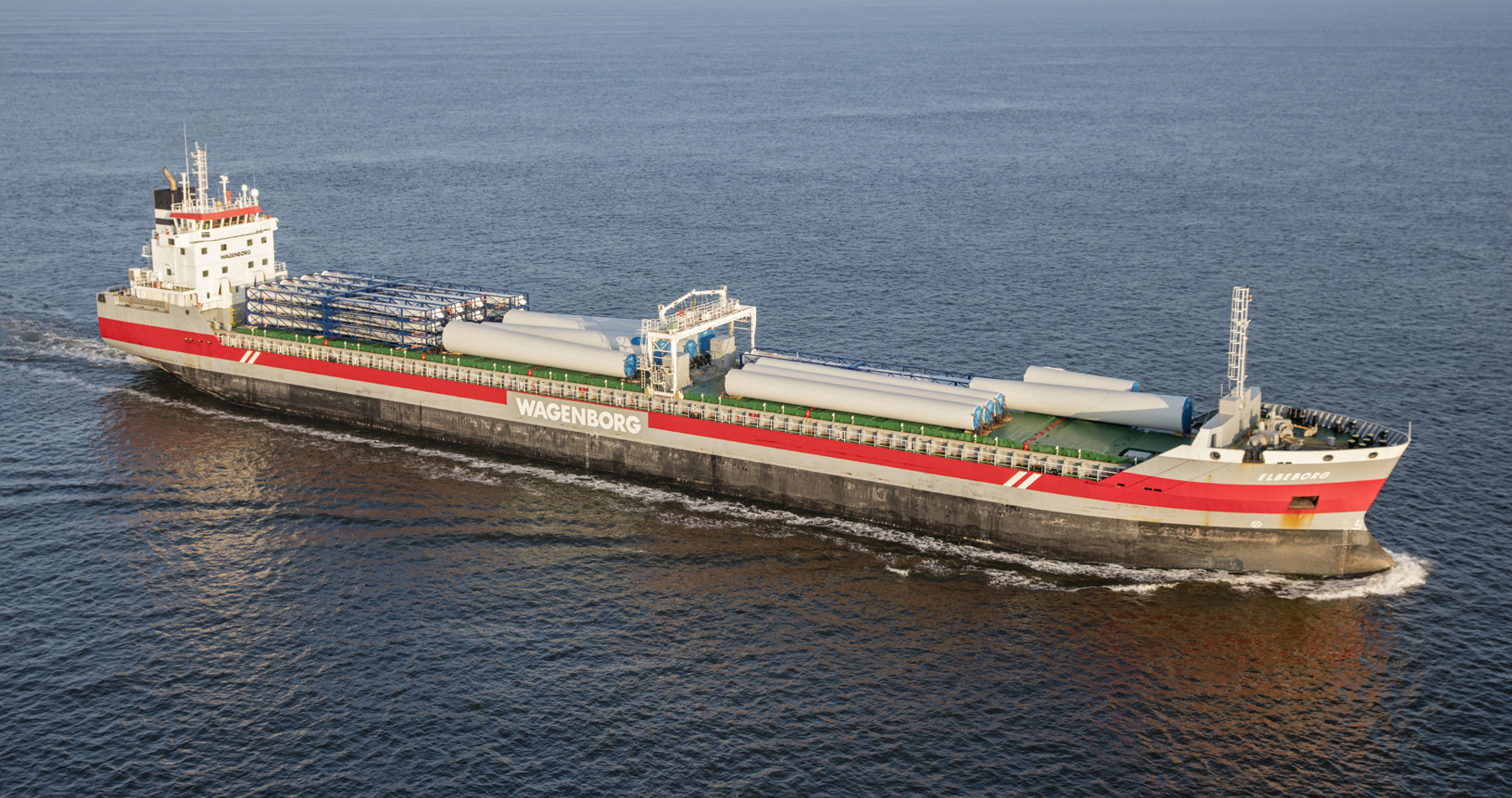

E-XL Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 144.56 | Beam: 15.87
Hold capacity (cbft)
523.237
DWCC (t)
10.900
Key features
Vessels in this series
3
Flag
Dutch
Trading Area
Europe
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Niestern Sander
Classification
Bureau Veritas
Class notations
1 HULL+MACH, General cargo ship - heavycargo ([inner bottom: 150 kN/m2]); -occasional dry bulk cargo Container ship Unrestricted navigation, + AUT-UMS, SYS-NEQ, MON-SHAFT, ICE CLASS IA, INWATERSURVEY
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
11.950
DWCC Summer
10.900
Length over all
144.56
Breadth over all
15.87
Draft summer
8
Draft in ballast
4.450
TPC SSW
20
Air draft in ballast
30.35
Depth (moulded)
11.15
Distance WL-HC in ballast
9.25
GT
7.680
NT
3.846
Cargo capacities
Total cubic feet capacity
523237 ft3 grain/bale
Holds/hatches
2 Holds/ 2 Hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box s
tructures in fore and aft part due to vessel's outer shape.
Hold #1
Dimensions
48.1 x 13.2 x 11.42
Luiken
48.1 x 13.2 x 11.42
Hold #2
Dimensions
54.76 x 13.2 x 11.42
Luiken
54.76 x 13.2 x 11.42
Electrical ventilaton
Holds are equipped with electical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with deh
umidifier sytem.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.
Tank capacities
HFO
876
MGO
86
Water ballast capacity
4450
Fresh Water
56
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 8M32C 4000 750
Reduction gear
1 Flender
Propeller
Single CCP, 4 blades, 4.200 mm
Bow thruster
750
