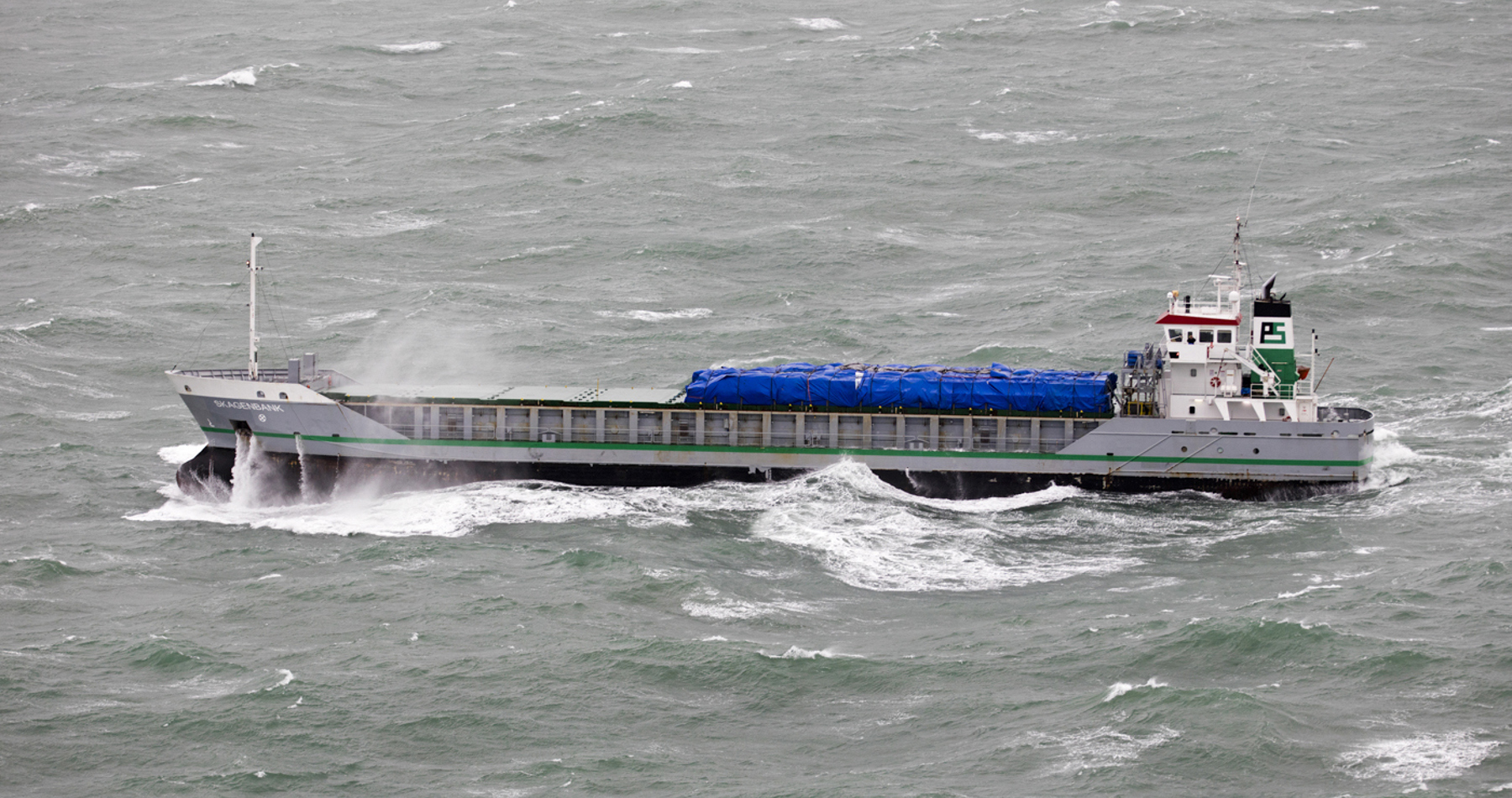

Skagenbank

Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A

Length o.a.: 89.78 | Beam: 14

Hold capacity (cbft) 211.000

DWCC (t) 4.300

Download brochure Contact your local chartering office

Key features

Vessels in this series 3

Flag Dutch

Trading Area Europe

Open hatch, fully box

Ice class IA

Polar code

Tween decks

Bulk heads Yes

Dehumidifying system

High intake

Lifting capacity

Main particulars

Shipyard

Scheepswerf Ferus Smit B.V.

Classification

Bureau Veritas

Class notations

1 + HULL + MACH, General cargo ship - heavycargo (147 kN/m2 on tanktop); Container ship, Unrestricted navigation, +AUT-UMSA, Ice Class1A

Ice class

Port of Registry

Delfzijl

Flag

Dutch

DWAT

4.500

DWCC Summer

4.300

Length over all

89.78

Breadth over all

Draft summer

5.96

Draft in ballast

1.828

TPC SSW

Air draft in ballast

25.9

Depth (moulded)

7.5

Distance WL-HC in ballast

2.999

1.643

Cargo capacities

Total cubic feet capacity

211000 ft3 grain/bale

Holds/hatches

1 Hold/ 1 Hatch, both types are: fully open hatch - no understow. Fully box and double skinned.

Vessel is equipped with Cementholes.
Hatches with cement holes : 1, 3, 5, 7 and 9.

Ø of holes are 47 cm each.

Hold #1

Dimensions

59.5 x 11.5 x 9

Luiken

59.5 x 11.5 x 9

Electrical ventilaton

Abt. 6 air changes per hour basis empty hold.
Hold is fitted with dehumidifier system.

Tank capacities

HFO

MGO

376

Water ballast capacity

1828

Fresh Water

Fuel oil specification

MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine

MAK 8M25 2640 750

Bow thruster

275
