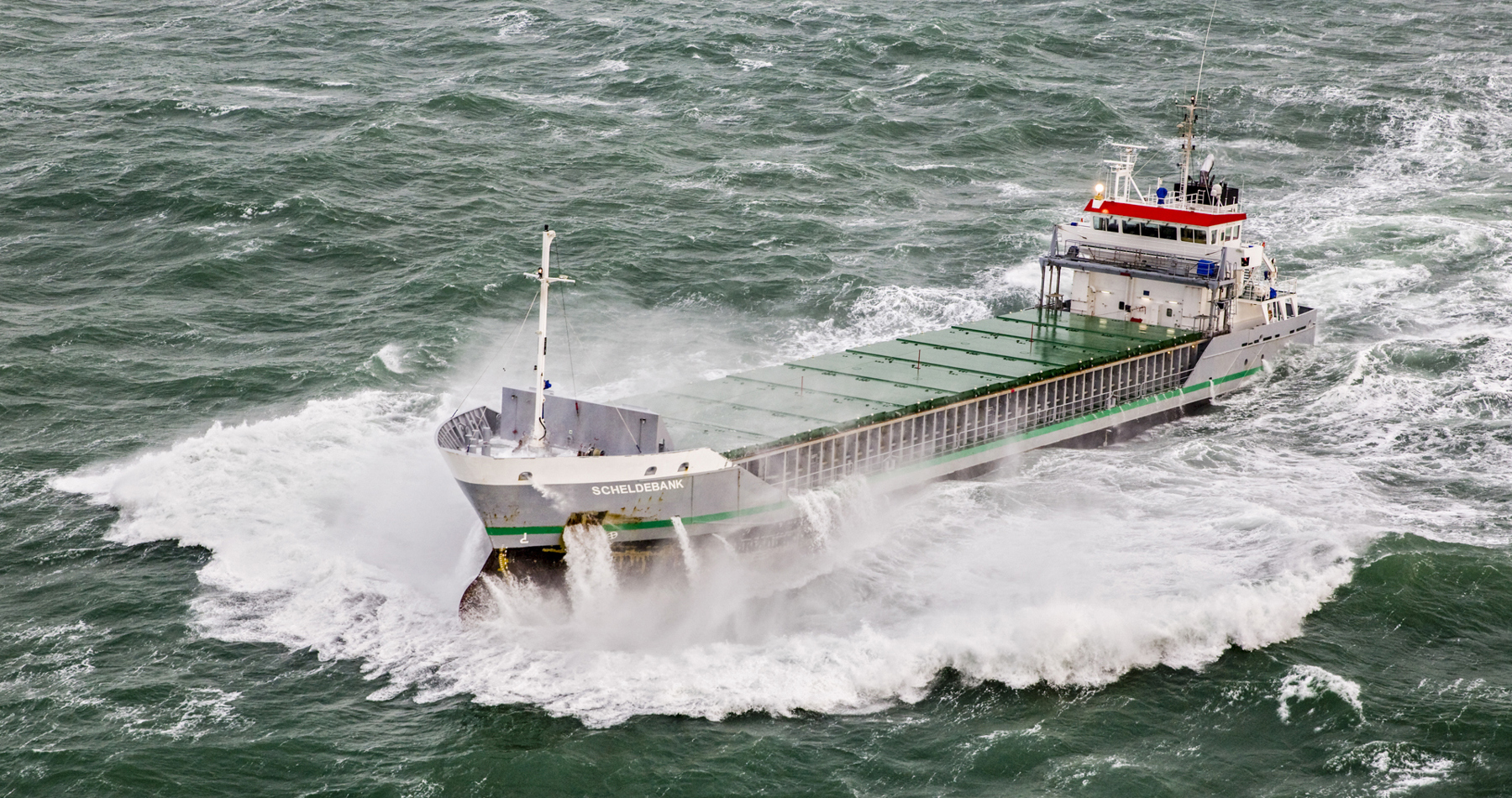

Ferus 4.300
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 89.78 | Beam: 14
Hold capacity (cbft)
211.000
DWCC (t)
4.300
Key features
Vessels in this series
3
Flag
Dutch
Trading Area
Europe
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Ferus Smit B.V.
Classification
Bureau Veritas
Class notations
1 + HULL + MACH, General cargo ship - heavycargo (147 kN/m2 on tanktop); Container ship, Unrestricted navigation, +AUT-UMSA, Ice Class1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
4.500
DWCC Summer
4.300
Length over all
89.78
Breadth over all
14
Draft summer
5.96
Draft in ballast
1.828
TPC SSW
0
Air draft in ballast
25.9
Depth (moulded)
7.5
Distance WL-HC in ballast
6
GT
2.999
NT
1.643
Cargo capacities
Total cubic feet capacity
211000 ft3 grain/bale
Holds/hatches
1 Hold/ 1 Hatch, both types are: fully open hatch - no understow. Fully box and double skinned.
Vessel is equipped with Cementholes.
Hatches with cement holes : 1, 3, 5, 7 and 9.
Ø of holes are 47 cm each.
Hold #1
Dimensions
59.5 x 11.5 x 9
Luiken
59.5 x 11.5 x 9
Electrical ventilaton
Abt. 6 air changes per hour basis empty hold.
Hold is fitted with dehumidifier system.
Tank capacities
HFO
0
MGO
376
Water ballast capacity
1828
Fresh Water
45
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 8M25 2640 750
Bow thruster
275
Vessels in this series
- Scheldebank 2007
- Skagenbank 2005
- Steenbank 2005
Related ship series

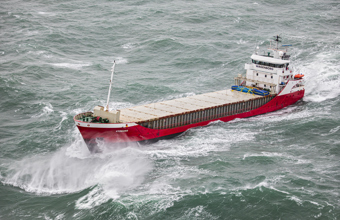

Kompass Class
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 89.25 | Beam: 13.3
Hold capacity (cbft)
201.063
DWCC (t)
3.900

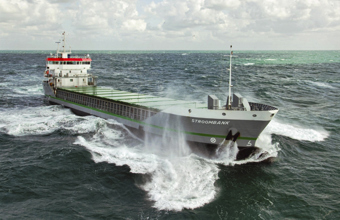

Bijlsma trader
Multipurpose Dry Cargo Carrier | 3 Vessel | None Ice Class
Length o.a.: 89.95 | Beam: 14.4
Hold capacity (cbft)
214.000
DWCC (t)
4.250

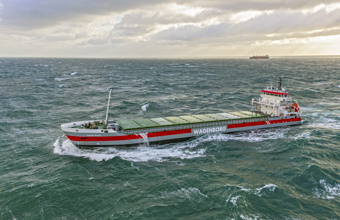

G-class
General Cargo | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 99.99 | Beam: 13.35
Hold capacity (cbft)
234.000
DWCC (t)
4.850
