Bijlsma Trader2

Bijlsma trader

Multipurpose Dry Cargo Carrier | 3 Vessel | None Ice Class
Length o.a.: 89.95 | Beam: 14.4
Hold capacity (cbft)
214.000
DWCC (t)
4.250
Download brochure Contact your local chartering office

Key features

Number of vessels 3
Flag Dutch
Trading Area Europe
Open hatch, fully box
Ice class NO ICE
Polar code
Tween decks
Bulk heads Yes
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Bijlsma Shipyard B.V.
Classification
Bureau Veritas
Class notations
+ HULL + MACH, General cargo ship; Container ship heavy cargo - 147 kN/m2, Unrestricted navigation + AUT-UMS, STRENGTHBOTTOM, INWATERSURVEY
Ice class
NO ICE
Port of Registry
Delfzijl
Flag
Dutch
DWAT
4.541
DWCC Summer
4.250
Length over all
89.95
Breadth over all
14.4
Draft summer
5.83
Draft in ballast
1.710
TPC SSW
11.56
Air draft in ballast
21.5
Depth (moulded)
7.35
Distance WL-HC in ballast
6
GT
2.999
NT
1.662

Cargo capacities

Total cubic feet capacity
214000 ft3 grain/bale

Holds/hatches

1 hold / 1 hatch type. Both types are: fully open hatch - no understow, fully box and double skinned.


Cement holes
Position of cement holes in the following hatches on Starboard site:
Hatch # 2 and # 6 1,22 m of the centreline, including ventilation hole at 4,51 m from centreline.
Position of cement holes in de following hatches on Backboard site:
Hatch # 4 and # 8 1,22 m of the centreline, including ventilation hole at 4,51 m from centreline.

Cement holes by cm
outside 60,0 cm
Inside 47,5 cm

Each Cement hole has 12 bolts

Hold #1

Dimensions
63 x 11.6 x 8.35
Luiken
63 x 11.6 x 8.35

Electrical ventilaton

Abt. 6 air changes per hour basis empty hold.
Hold is fitted with dehumidifier system.

Tank capacities

HFO
0
MGO
462
Water ballast capacity
1710
Fresh Water
49

Fuel oil specification

MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
Wartsila 6L26A 1860 900
Propeller
pitch - 4 blades
Bow thruster
250

Check the availability of this ship type
Call us +31 596 636 911
Request open positions

Vessels in this series

Related ship series

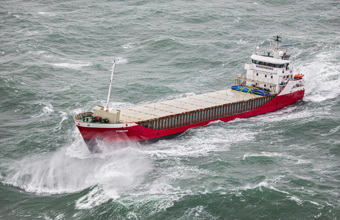

Compas
Kompass Class
4 Vessel
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 89.25 | Beam: 13.3
Hold capacity (cbft) 201.063
DWCC (t) 3.900
More information
Contact your local chartering office
G Class
G-class
4 Vessel
General Cargo | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 99.99 | Beam: 13.35
Hold capacity (cbft) 234.000
DWCC (t) 4.850
More information
Contact your local chartering office

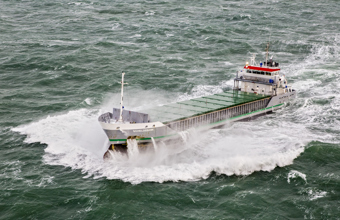

Fs4300
