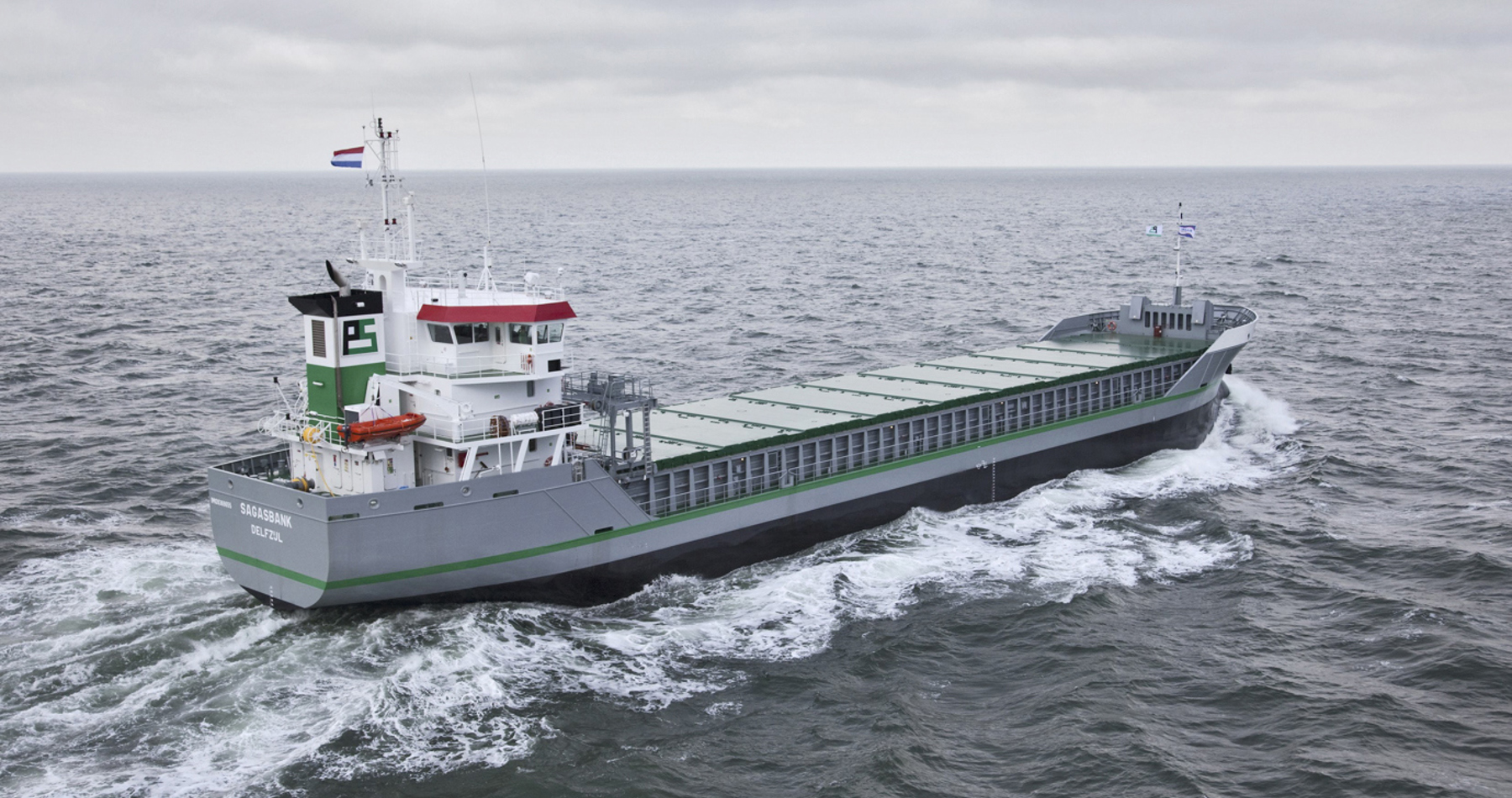

Sagasbank

Cargo capacities

Holds/hatches

1 Hold / 1 Hatch. Both types are : Fully open hatch - no understow. Fully box and double skinned.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.

Cement holes
Position of cement holes in the following hatches on Starboard site:
Hatch # 2 and # 6 1,22 m of the centreline, including ventilation hole at 4,51 m from centreline.
Position of cement holes in de following hatches on Backboard site:
Hatch # 4 and # 8 1,22 m of the centreline, including ventilation hole at 4,51 m from centreline.

Cement holes by cm
outside 60,0 cm
Inside 47,5 cm

Each Cement hole has 12 bolts

Hold #1

Electrical ventilaton

Abt. 6 air changes per hour basis empty holds. Hold is fitted with dehumidifier system.

Tank capacities

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines
