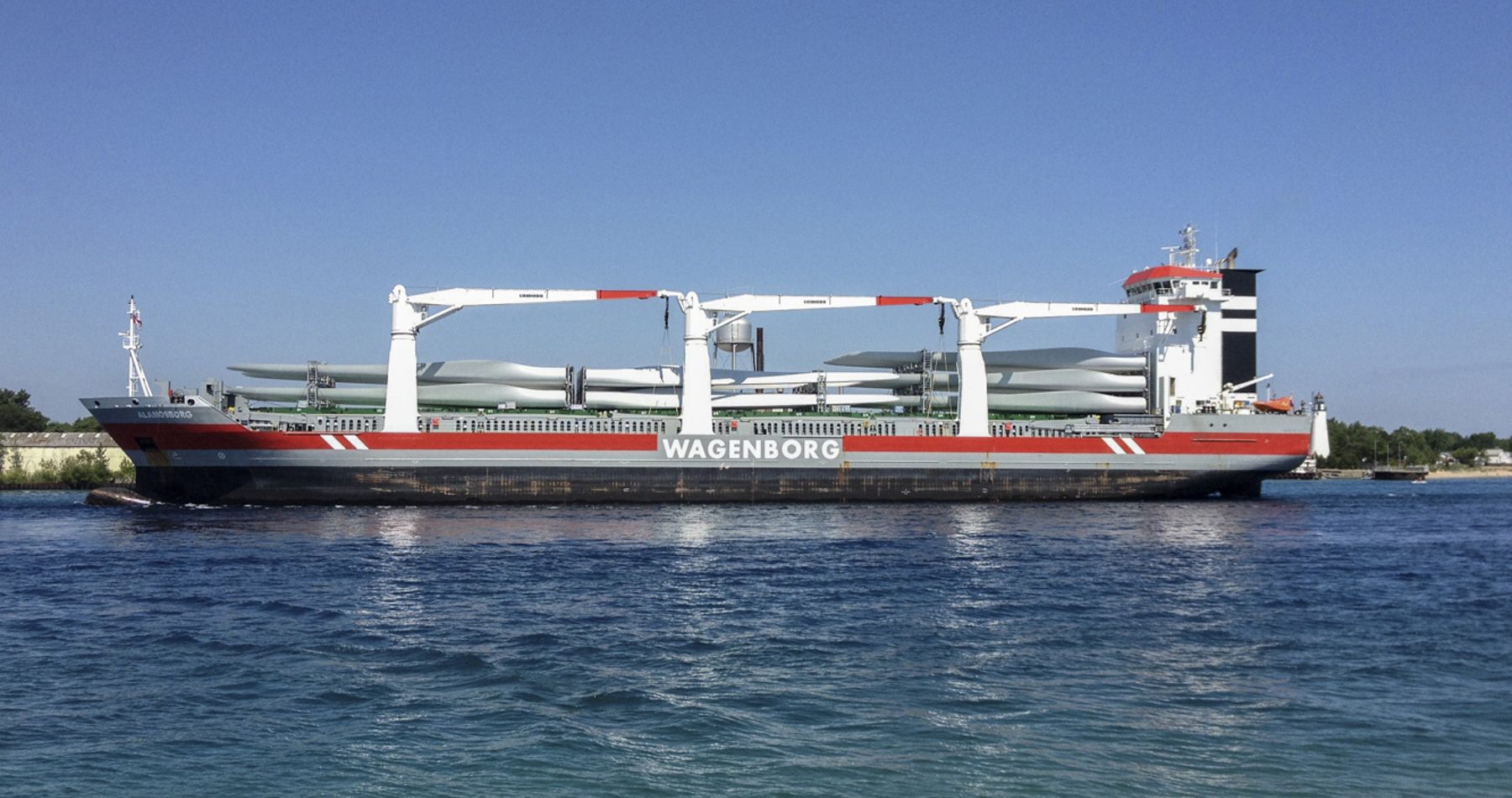

Alamosborg

Cargo capacities

Holds/hatches

2 Holds / 2 Hatches, both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square - excep
t box structure due to vessel's outer shape.
Vessel is equipped with MacGregor navire hydraulic steel pontoon hatches.

Hold #1

Hold #2

Electrical ventilaton

12 air changes per hour basis empty holds. Both holds fitted with dehumidifier system

Tank capacities

Speed/consumption

3 cranes fixed on portside - each with a capacity of 60 mts at a reach of upto 16m.
or a capacity of 40 mts at a reach of upto 28m.

The cranes can be combined to up to 120 mts but not the entire holds/ hatches can be served with this maximum lifting ca
pacity. Free distance between the cranes is 31 meters. Vessel fitted with lifting beam (weight about 10 tons).

Hoisting speed 60 mts SWL 40 mts SWL
Reeving 3 - fall 2 - fall
SWL 0 - 14 m per min. 0 - 22 m per min.
Empty hook 0 - 23 m per min. 0 - 35 m per min.

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines
