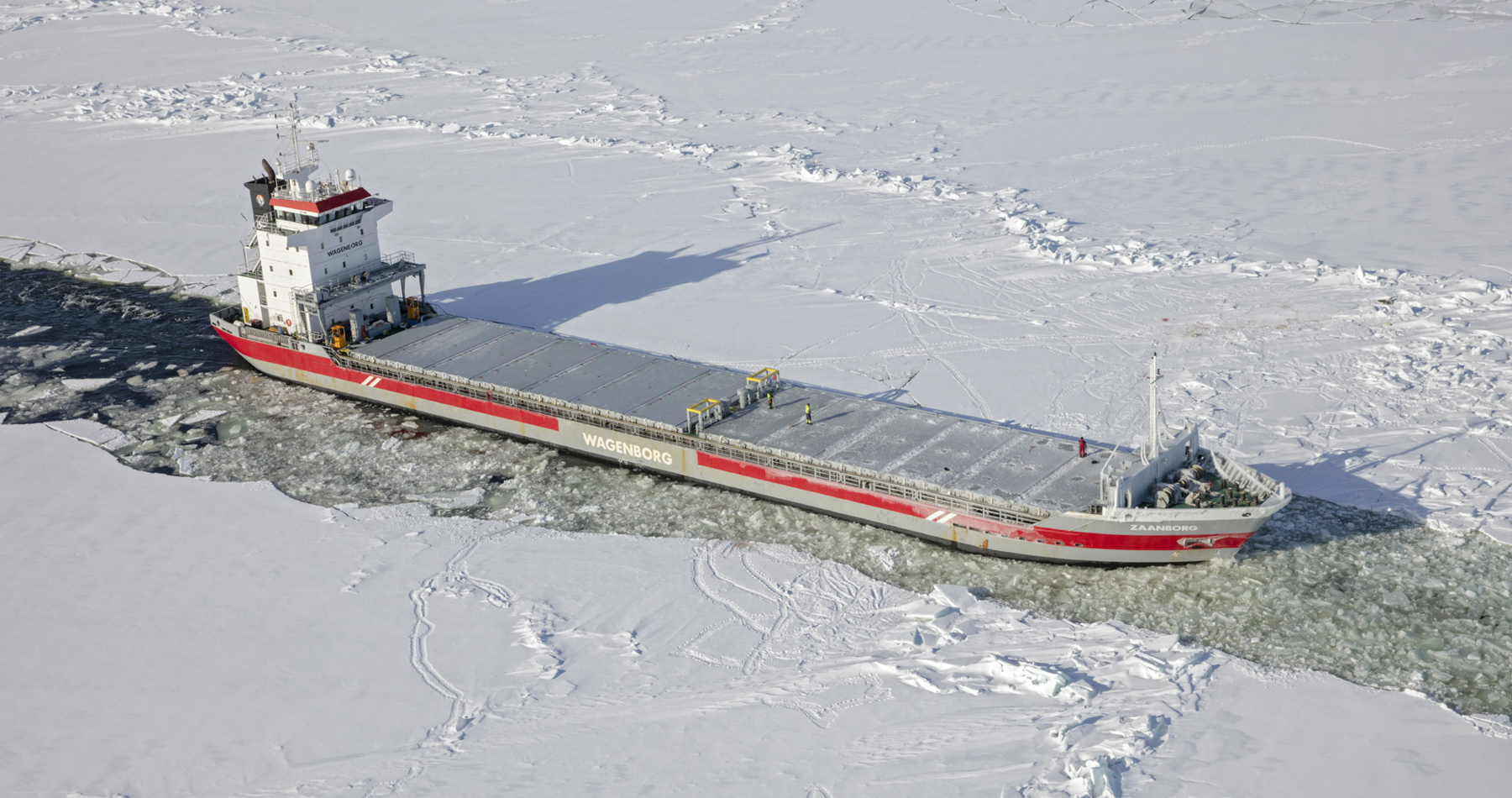

Z-Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 118.55 | Beam: 15.2
Hold capacity (cbft)
329.633
DWCC (t)
7.500
Key features
Vessels in this series
3
Flag
Dutch
Trading Area
Europe
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Bodewes Scheepswerven B.V.
Classification
Lloyd's Register
Class notations
100 A1 STRENGTHENED FOR HEAVY CARGOES; CONTAINER CARGOES IN HOLDS AND ON UPPERDECK HATCHCOVERS;ICE CLASS 1A (FINNISH-SWEDISH ICE CLASS RUELS 1985), + LMC, UMS
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
7.901
DWCC Summer
7.500
Length over all
118.55
Breadth over all
15.2
Draft summer
7.062
Draft in ballast
3.376
TPC SSW
16.41
Air draft in ballast
37.4
Depth (moulded)
8.45
Distance WL-HC in ballast
7.2
GT
4.938
NT
2.631
Cargo capacities
Total cubic feet capacity
329633 ft3 grain/bale
Holds/hatches
2 Holds/ 2 Hatches, both types are: Fully open hatch - no understow. Fully box and double skinned (exeption narrowing fo
re/aft. part)
Hold #1
Dimensions
39 x 12.65 x 9.33
Luiken
39 x 12.65 x 9.33
Hold #2
Dimensions
42.8 x 12.65 x 9.33
Luiken
42.8 x 12.65 x 9.33
Electrical ventilaton
Hold ventilation abt. 6 air changes per hour, basis empty hold. Holds are fitted with dehumidifier system.
Tank capacities
HFO
550
MGO
80
Water ballast capacity
3376
Fresh Water
50
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 8 M 32 3840 600
Bow thruster
300
Related ship series
LL-Class
Multipurpose Dry Cargo Carrier | 3 Vessel | 1B
Length o.a.: 108.24 | Beam: 18.2
Hold capacity (cbft)
360.202
DWCC (t)
7.700

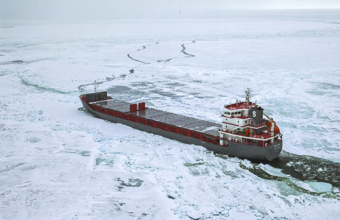

Ameland - Skylge
