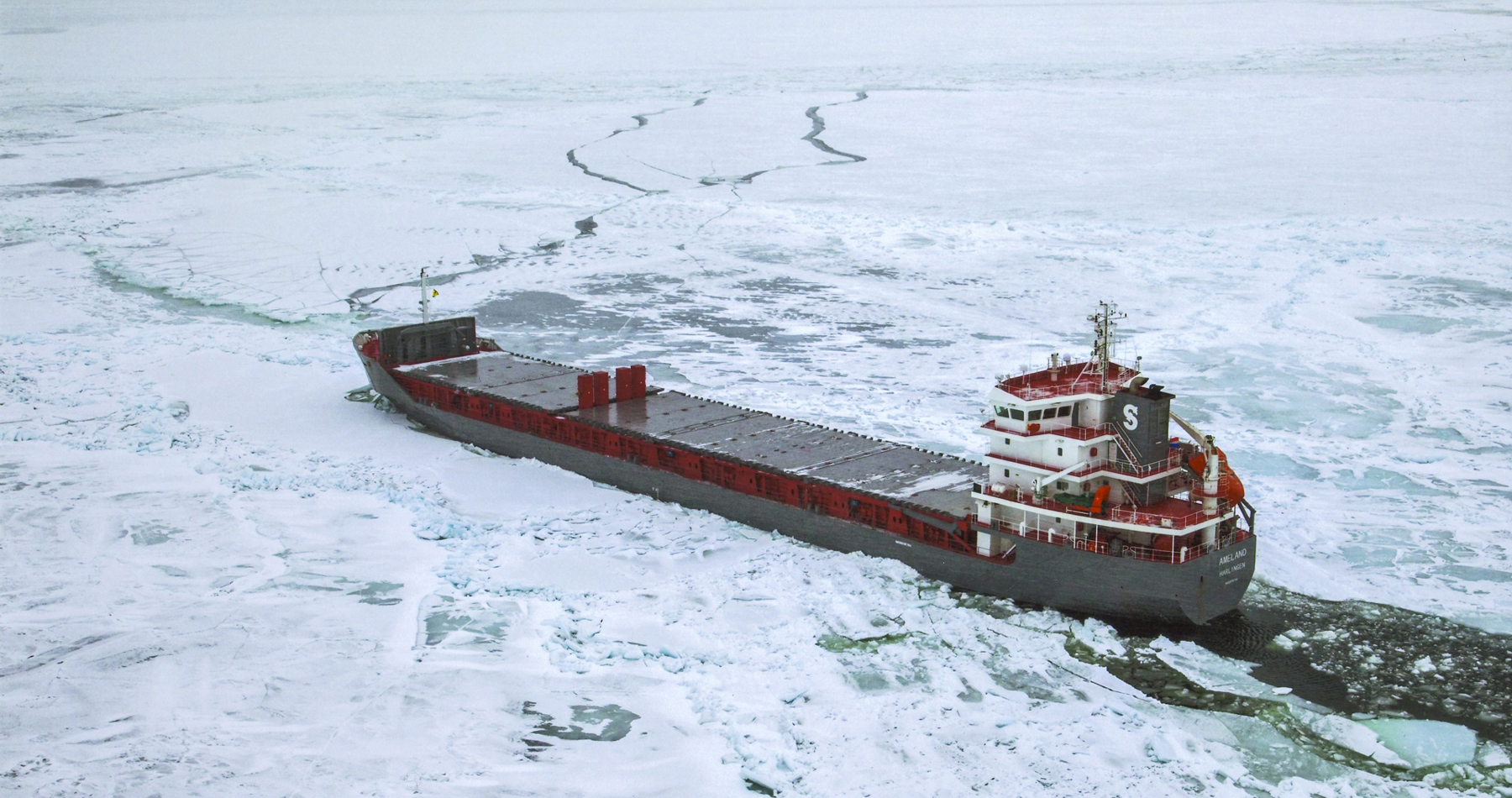

Ameland - Skylge
Multipurpose Dry Cargo Carrier | 2 Vessel | Finnish /Swedish 1A
Length o.a.: 122.1 | Beam: 16.5
Hold capacity (cbft)
380.940
DWCC (t)
7.050
Key features
Vessels in this series
2
Flag
Dutch
Trading Area
Europe
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Hongxin Shipbuilding Ltd.
Classification
Bureau Veritas
Class notations
I HULL MACH General cargo ship -equipped for carriage of containers - heavycargo (147 kN/m2) Unrestricted navigation AUT-UMS, ICE CLASS IA, SDS
Ice class
IA
Port of Registry
Harlingen
Flag
Dutch
DWAT
7.641
DWCC Summer
7.050
Length over all
122.1
Breadth over all
16.5
Draft summer
7.2
Draft in ballast
3.300
TPC SSW
17.6
Air draft in ballast
27
Depth (moulded)
10
Distance WL-HC in ballast
8
GT
6.046
NT
2.959
Cargo capacities
Total cubic feet capacity
380940 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches: Both types are fully open hatch - No understow. Fully box and double skinned (ext. narrowing fore /
aft part).
Hold #1
Dimensions
27.3 x 13.5 x 11
Luiken
27.3 x 13.5 x 11
Hold #2
Dimensions
50.4 x 13.5 x 11
Luiken
50.4 x 13.5 x 11
Electrical ventilaton
Hold ventilation abt. TBN air changes per hour, empty holds. Both holds fitted with dehumidifier system.
Tank capacities
HFO
500
MGO
82.5
Water ballast capacity
3300
Fresh Water
68
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 8M32C 4000 600
Propeller
Schottel CCP
Bow thruster
450
