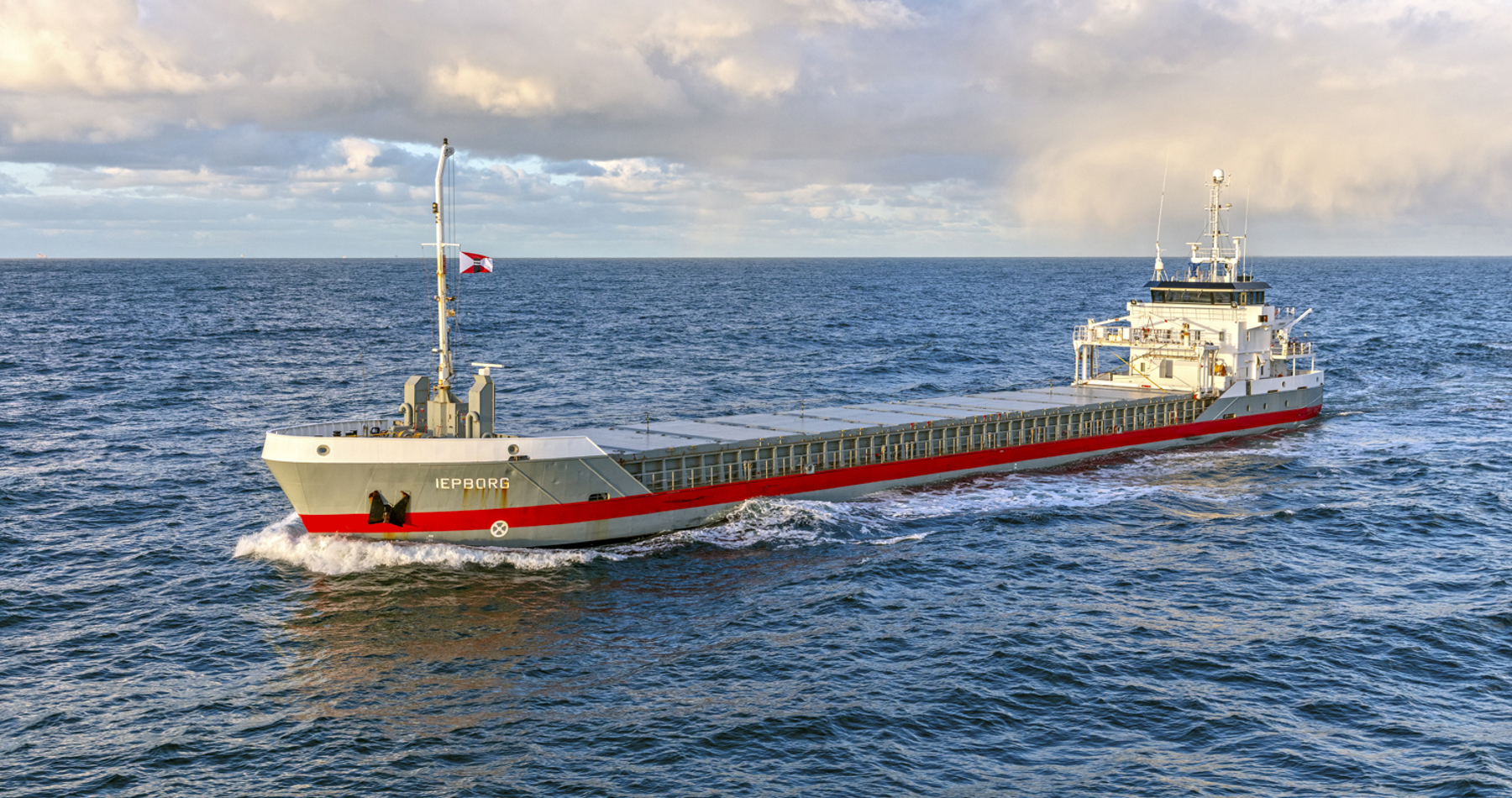

Iepborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish Ice class II
Length o.a.: 88.97 | Beam: 11.8
Hold capacity (cbft)
158.985
DWCC (t)
3.458
Key features
Vessels in this series
8
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
FSII
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Bijlsma Shipyard B.V.
Classification
Bureau Veritas
Class notations
I HULL MACH, Container ship - General cargo ship -heavycargo (118kN/m2 on tanktop, Unrestricted navigation, AUT-UMS, STRENGTHBOTTOM
Ice class
FSII
Port of Registry
Delfzijl
Flag
Dutch
DWAT
3.608
DWCC Summer
3.458
Length over all
88.97
Breadth over all
11.8
Draft summer
5.4
Draft in ballast
1.282
TPC SSW
9.91
Air draft in ballast
24.5
Depth (moulded)
6.9
Distance WL-HC in ballast
5.5
GT
2.281
NT
1.229
Cargo capacities
Total cubic feet capacity
158985 ft3 grain/bale
Holds/hatches
Holds/ Hatches. 1 Hold / 1 Hatch. Fully open hatch - no understow. Fully box and double skinned (except narrowing fore
/aft. part)
Hold #1
Dimensions
63 x 9.6 x 7.5
Luiken
63 x 9.6 x 7.5
Electrical ventilaton
Hold ventilation about 9 air changes per hour, basis empty hold. Hold is fitted with dehumidifier system.
Tank capacities
HFO
225
MGO
35
Water ballast capacity
1282
Fresh Water
44
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wartsila 8L20 1440 1500
Propeller
pitch propeller
Bow thruster
285
