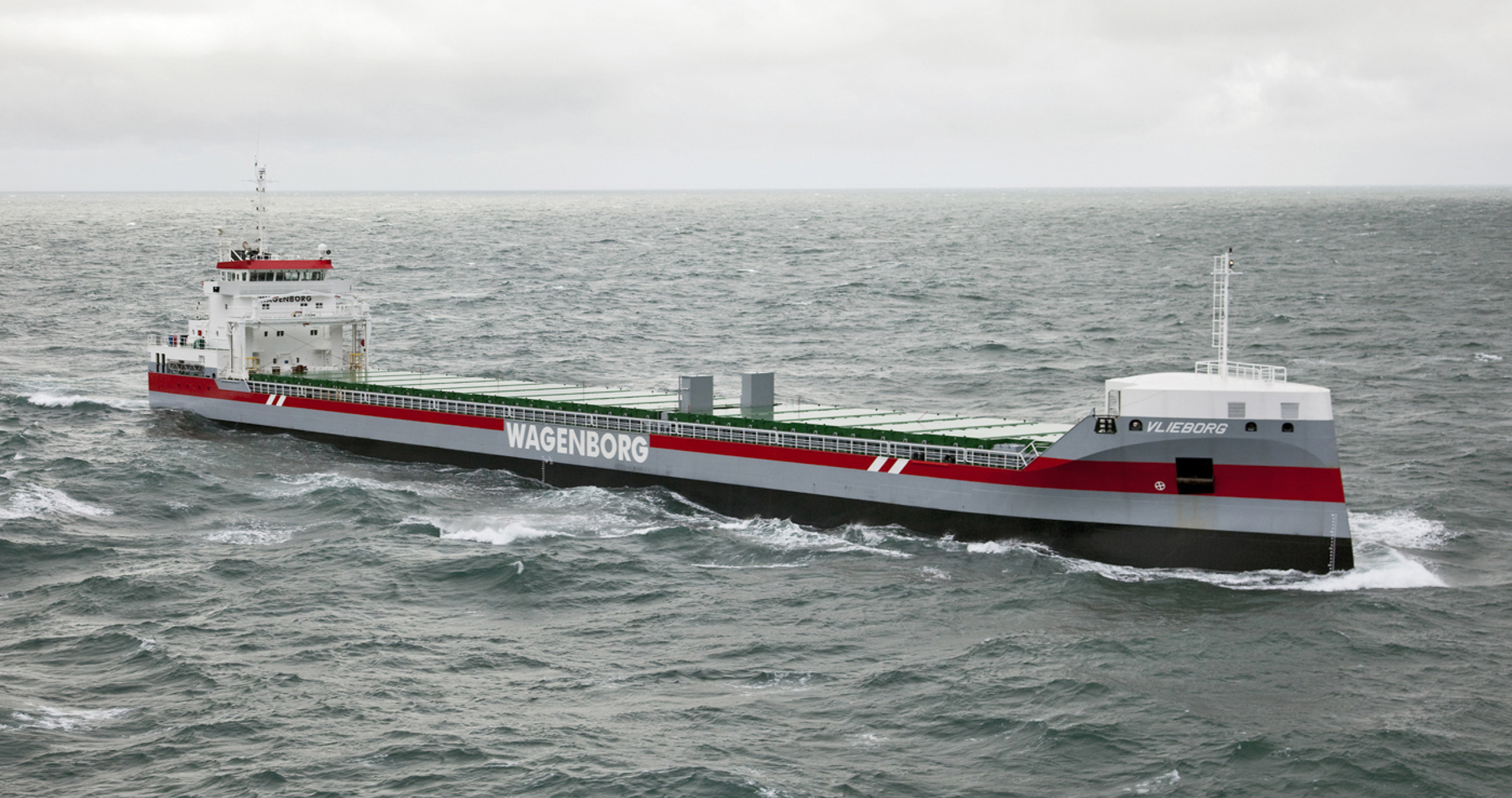

Vlieborg

Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A

Length o.a.: 142.65 | Beam: 15.87

Hold capacity (cbft) 503.821
DWCC (t) 11.300

Key features

Vessels in this series 3
Flag Dutch
Trading Area
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Ferus Smit B.V.
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo (147 kN/m2) Container ship Unrestricted navigation + AUT-UMS ICE CLASS IA
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
11.850
DWCC Summer
11.300
Length over all
142.65
Breadth over all
15.87
Draft summer
7.729
Draft in ballast
5.300
TPC SSW
21.4
Air draft in ballast
30.6
Depth (moulded)
10.78
Distance WL-HC in ballast
7.9
GT
7.367
NT
3.688

Cargo capacities

Total cubic feet capacity
503821 ft3 grain/bale

Holds/hatches

2 Holds/ 2 Hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box s
tructures in fore and aft part due to vessel's outer shape.

Hold #1

Dimensions
41 x 13.2 x 10.78
Luiken
41 x 13.2 x 10.78

Hold #2

Dimensions
63.63 x 13.2 x 10.78
Luiken
63.63 x 13.2 x 10.78

Electrical ventilaton

Holds are equipped with electrical ventilation, 8 air changes per hour basis empty holds, both holds are fitted with deh
umidifier system.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.

Tank capacities

HFO
530
MGO
39.8
Water ballast capacity
5300
Fresh Water
53

Speed/consumption

Not available

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
MAK 9M25C 2970 750
Propeller
Var. Pitch, Ø 4000 mm, 4 blades, CPP Berg Pitch Nozzle propeller
Bow thruster
600
