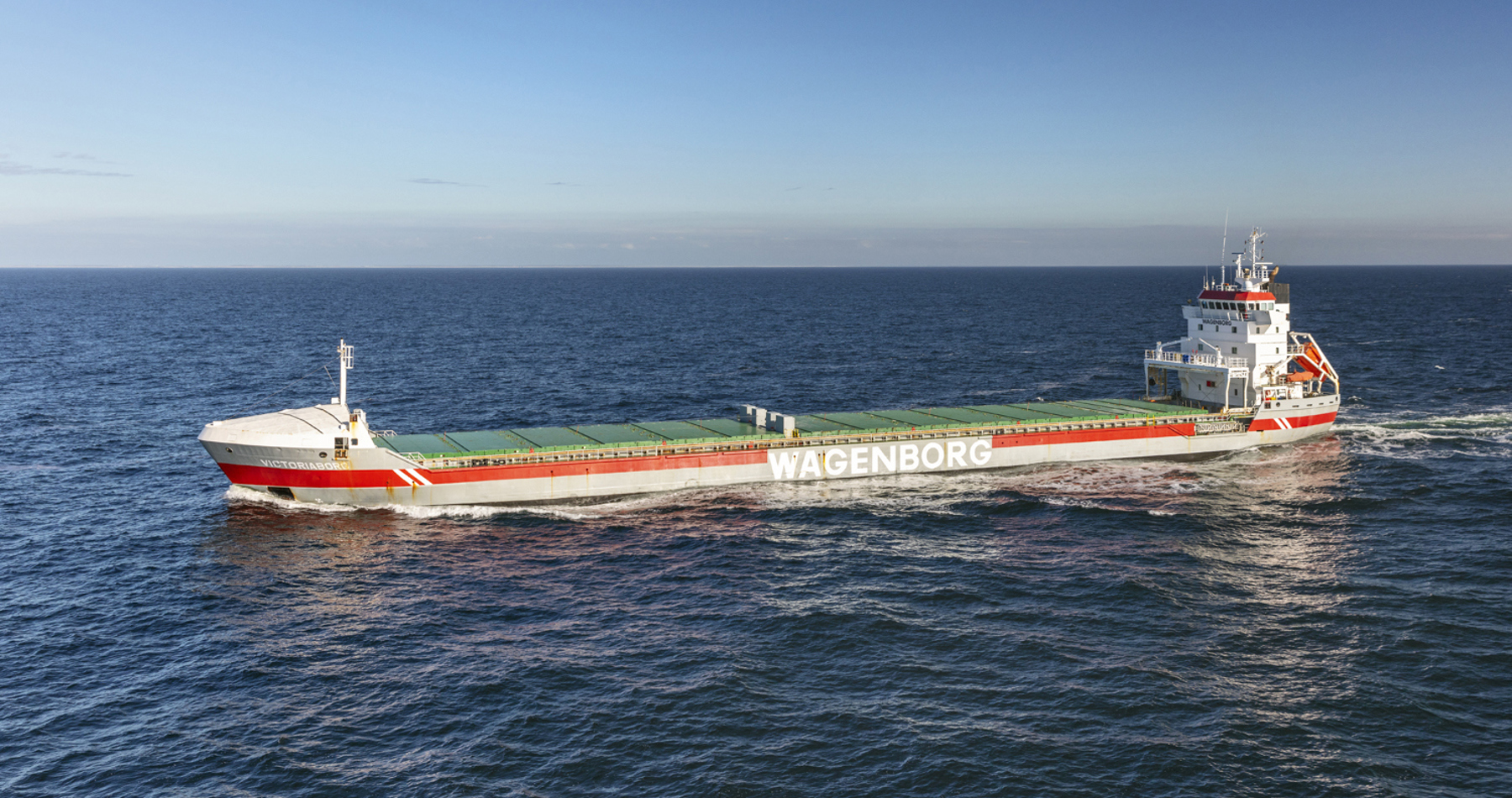

Victoriaborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 132.23 | Beam: 15.87
Hold capacity (cbft)
454.000
DWCC (t)
9.300
Key features
Vessels in this series
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Bodewes Volharding
Classification
Bureau Veritas
Class notations
I +HULL +MACH General cargo ship -heavycargo(147kN/m2) ; Container ship Unrestricted navigation +AUT-UMS, SYS-NEQ-1, MON-SHAFT, ICE CLASSIA
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
9.857
DWCC Summer
9.300
Length over all
132.23
Breadth over all
15.87
Draft summer
7.765
Draft in ballast
3.725
TPC SSW
18
Air draft in ballast
33
Depth (moulded)
11.15
Distance WL-HC in ballast
8
GT
6.361
NT
3.099
Cargo capacities
Total cubic feet capacity
454000 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches , both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square - exce
pt box structures due to vessel's outer shape.
Hold #1
Dimensions
39.95 x 13.2 x 10.84
Luiken
39.95 x 13.2 x 10.84
Hold #2
Dimensions
52.54 x 13.2 x 10.84
Luiken
52.54 x 13.2 x 10.84
Electrical ventilaton
Hold ventilation about 12 air changes per hour.
Both holds fitted with dehumidifier system.
Tank capacities
HFO
466
MGO
47
Water ballast capacity
3725
Fresh Water
71
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wartsila 6L38B 4200 600
Bow thruster
500
Vessels in this series
- Kwintebank 2002
- Vancouverborg 2001
- Victoriaborg 2001
- Virginiaborg 2001
