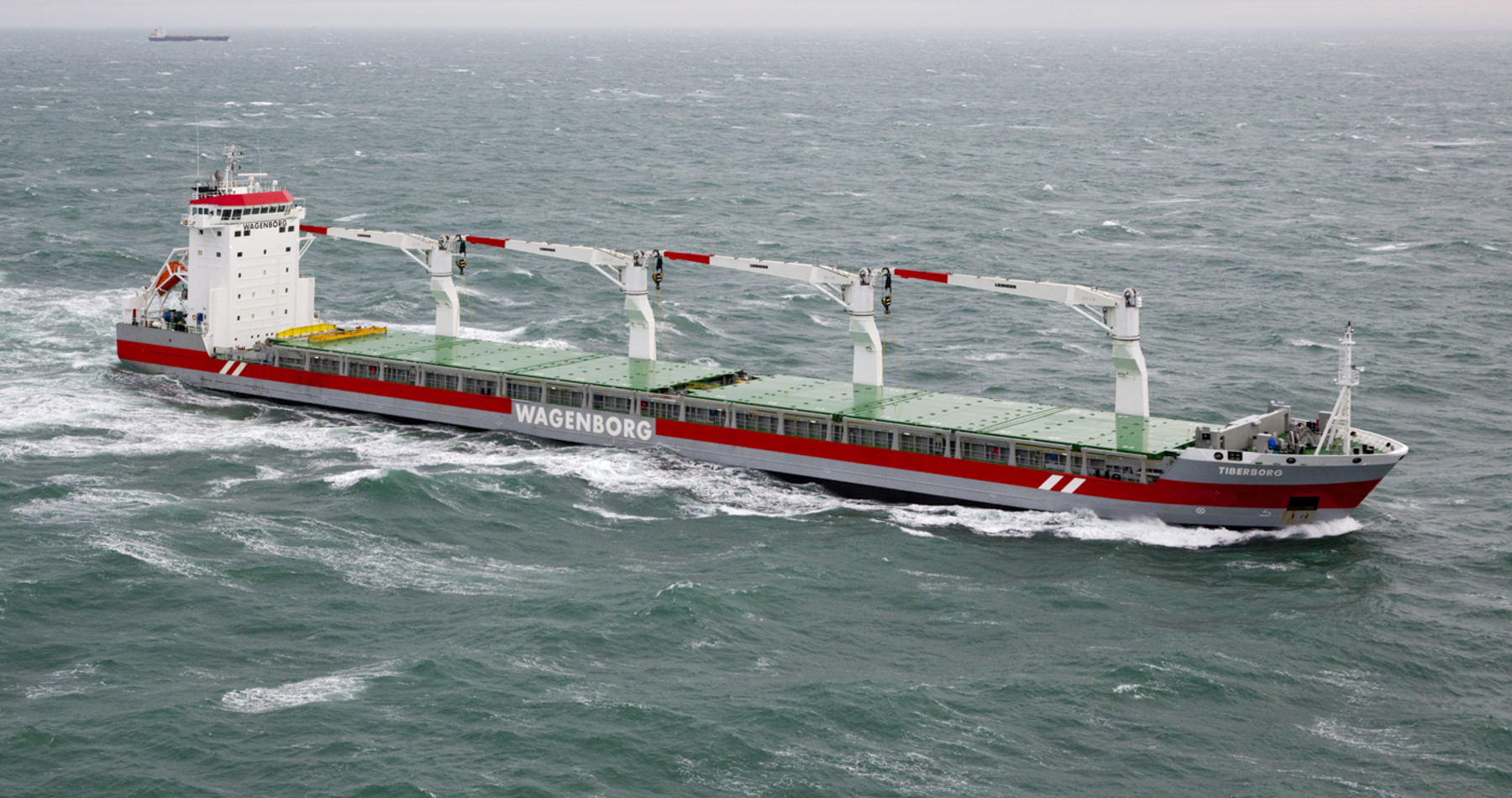

Tiberborg

Cargo capacities

Holds/hatches

2 Holds/ 2 Hatches, both types are: Fully open hatch - no understow. Fully boxed and double skinned. Fully square - exep
t box structures due to vessel's outer shape.
Vessel is equipped with MacGregor navire hydraulic steel pontoon hatches.

Hold #1

Hold #2

Electrical ventilaton

Air changes per hour basis empty holds: 12 x in hold 1, 8x in hold 2.
Both holds fitted with dehumidifier system, consisting of 4 dehumidifier units.

Tank capacities

Speed/consumption

4 cranes fixed on portside. Each with a capacity of 60 mts at a reach of upto 16 m
Or a capacity of 40 mts at a reach upto 28 m.

The Cranes can be combined to up to 120 mts in both holds, but not the entire holds/hatches can be served with this maxi
mum lifting capacity. Free distance between the cranes is 31 meters. Vessel is fitted with lifting beam (weight abt. 10
tons).

Hoisting speed 60 mts SWL 40 mts SWL
Reeving 3 - fall 2 - fall
SWL 0 - 14 m per min. 0 - 22 m per min.
Empty hook 0 - 23 m per min. 0 - 35 m per min.

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines
