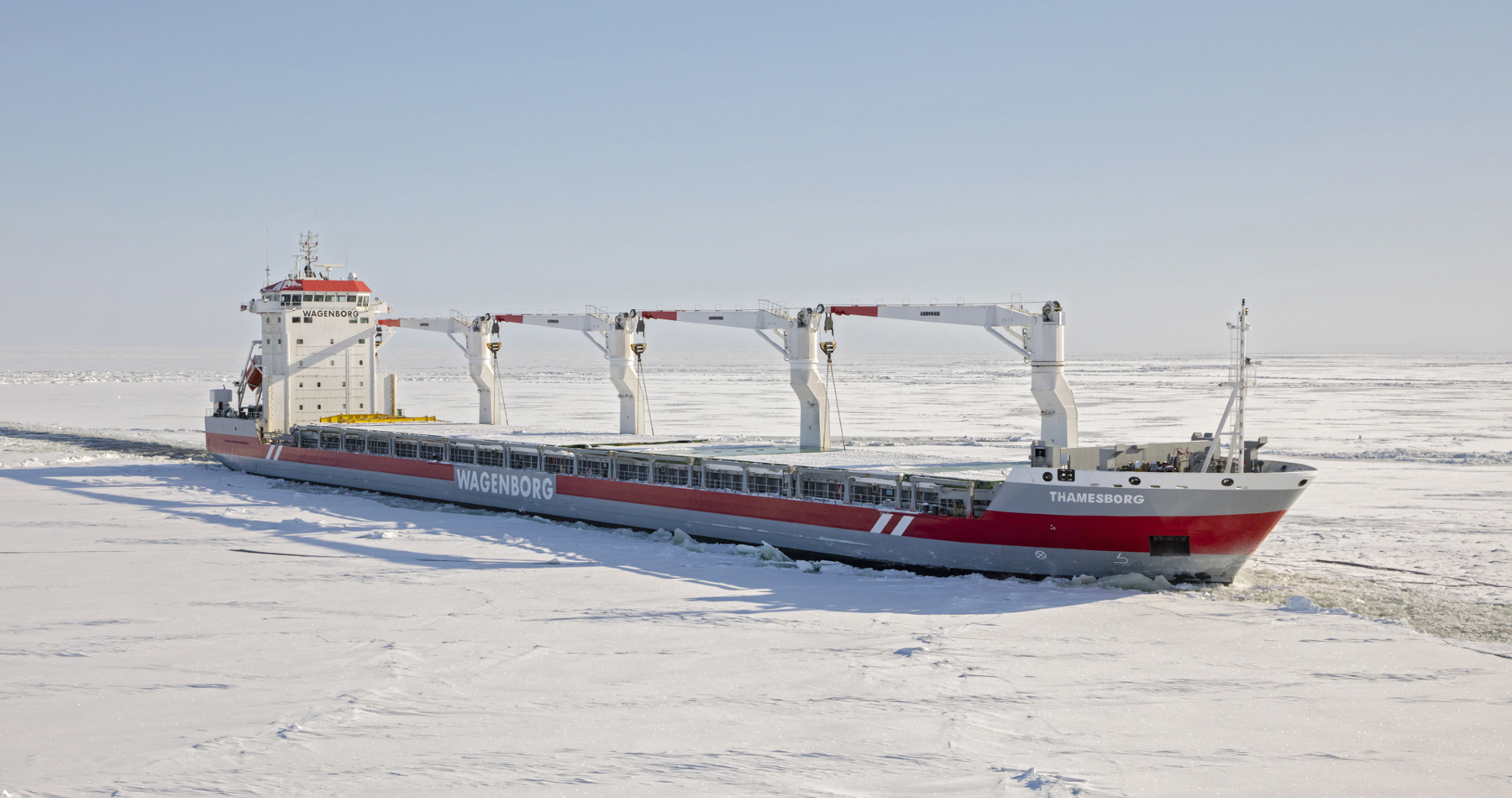

T-Class

Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A

Length o.a.: 172.28 | Beam: 21.49

Hold capacity (cbft) 928.414
DWCC (t) 19.500

Key features

Vessels in this series 4
Flag Dutch
Trading Area Global
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads Yes
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Hudong-Zhonghua Shipbuilding Group Co. Ltd.
Classification
Lloyd's Register
Class notations
100 A1 Strengthened for Heavy Cargoes and Hold may be Empty Container Cargoes in all Holds, on Upper Deck and on all Hatch Covers, ShipRight ACS(B), +IWS, LI, ICE CLASS 1A fs at a draught of 9,535m , +LMC, UMS, NAV1
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
21.338
DWCC Summer
19.500
Length over all
172.28
Breadth over all
21.49
Draft summer
9.382
Draft in ballast
6.644
TPC SSW
34.2
Air draft in ballast
35.85
Depth (moulded)
13.31
Distance WL-HC in ballast
10.5
GT
14.695
NT
6.695

Cargo capacities

Total cubic feet capacity
928414 ft3 grain/bale

Holds/hatches

2 Holds/ 2 Hatches. Both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square - exept
box structures due to vessel's outer shape.
Vessel is equipped with MacGregor navire hydraulic steel pontoon hatches.

Hold #1

Dimensions
55.42 x 17.75 x 13.5
Luiken
55.42 x 17.75 x 13.5

Hold #2

Dimensions
58.68 x 17.75 x 13.5
Luiken
58.68 x 17.75 x 13.5

Electrical ventilaton

Air chantes per hour basis empty holds: 12 x in hold 1, 8 x in hold 2.
Both holds fitted with dehumidifier system, consisting of 4 dehumidifier units.

Tank capacities

HFO
1224
MGO
218
Water ballast capacity
6644
Fresh Water
281

Speed/consumption

4 cranes fixed on portside. Each with a capacity of 60 mts at a reach of upto 16 m
Or a capacity of 40 mts at a reach upto 28 m.

The cranes can be combined to up to 120 mts in both holds but not the entire holds/ hatches can be served with this maxi
mum lifting capacity. Free distance between the cranes is 31 meters. Vessel is fitted with lifting beam (weight abt. 10
tons).

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
Wartsila 6L46F 7500 600
Propeller
Wärtsilä / Lips, 4 blades, 4.800mm
Bow thruster
750

Related ship series

960x640

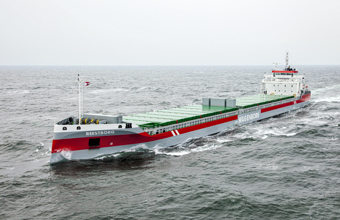

R-Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 169.75 | Beam: 20.4
Hold capacity (cbft) 945.000
DWCC (t) 22.000
960x640

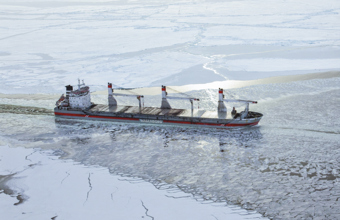

N-Class
