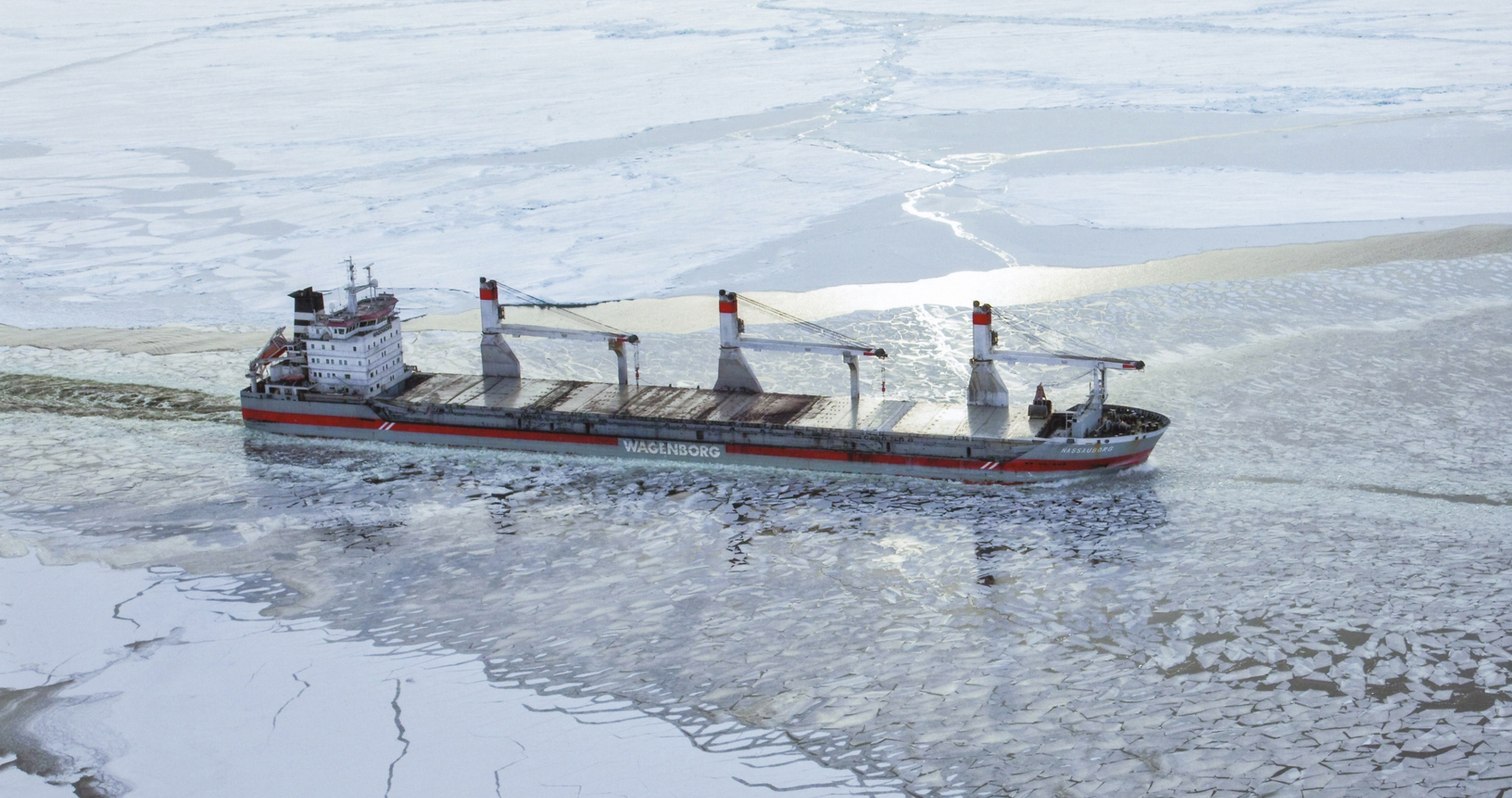

N-Class

Cargo capacities

Holds/hatches

4 Holds/ 4 Hatches - all holds are:
Fully open hatch - no understow. Fully box and double skinned. Fully square - except box structures due to vessel's oute
r shape.

Hatches: Hydraulic folding hatches full ha#1 and ha#4. Hydraulic folding hatches forepart ha#2 and aftpart ha#3.
Pontoon hatches aftpart ha#2 and forpart ha#3. (to be lifted by ship's cranes).
Containers can be placed on deck only.

Hold #1

Hold #2

Hold #3

Hold #4

Electrical ventilaton

60.000 - 40.000 m3 per hour basis empty holds. All holds fitted with dehumidifier system. The Vessel's cargo holds are n
ot suitable for fumigation.

Tank capacities

Speed/consumption

3 Cranes fixed on portside - each with a capacity of 35 mts at a reach of 4,60 - 28,70 m . The cranes are not combinable
.

Hoisting speed upto 45 m per minute.

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: emission controled area(s), Time Charterer to be liable for sulphur emission compliance

Engines
