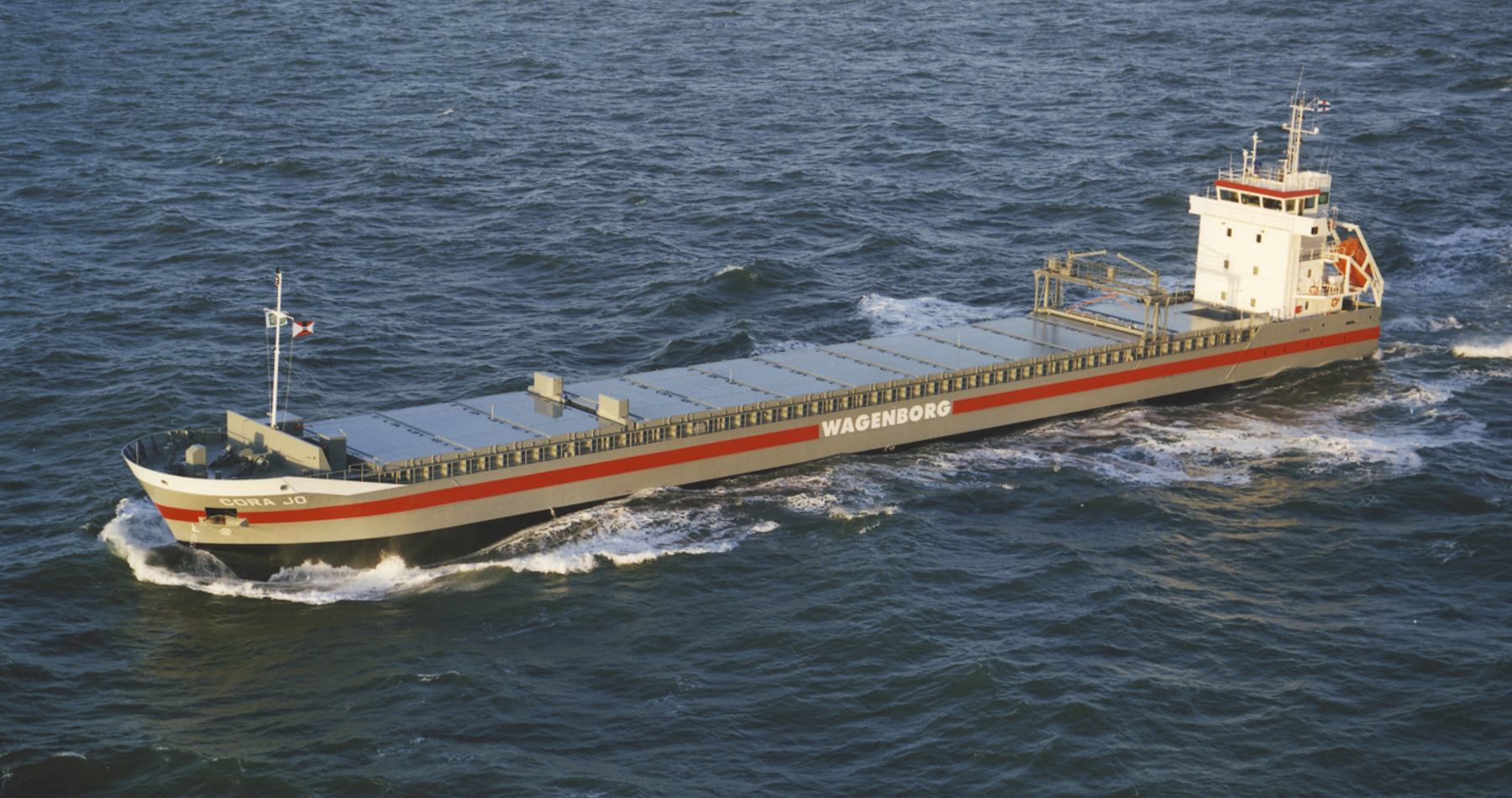

Cora Jo
Multipurpose Dry Cargo Carrier | Vessel | 1B
Length o.a.: 111.4 | Beam: 13.35
Hold capacity (cbft)
278.738
DWCC (t)
5.800
Key features
Vessels in this series
7
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IB
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Peters B.V.
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo (147 kN/m2) -equipped for carriage of containers, Unrestricted navigation + AUT-UMS, ICE CLASS IB
Ice class
IB
Port of Registry
Delfzijl
Flag
Dutch
DWAT
6.051
DWCC Summer
5.800
Length over all
111.4
Breadth over all
13.35
Draft summer
5.74
Draft in ballast
2.192
TPC SSW
16
Air draft in ballast
27.5
Depth (moulded)
9.1
Distance WL-HC in ballast
4.83
GT
3.995
NT
1.559
Cargo capacities
Total cubic feet capacity
278738 ft3 grain/bale
Holds/hatches
2 holds/ 2 hatches, fully open hatch, - no understow, fully box and double skinned.
Hold #1
Dimensions
18.7 x 11.2 x 9
Luiken
18.7 x 11.2 x 9
Hold #2
Dimensions
59.6 x 11.2 x 9
Luiken
59.6 x 11.2 x 9
Electrical ventilaton
Hold ventilation abt.6 air changes per hour bases empty holds. Holds are not fitted with dehumidifier system.
Tank capacities
HFO
116
MGO
142
Water ballast capacity
2192
Fresh Water
43
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wartsila 6L26A 2040 1000
Bow thruster
280
