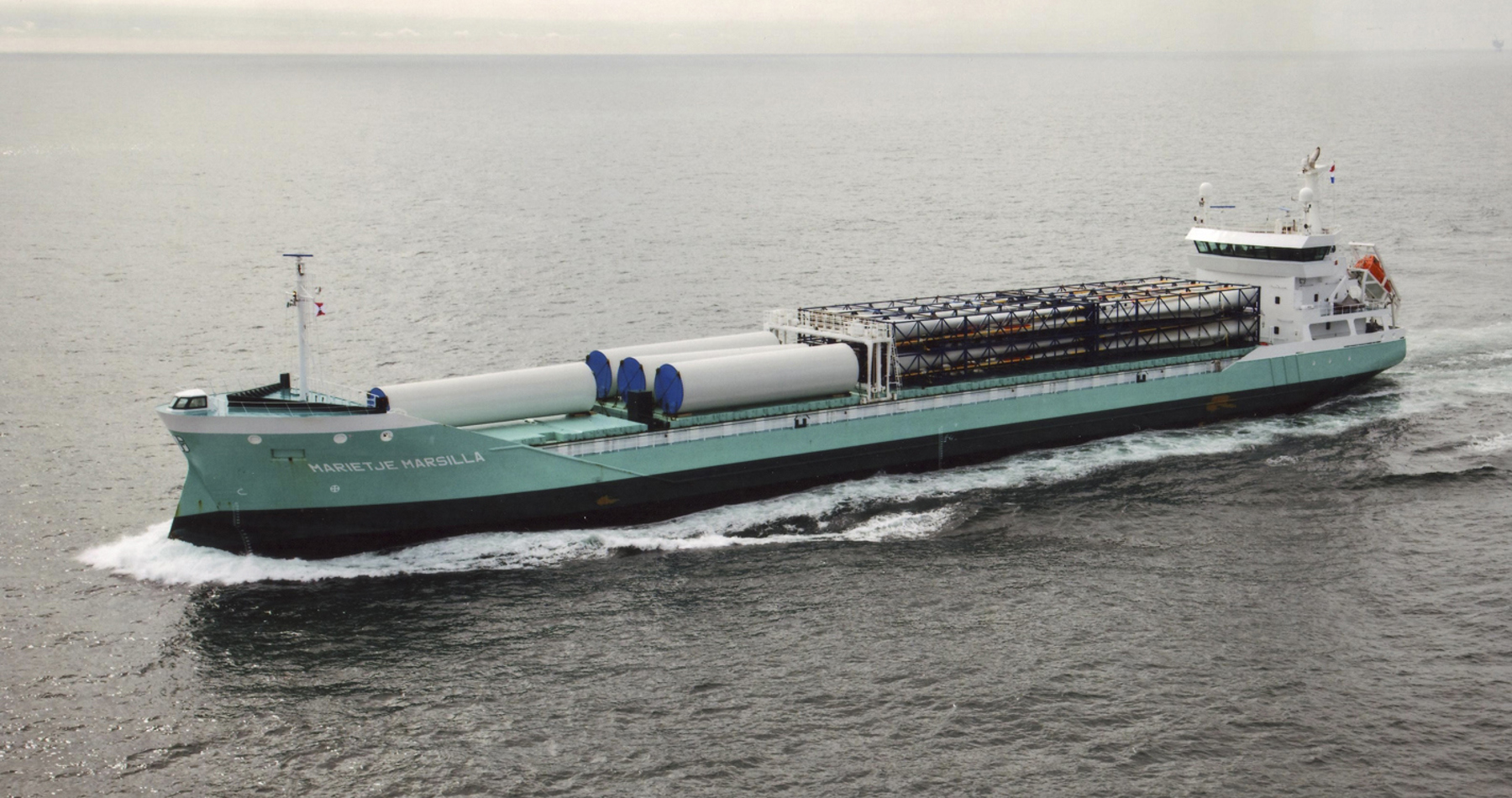

Marietje Marsilla

Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A

Length o.a.: 126.13 | Beam: 15.2

Hold capacity (cbft) 330.771
DWCC (t) 8.030

Key features

Vessels in this series 4
Flag Dutch
Trading Area
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Barkmeijer Stroobos
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo (inner bottom, 150 kN/m2) Unrestricted navigation + AUT-UMS, MON-SHAFT, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl.
Flag
Dutch
DWAT
8.493
DWCC Summer
8.030
Length over all
126.13
Breadth over all
15.2
Draft summer
7.069
Draft in ballast
3.640
TPC SSW
17
Air draft in ballast
25
Depth (moulded)
9.5
Distance WL-HC in ballast
6.5
GT
5.418
NT
2.696

Cargo capacities

Total cubic feet capacity
330771 ft3 grain/bale

Holds/hatches

2 Holds / 2 Hatches. Both types are: Fully open hatch - no understow. Fully box and double skinned (except narrowing for
e/aft. part)

The vessel is equipped with 5 cement holes in the hatches, Ø 46cm, for loading cement and flyash.

Hold #1

Dimensions
20.71 x 12.8 x 9.38
Luiken
20.71 x 12.8 x 9.38

Hold #2

Dimensions
68.63 x 12.8 x 9.38
Luiken
68.63 x 12.8 x 9.38

Electrical ventilaton

Hold ventilation about 9 air changes per hour basis empty holds. Both holds fitted with dehumidifier system.

Tank capacities

HFO
500
MGO
85
Water ballast capacity
3640
Fresh Water
50

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
MAN B&W Diesel 9L27/38 2999 800
Propeller
Pitch
Bow thruster
400
