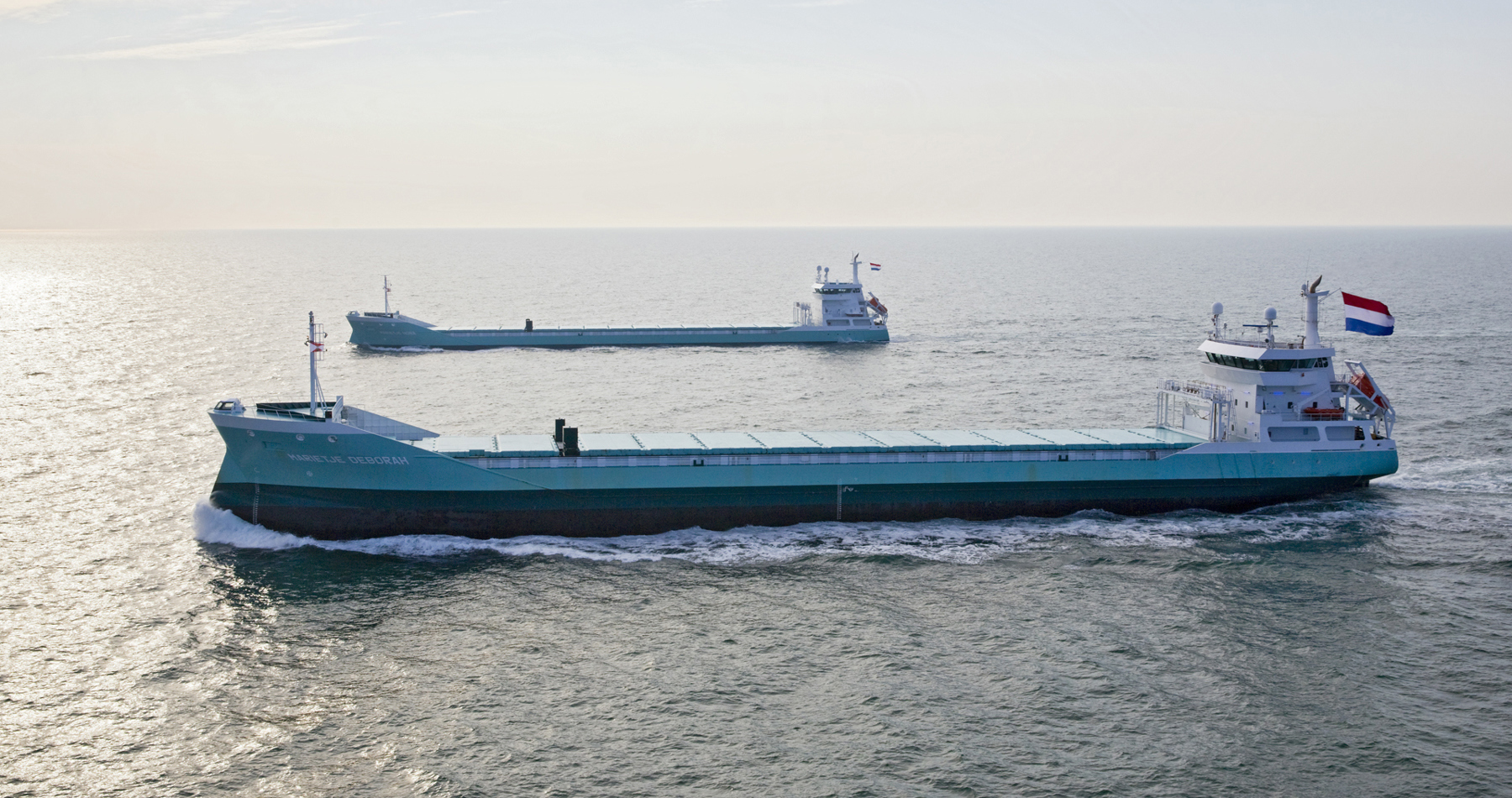

Marietjes
Multipurpose Dry Cargo Carrier | 4 Vessel | Finnish /Swedish 1A
Length o.a.: 126.13 | Beam: 15.2
Hold capacity (cbft)
330.771
DWCC (t)
8.030
Key features
Vessels in this series
4
Flag
Dutch
Trading Area
Europe & Atlantic
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Barkmeijer Stroobos
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo (inner bottom, 150 kN/m2) Unrestricted navigation + AUT-UMS, MON-SHAFT, ICE CLASS 1A
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
8.493
DWCC Summer
8.030
Length over all
126.13
Breadth over all
15.2
Draft summer
7.069
Draft in ballast
3.640
TPC SSW
17
Air draft in ballast
25
Depth (moulded)
9.5
Distance WL-HC in ballast
6.5
GT
5.418
NT
2.696
Cargo capacities
Total cubic feet capacity
330771 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches, both types are: Fully open hatch - no understow. Fully box and double skinned (except narrowing fo
re/ aft. part)
Hold #1
Dimensions
20.71 x 12.8 x 9.38
Luiken
20.71 x 12.8 x 9.38
Hold #2
Dimensions
68.63 x 12.8 x 9.38
Luiken
68.63 x 12.8 x 9.38
Electrical ventilaton
Holdventilation about 9 air changes per hour. Both holds fitted with dehumidifier system.
Tank capacities
HFO
500
MGO
85
Water ballast capacity
3640
Fresh Water
50
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAN B&W Diesel 9L27/38 2999 800
Propeller
Pitch
Bow thruster
400
Vessels in this series
- Marietje Andrea 2009
- Marietje Deborah 2011
- Marietje Marsilla 2010
- Marietje Nora 2015
Related ship series

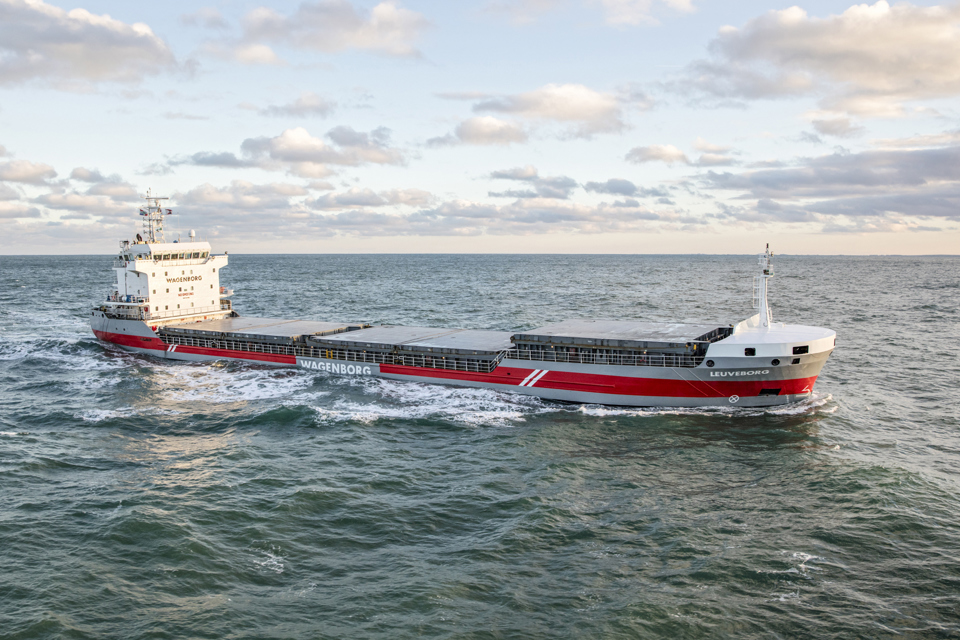

LL-Class
Multipurpose Dry Cargo Carrier | 3 Vessel | 1B
Length o.a.: 108.24 | Beam: 18.2
Hold capacity (cbft)
360.202
DWCC (t)
7.700

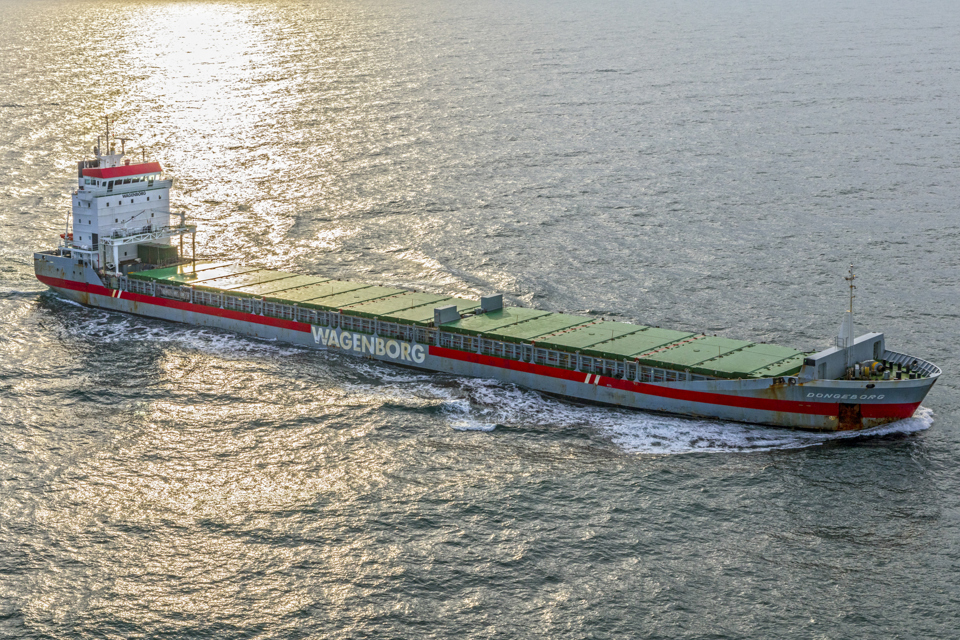

D-Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 133.41 | Beam: 15.85
Hold capacity (cbft)
447.841
DWCC (t)
8.350

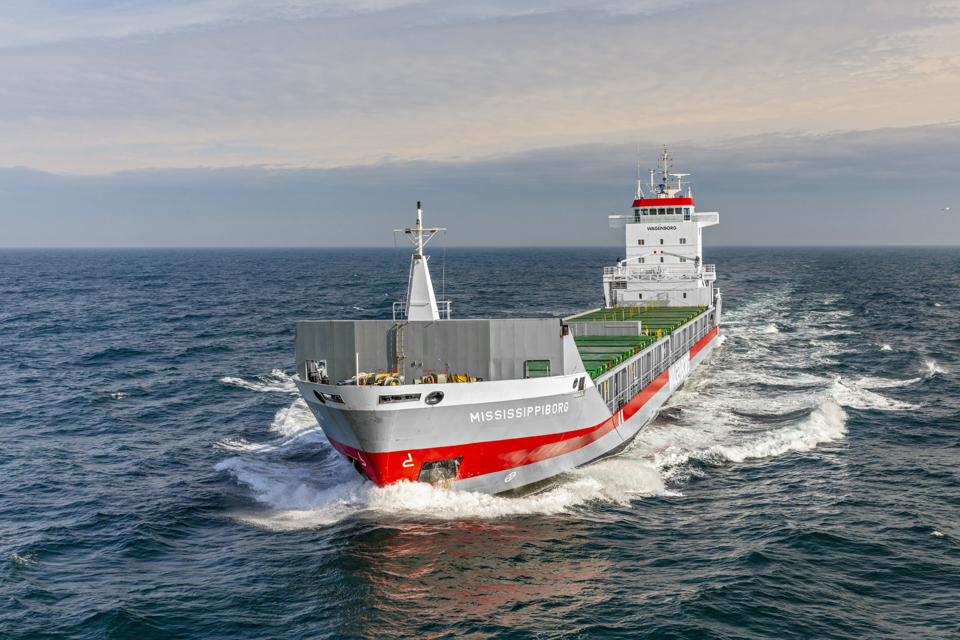

M-Class
