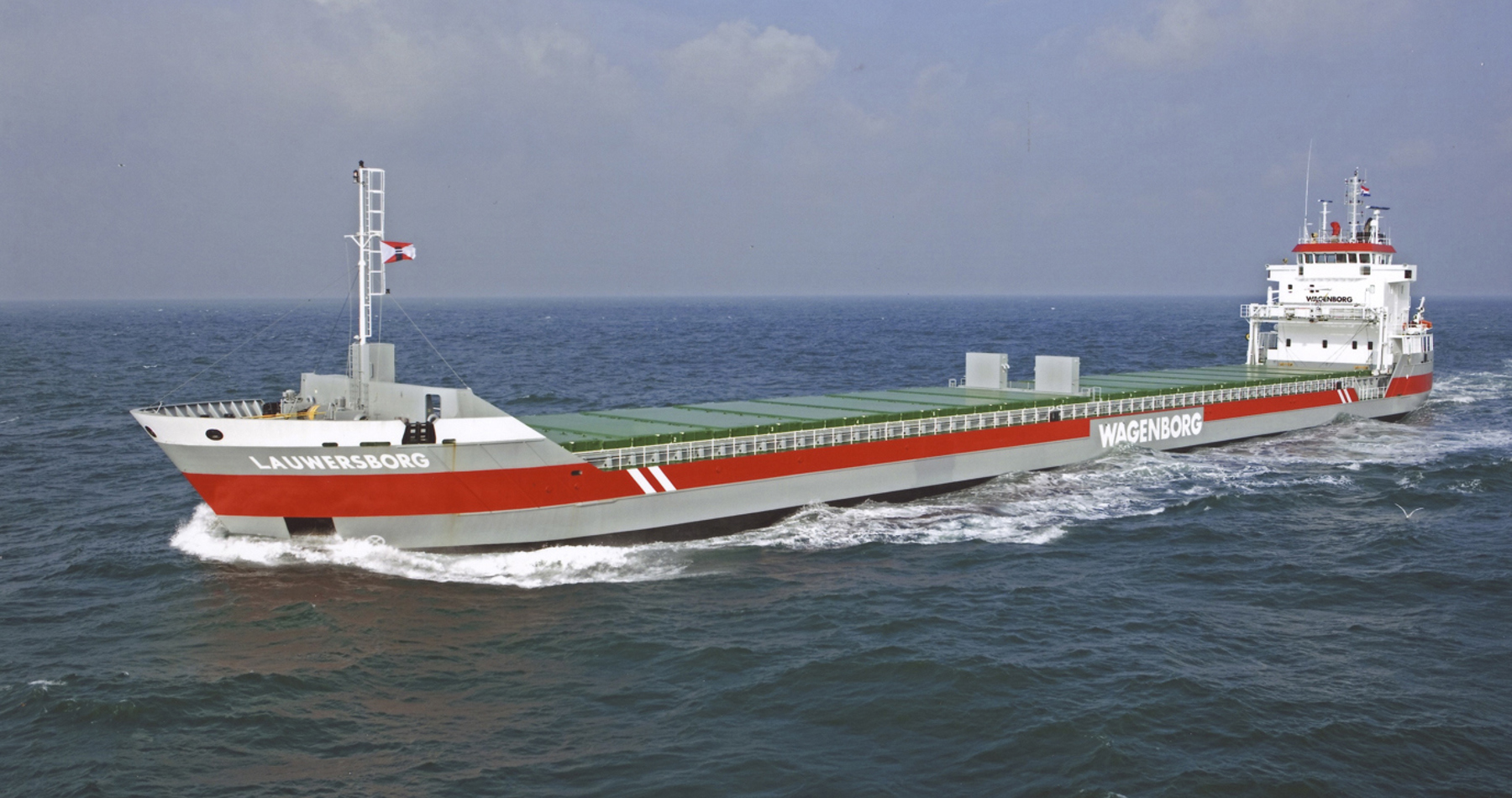

Lauwersborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 122.34 | Beam: 14.4
Hold capacity (cbft)
323.779
DWCC (t)
6.900
Key features
Vessels in this series
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Niestern Sander
Classification
Bureau Veritas
Class notations
I + HULL + MACH GEneral cargo ship -heavycargo(147kN/m2); Container ship Unrestricted navigation +AUT-UMS, SYS-NEQ, MON-SHAFT, ICE CLASS IA, INWATERSURVEY
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
7.433
DWCC Summer
6.900
Length over all
122.34
Breadth over all
14.4
Draft summer
6.51
Draft in ballast
3.239
TPC SSW
16.4
Air draft in ballast
32.4
Depth (moulded)
8.1
Distance WL-HC in ballast
6.05
GT
4.695
NT
2.558
Cargo capacities
Total cubic feet capacity
323779 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches. Both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square - excep
t box structures due to vessel's outer shape.
Hold #1
Dimensions
45.18 x 11.71 x 8.98
Luiken
45.18 x 11.71 x 8.98
Hold #2
Dimensions
44.48 x 11.71 x 8.98
Luiken
44.48 x 11.71 x 8.98
Electrical ventilaton
Hold ventilation abt.15 Air changes per hour basis empty holds. Both holds fitted with dehumidifier system.
Vessel is equipped with removable ventilation trunks.
Tank capacities
HFO
363
MGO
89
Water ballast capacity
3239
Fresh Water
68
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 9M25C 2970 750
Reduction gear
-
Propeller
-
Bow thruster
350
Vessels in this series
- Laganborg 2008
- Lauwersborg 2007
- Lingeborg 2008
- Loireborg 2008
