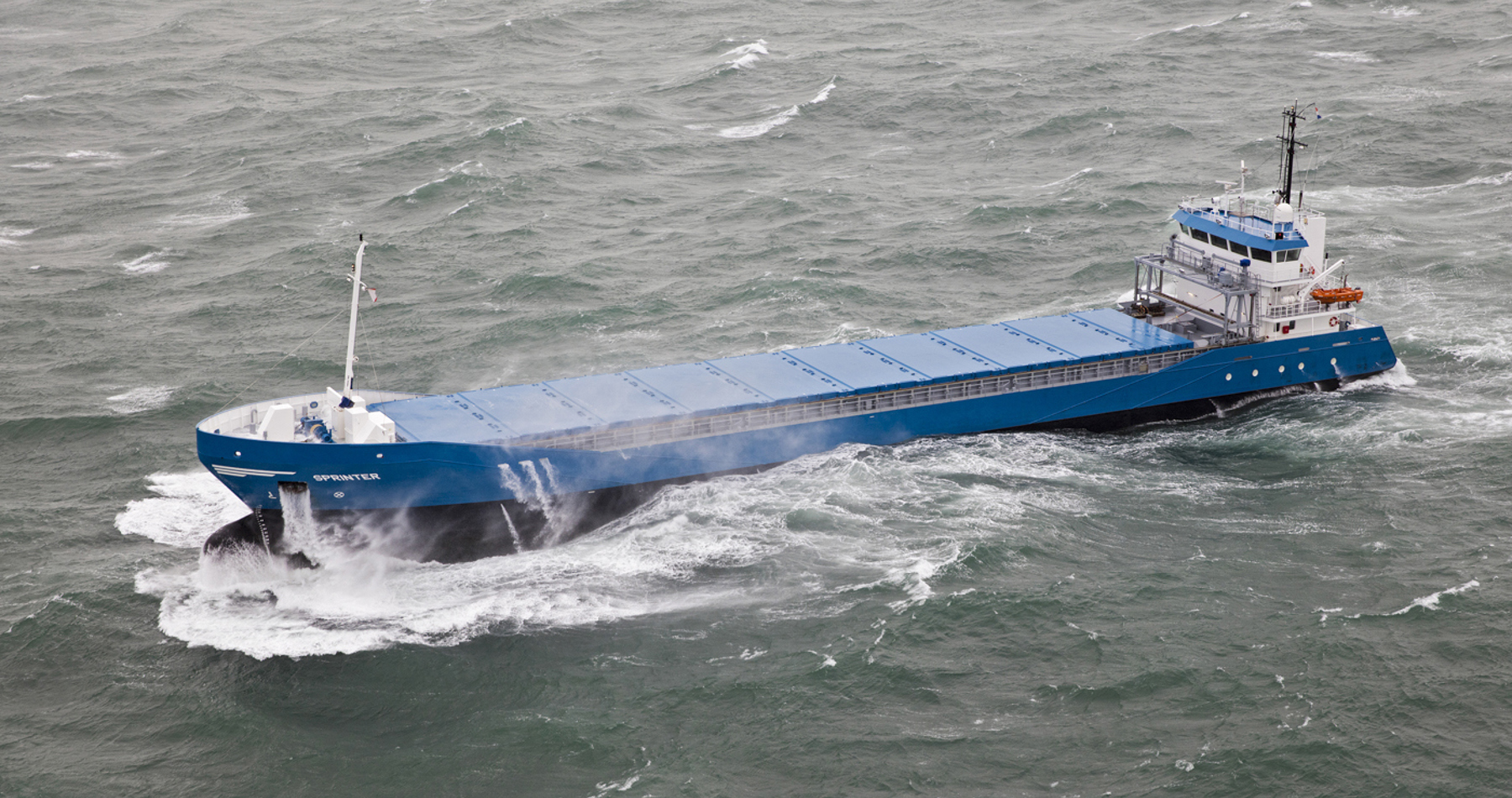

Ohioborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 89.99 | Beam: 12.5
Hold capacity (cbft)
174.063
DWCC (t)
3.350
Key features
Vessels in this series
10
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Peters B.V.
Classification
Bureau Veritas
Class notations
I HULL MACH General cargo ship -equipped for carriage of containers -heavycargo (147 kN/m2) Unrestricted navigation AUT-UMS, ICE CLASS 1A, STRENGTHBOTOM
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
3.614
DWCC Summer
3.350
Length over all
89.99
Breadth over all
12.5
Draft summer
5.2
Draft in ballast
1.466
TPC SSW
10
Air draft in ballast
22.75
Depth (moulded)
8
Distance WL-HC in ballast
6
GT
2.528
NT
1.053
Cargo capacities
Total cubic feet capacity
174063 ft3 grain/bale
Holds/hatches
1 Hold / 1 Hatch. Both types are:
Fully open hatch - no understow.
Fully box and double skinned (except narrowing fore/ aft. part)
Hold #1
Dimensions
60 x 10.3 x 8.15
Luiken
60 x 10.3 x 8.15
Electrical ventilaton
Hold ventilations 6 air changes per hour.
Hold is fitted with dehumidifier system.
Tank capacities
HFO
250
MGO
40
Water ballast capacity
1466
Fresh Water
25
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsilä 9L20 1800 1000
Propeller
controle pitch propeller
Bow thruster
250
