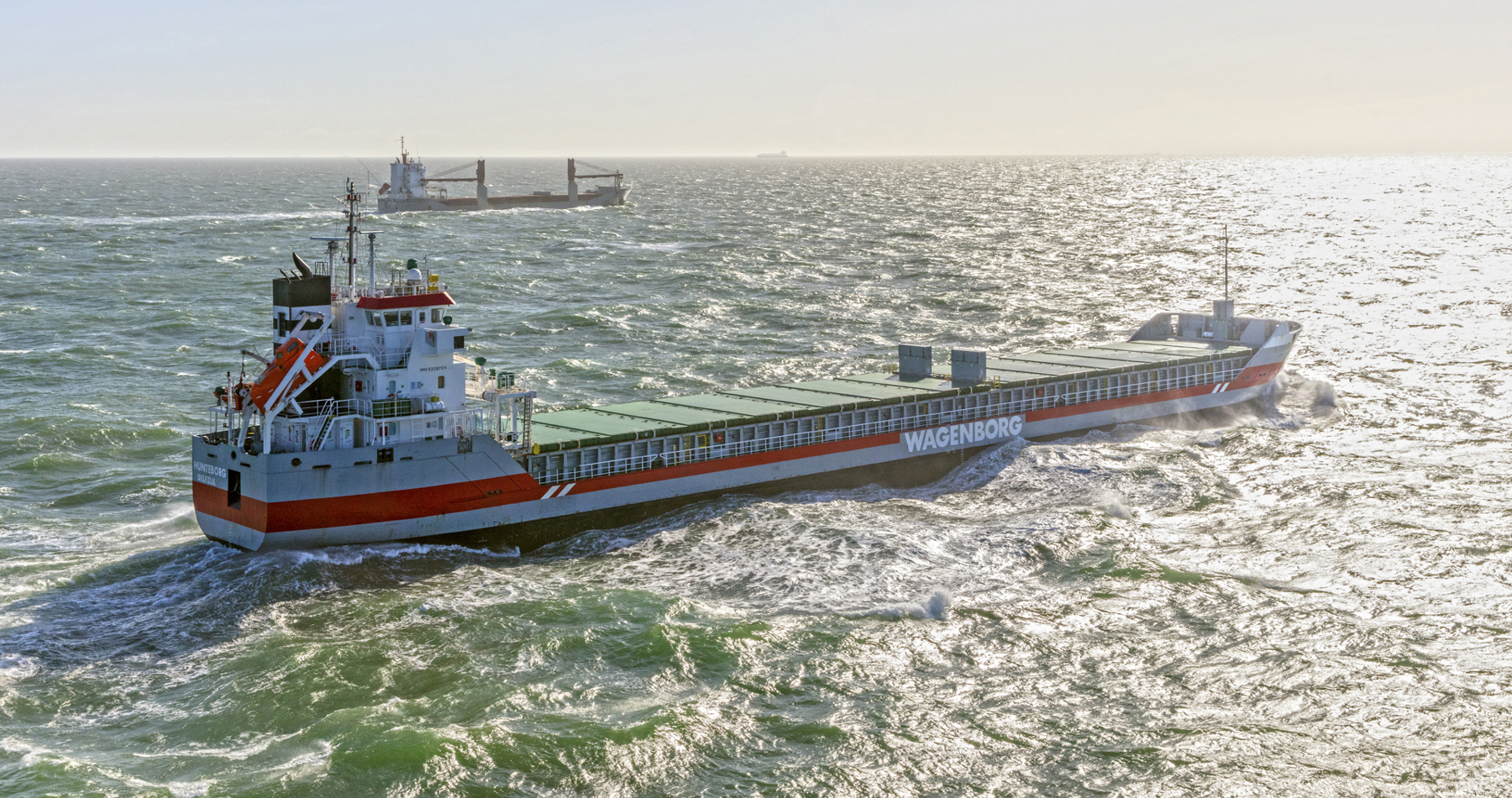

H-class
Multipurpose Dry Cargo Carrier | 2 Vessel | Finnish /Swedish 1A
Length o.a.: 113.76 | Beam: 14.4
Hold capacity (cbft)
295.779
DWCC (t)
5.650
Key features
Vessels in this series
2
Flag
Dutch
Trading Area
Europe
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Niestern Sander
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship -heavycargo (147kN/m2); Container ship Unrestricted navigation +AUT-UMS, SYS-NEQ, ICE CLASS IA, MON-SHAFT
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
6.100
DWCC Summer
5.650
Length over all
113.76
Breadth over all
14.4
Draft summer
6.02
Draft in ballast
2.980
TPC SSW
14.9
Air draft in ballast
28
Depth (moulded)
8.1
Distance WL-HC in ballast
6.5
GT
4.206
NT
2.282
Cargo capacities
Total cubic feet capacity
295779 ft3 grain/bale
Holds/hatches
2 Holds / 2 Hatches. Both types are: Fully open hatch - no understow. Fully box and double skinned.
Hold #1
Dimensions
38.22 x 11.7 x 8.98
Luiken
38.22 x 11.7 x 8.98
Hold #2
Dimensions
44.48 x 11.7 x 8.98
Luiken
44.48 x 11.7 x 8.98
Electrical ventilaton
6 Air changes per hour basis empty holds. Both holds fitted with dehumidifier system.
Vessel is equipped with removable ventilation trunks.
Tank capacities
HFO
301
MGO
89
Water ballast capacity
2980
Fresh Water
68
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsila 6L32 2999 750
Reduction gear
Flender Navilus GUCP710, 194 rpm
Propeller
CCP Wärtsilä, 4 blades, Ø3400 mm
Bow thruster
350
Related ship series

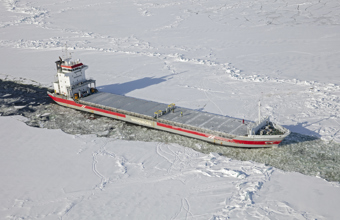

Z-Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 118.55 | Beam: 15.2
Hold capacity (cbft)
329.633
DWCC (t)
7.500

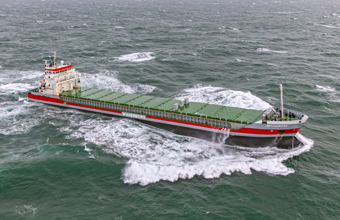

Ferus 6.400
Multipurpose Dry Cargo Carrier | 13 Vessel | Finnish /Swedish 1A
Length o.a.: 110.78 | Beam: 14
Hold capacity (cbft)
280.000
DWCC (t)
6.400

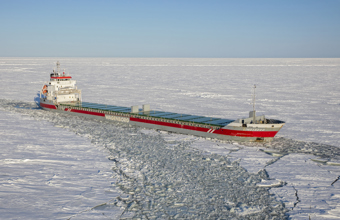

L-Class
