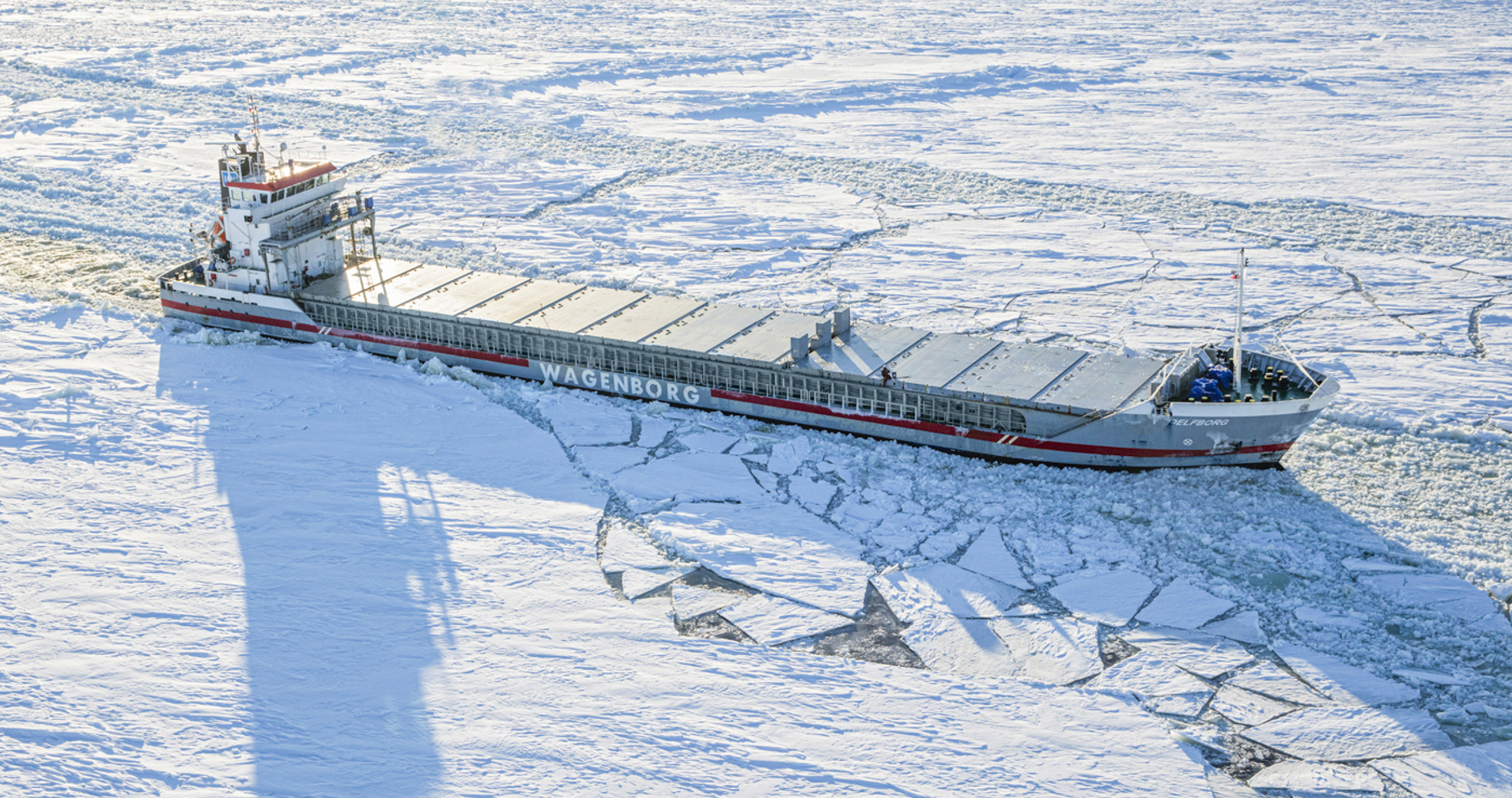

Delfborg

Cargo capacities

Holds/hatches

2 Holds/ 2 Hatches, both types are: fully open hatch - no understow. Fully box and double skinned (except narrowing for
e/aft. part)

Cement holes:
Position of cement holes in the following hatches:
Starboard side: hatch no. 4 - 7 and 12, abt. 1,40 m of the centreline
Port side: hatch no. 1 - 5 and 10, abt. 1,40 m of the centreline.

Cement holes by dm:
Outside 58 cm
Inside 47 cm

Each hole has 12 bolts M16x30

Hold #1

Hold #2

Electrical ventilaton

Hold ventilation abt. 6 air chagnes per hour basis empty holds. Both holds fitted with dehumidifier system.
The ventilation trunks are not removable.

Tank capacities

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines
