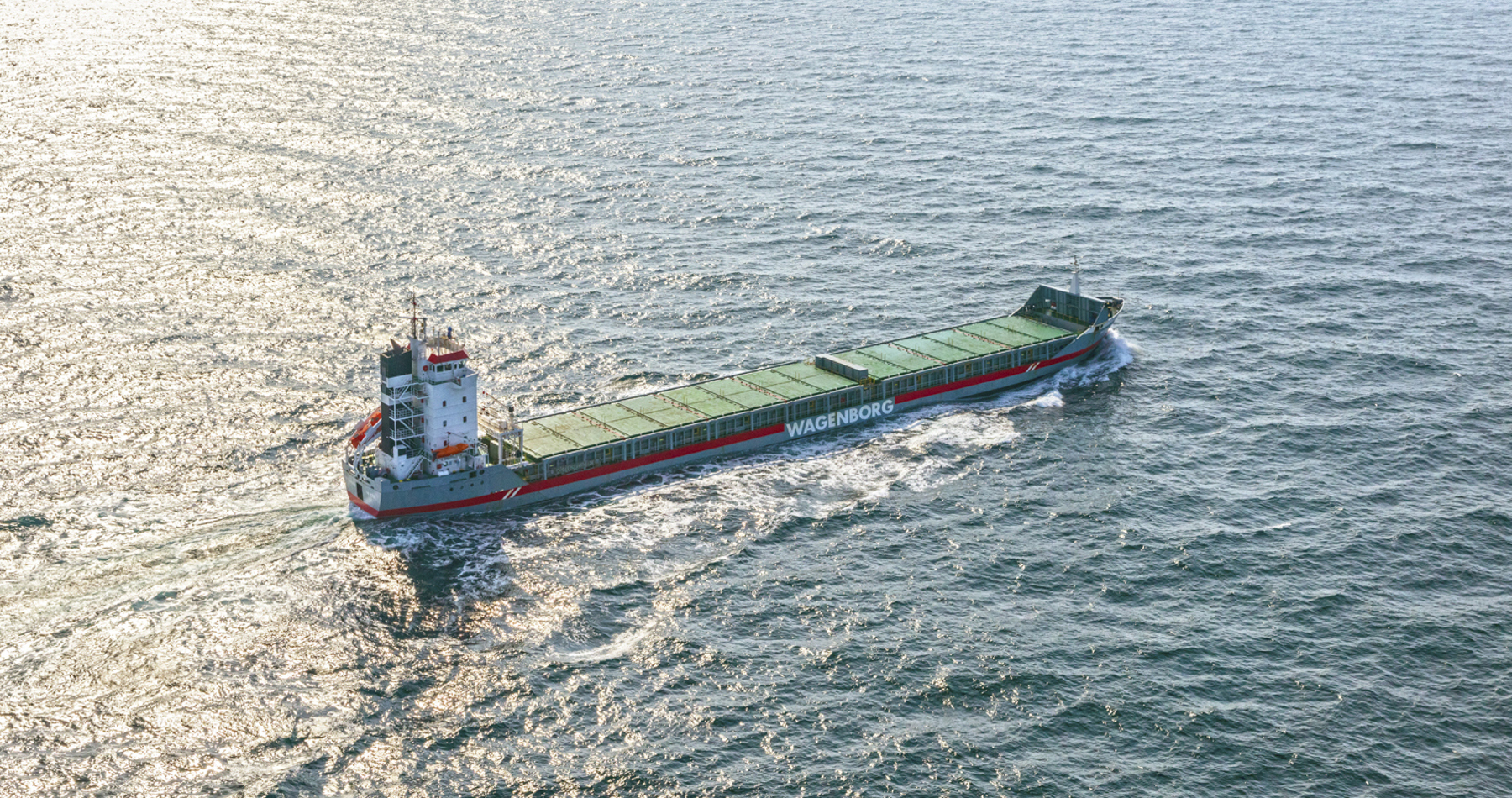

Dongeborg
Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A
Length o.a.: 133.41 | Beam: 15.85
Hold capacity (cbft)
447.841
DWCC (t)
8.350
Key features
Vessels in this series
3
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf van Diepen
Classification
Bureau Veritas
Class notations
1 + HULL + MACH, General cargo ship-heavycargo (15t/m2) -nonhomload, Container ship, Unrestricted Navigation + AUT-UMS, SYS-NEQ-1, MON SHAFT, ICE CLASS 1A LASHING
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
8.867
DWCC Summer
8.350
Length over all
133.41
Breadth over all
15.85
Draft summer
7.103
Draft in ballast
3.414
TPC SSW
18.85
Air draft in ballast
33.75
Depth (moulded)
9.8
Distance WL-HC in ballast
7.6
GT
6.205
NT
3.340
Cargo capacities
Total cubic feet capacity
447841 ft3 grain/bale
Holds/hatches
2 Holds/ 2 Hatches. Both types are: Fully openhatch - no understow. Fully box and double skinned (except narrowing for/
aft part)
Hold #1
Dimensions
41.99 x 13.2 x 10.48
Luiken
41.99 x 13.2 x 10.48
Hold #2
Dimensions
53.61 x 13.2 x 10.48
Luiken
53.61 x 13.2 x 10.48
Electrical ventilaton
Hold ventilations abt.10 air changes per hour basis empty hold. Both holds fitted with dehumidifier system.
Tank capacities
HFO
553
MGO
77
Water ballast capacity
3414
Fresh Water
53
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wartsila 8L38 5280 600
Propeller
left rotating, pitch propeller
Bow thruster
500
Vessels in this series
- Diezeborg 2000
- Dintelborg 1999
- Dongeborg 1999
