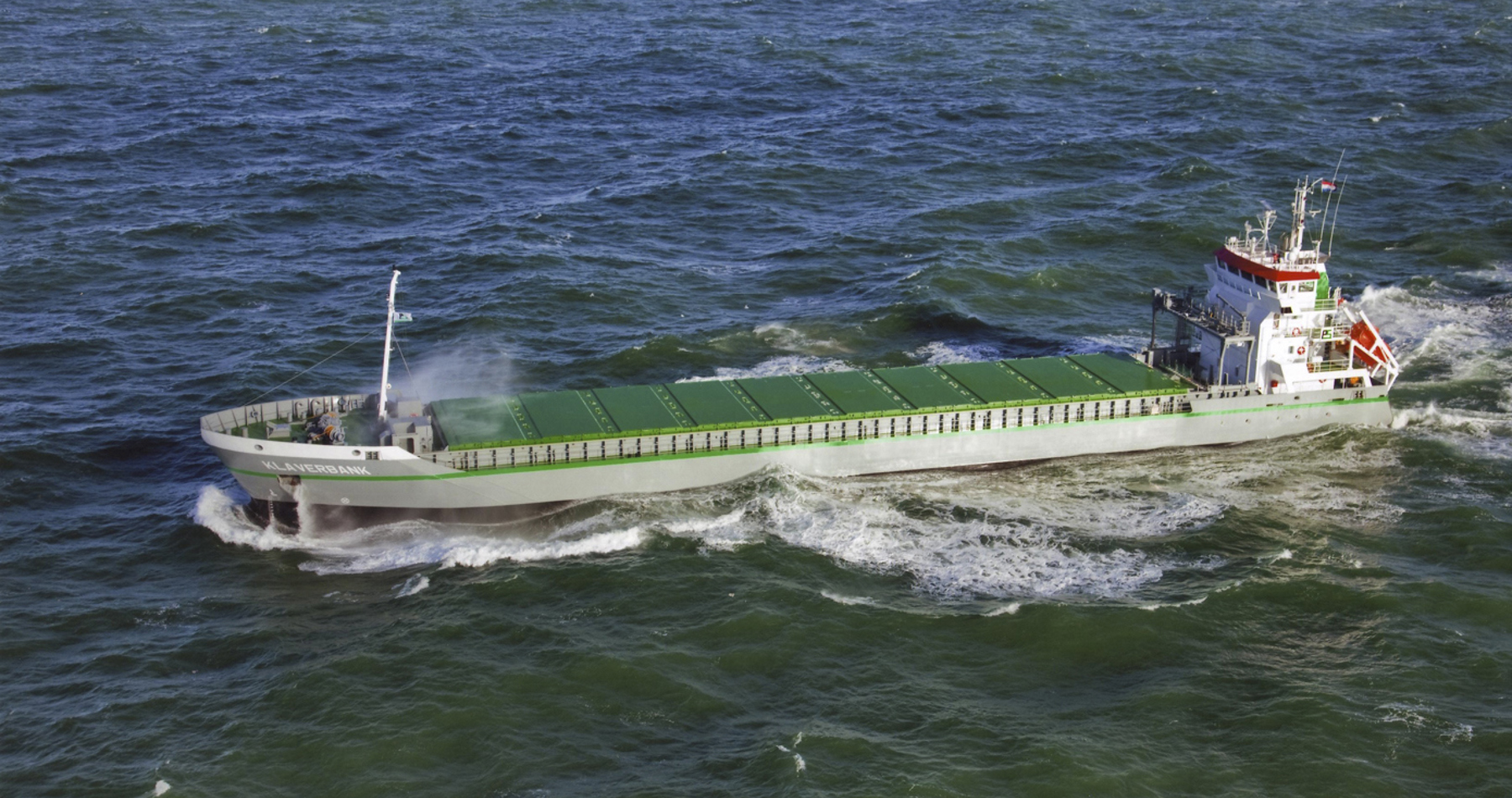

Klaverbank
General Cargo | Vessel | Finnish /Swedish 1A
Length o.a.: 99.99 | Beam: 13.35
Hold capacity (cbft)
234.000
DWCC (t)
4.850
Key features
Vessels in this series
4
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Scheepswerf Peters B.V.
Classification
Lloyd's Register
Class notations
100 A1 Strengthened for Heavy Cargoes, Container Cargoes in all Holds and on Upper Deck and on all Hatch Covers. Ice Class 1A FS at a draught of 6,28 metres. + LMC, UMS Descr.Note: FCSA(plans), Part Higher Tensile Steel, ShipRight (SCM)
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
5.250
DWCC Summer
4.850
Length over all
99.99
Breadth over all
13.35
Draft summer
6.15
Draft in ballast
1.909
TPC SSW
12.2
Air draft in ballast
26.5
Depth (moulded)
9.1
Distance WL-HC in ballast
7
GT
3.739
NT
1.491
Cargo capacities
Total cubic feet capacity
234000 ft3 grain/bale
Holds/hatches
1 Hold/ 1 Hatch, both types are fully open hatch - no understow. Fully box and double skinned.
Vessel is equipped with 5 Cement holes.
Hold #1
Dimensions
61.8 x 11.2 x 9.6
Luiken
61.8 x 11.2 x 9.6
Electrical ventilaton
Electrical ventilation, about 6 air changes per hour basis empty hold.
Vessel is equipped with dehumidifier system.
Tank capacities
HFO
0
MGO
366
Water ballast capacity
1909
Fresh Water
42
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsilä 9L20 1800 1000
Propeller
4 bladed, pitch propeller, BCP 850 single, Ø 2950 mm
Bow thruster
280
Vessels in this series
- Gaastborg 2012
- Geulborg 2010
- Gooteborg 2011
- Klaverbank 2011
