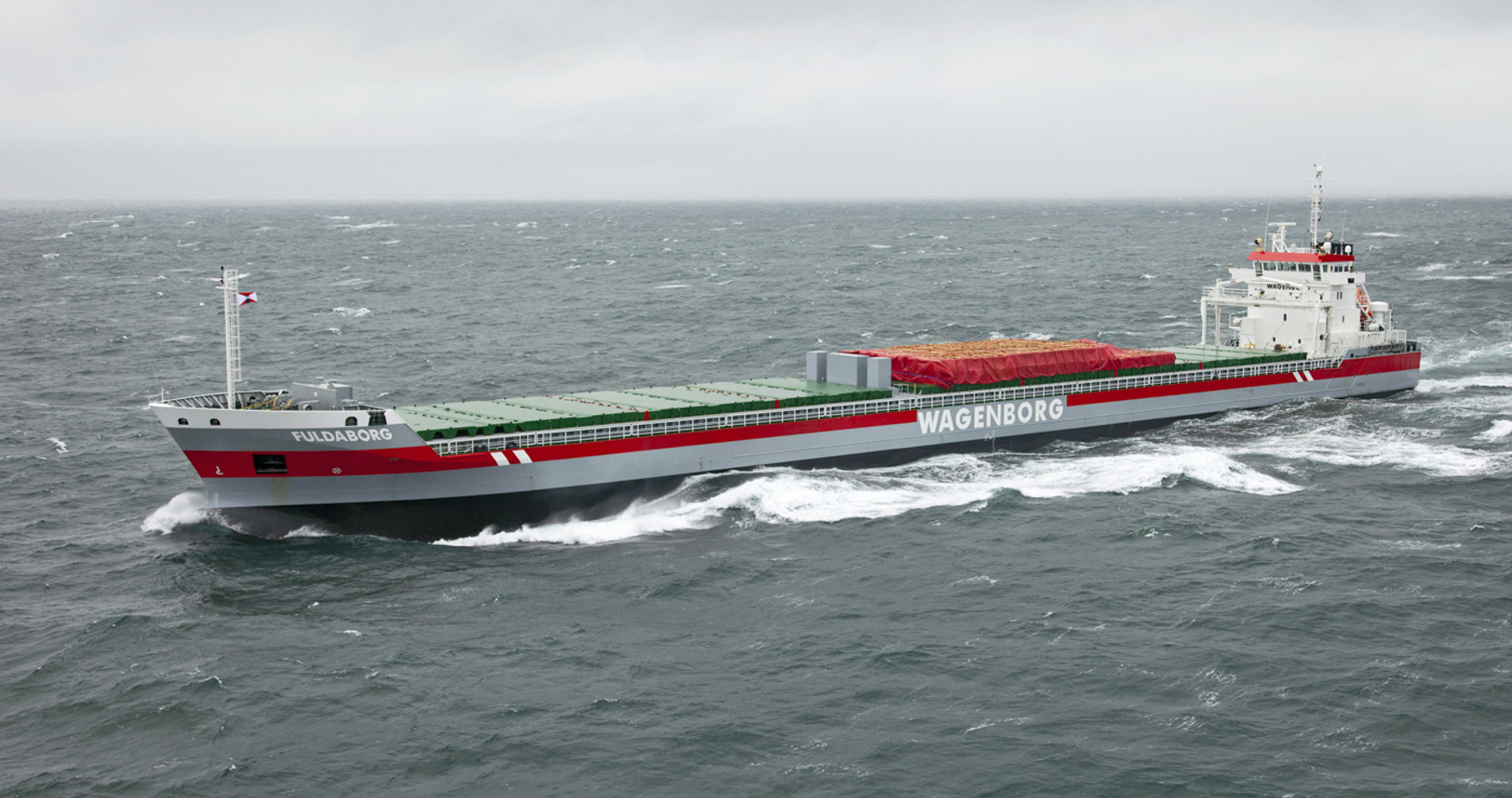

Fuldaborg

Multipurpose Dry Cargo Carrier | Vessel | Finnish /Swedish 1A

Length o.a.: 154.6 | Beam: 17.2

Hold capacity (cbft) 606.781
DWCC (t) 13.500

Key features

Vessels in this series 6
Flag Dutch
Trading Area
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Ferus Smit Leer GmbH
Classification
Bureau Veritas
Class notations
I + HULL + MACH General cargo ship; Container ship Unrestricted navigation +AUT-UMS, +SYS-NEQ, ICE CLASS IA
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
14.595
DWCC Summer
13.500
Length over all
154.6
Breadth over all
17.2
Draft summer
8.19
Draft in ballast
6.060
TPC SSW
24.65
Air draft in ballast
29
Depth (moulded)
11.55
Distance WL-HC in ballast
7.77
GT
8.911
NT
4.419

Cargo capacities

Total cubic feet capacity
606781 ft3 grain/bale

Holds/hatches

2 Holds/ 2 Hatches. Both types are: Fully open hatch - no understow. Fully box and double skinned. Fully square - except
box structure due to vessel's outer shape.

Hold #1

Dimensions
50.4 x 14.34 x 11.47
Luiken
50.4 x 14.34 x 11.47

Hold #2

Dimensions
61.6 x 14.34 x 11.47
Luiken
61.6 x 14.34 x 11.47

Electrical ventilaton

Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de
humidifier system.
Vessel is equipped with Coops & Nieborg pontoon hatchcovers.

Tank capacities

HFO
973.3
MGO
70.1
Water ballast capacity
6059.8
Fresh Water
60.2

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
Wärtsilä 9L32C 4500 750
Reduction gear
1x Flender
Propeller
Single ccp, 4 blades with nozzle, Ø 4200mm
Bow thruster
640
