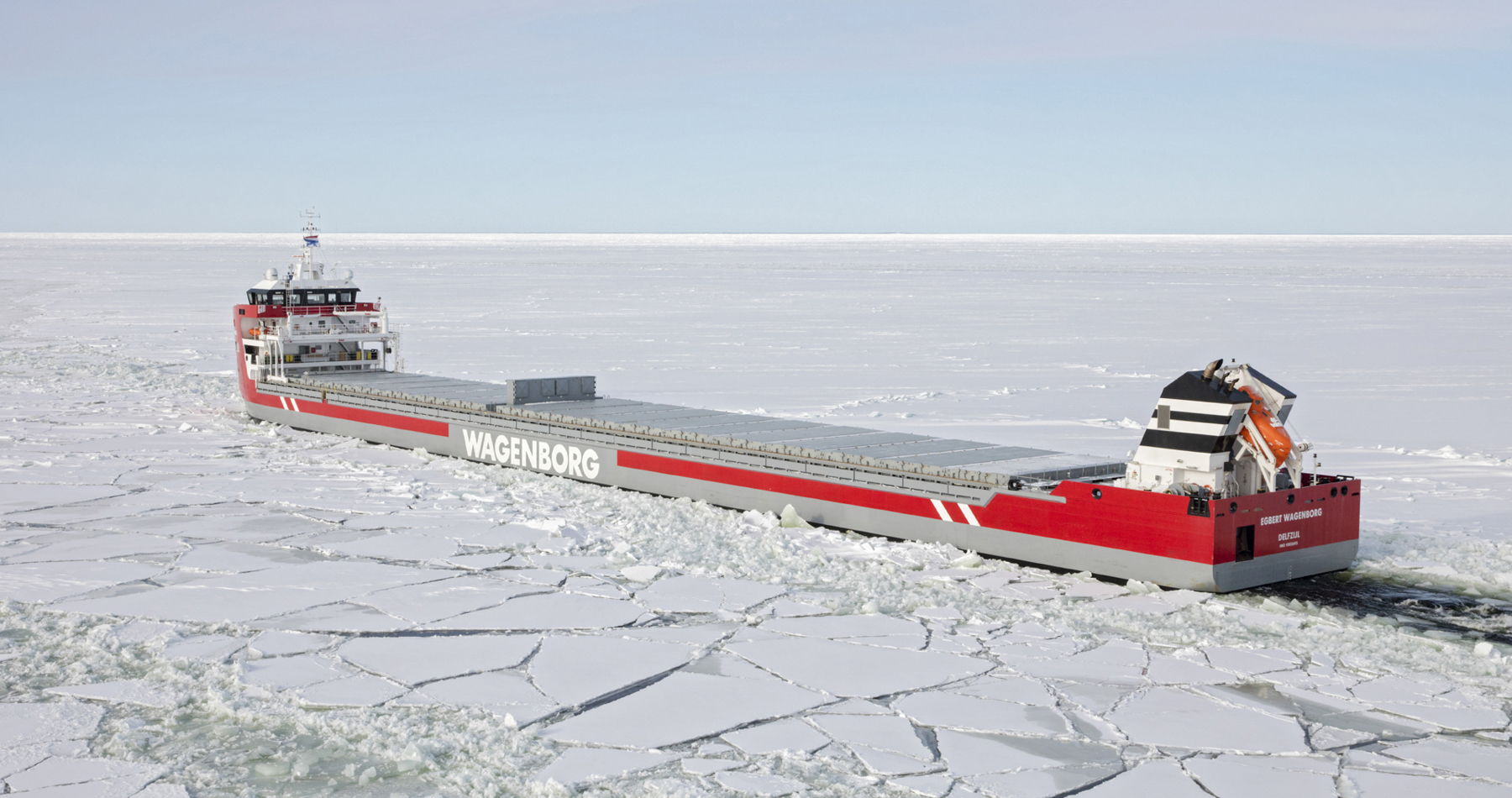

Easymax

Multipurpose Open Top | 3 Vessel | Finnish /Swedish 1A

Length o.a.: 149.95 | Beam: 15.9

Hold capacity (cbft) 625.000
DWCC (t) 13.800

Key features

Vessels in this series 3
Flag Dutch
Trading Area Europe & Atlantic
Open hatch, fully box
Ice class IA
Polar code
Tween decks
Bulk heads Yes
Dehumidifying system
High intake
Lifting capacity

Main particulars

Shipyard
Koninklijke Niestern Sander
Classification
Bureau Veritas
Class notations
I + HULL +MACH General cargo ship-heavycargo (tanktop 150 kN/m2, Tanktop (non-uniformal) 200 kN/m2) - occasional dry bulk cargo Unrestricted navigation. +AUT-UMS, +SYS-NEQ-1, MON-SHAFT, ICE CLASS 1A, INWATERWAYSURVEY
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
14.366
DWCC Summer
13.800
Length over all
149.95
Breadth over all
15.9
Draft summer
8.6
Draft in ballast
4.740
TPC SSW
22
Air draft in ballast
34.23
Depth (moulded)
12.2
Distance WL-HC in ballast
9.5
GT
8.827
NT
4.475

Cargo capacities

Total cubic feet capacity
625000 ft3 grain/bale

Holds/hatches

2 Holds/ 2 hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box s
tructures in fore and aft. part due to vessel's outer shape.

Hold #1

Dimensions
47.36 x 13.5 x 12.15
Luiken
47.36 x 13.5 x 12.15

Hold #2

Dimensions
64.38 x 13.5 x 12.15
Luiken
64.38 x 13.5 x 12.15

Electrical ventilaton

Holds are equipped with electrical ventilation, 6 air changes per hour basis empty holds, both holds are fitted with deh
umidifier system. Vessel is equiped with Coops & Nieborg pontoon hatch covers.
Vessel is also equipped with Removable ventilation trunks.

Tank capacities

HFO
510
MGO
76
Water ballast capacity
4740
Fresh Water
52.4

Fuel oil specification

VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.

Engines

Main engine
MAK 6M32C 2999 1500
Propeller
Ø 4200mm CCP in Nozzle
Bow thruster
750

Related ship series

960x640

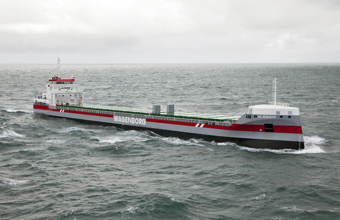

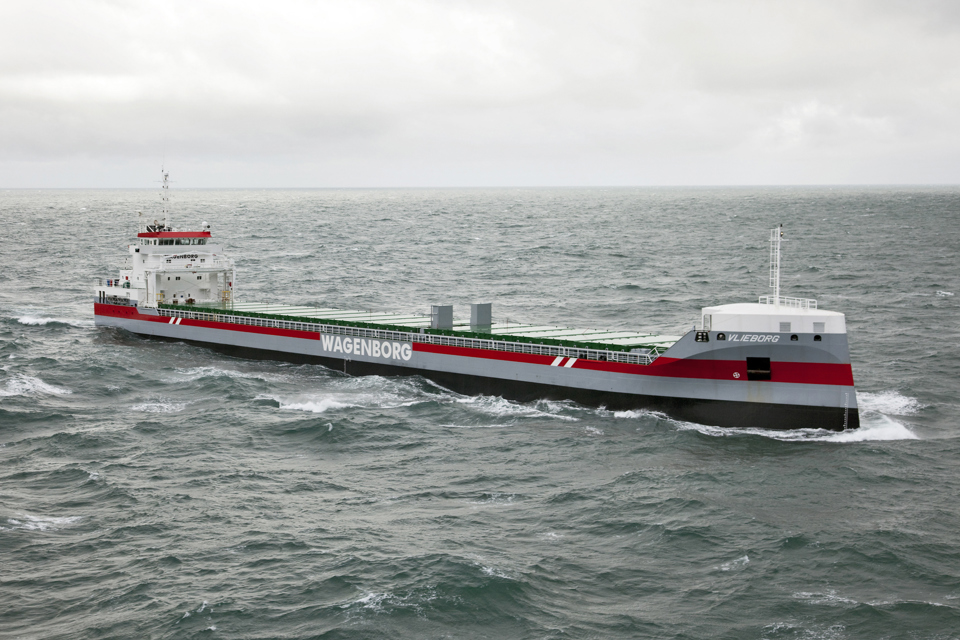

V-XXL Class
Multipurpose Dry Cargo Carrier | 3 Vessel | Finnish /Swedish 1A
Length o.a.: 142.65 | Beam: 15.87
Hold capacity (cbft) 503.821
DWCC (t) 11.300
960x640

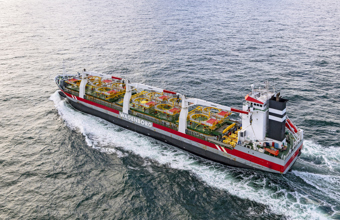

A-Class
Multipurpose Dry Cargo Carrier | 15 Vessel | Finnish /Swedish 1A
Length o.a.: 143 | Beam: 21.5
Hold capacity (cbft) 707.633
DWCC (t) 15.750
960x640

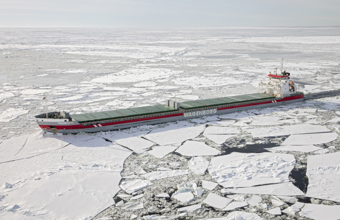

F-Class
