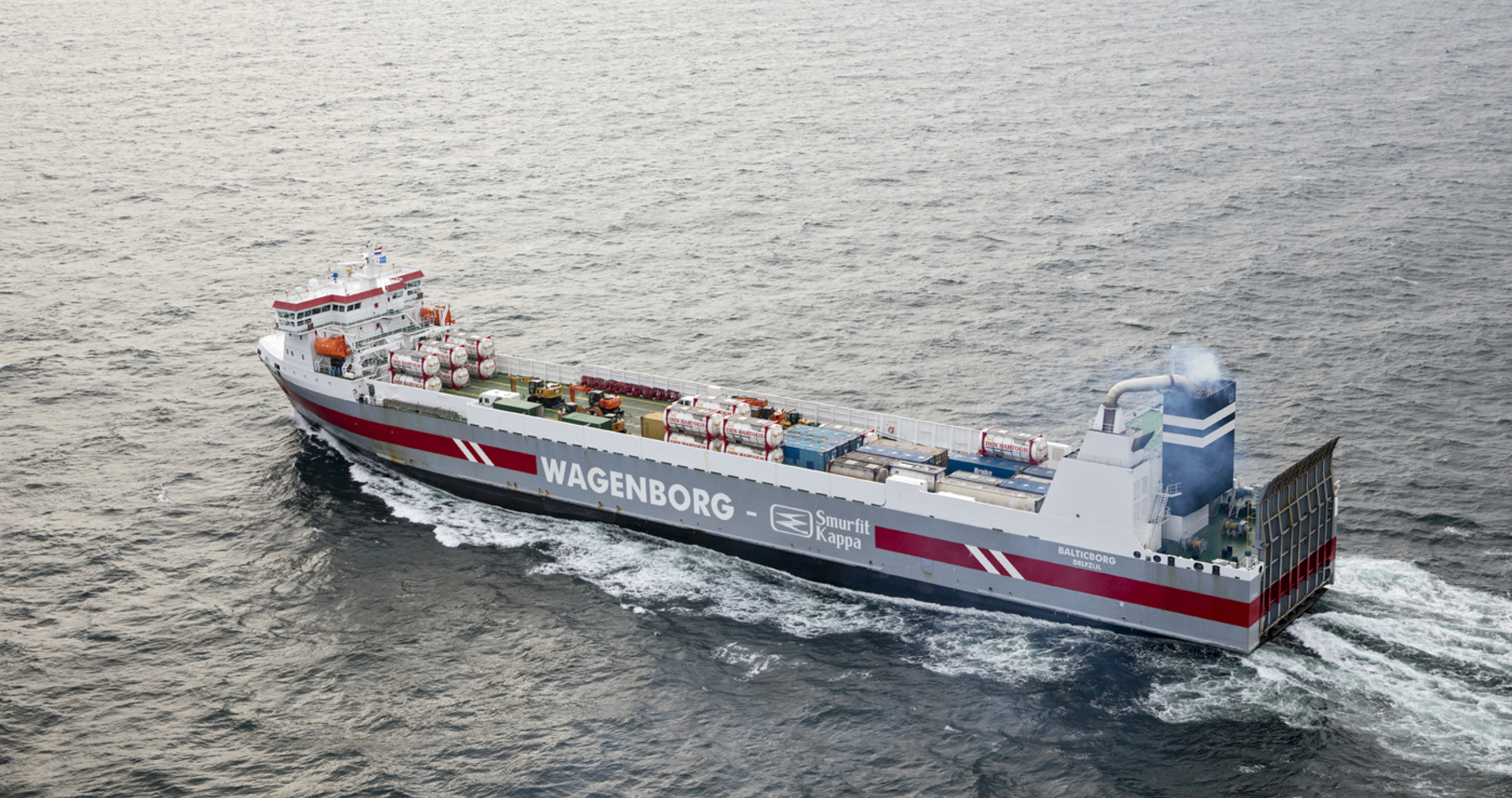

Balticborg
RORO | Vessel | Finnish /Swedish 1A
Length o.a.: 153.05 | Beam: 21.6
Hold capacity (cbft)
678.700
DWCC (t)
8.600
Key features
Vessels in this series
2
Flag
Dutch
Trading Area
Open hatch, fully box
Ice class
IA
Polar code
Tween decks
Bulk heads
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Bodewes Volharding
Classification
Bureau Veritas
Class notations
I, HULL, MACH, RoRo cargo ship, Unrestricted Navigation, Ice Class 1A, AUT-UMS, SYS-NEQ, CLEAN SEA 7+, CLEAN AIR, veriSTAR-HULL, In Water Survey
Ice class
IA
Port of Registry
Delfzijl
Flag
Dutch
DWAT
10.254
DWCC Summer
8.600
Length over all
153.05
Breadth over all
21.6
Draft summer
7.1
Draft in ballast
7.585
TPC SSW
0
Air draft in ballast
29
Depth (moulded)
15.2
Distance WL-HC in ballast
0
GT
12.635
NT
3.790
Cargo capacities
Total cubic feet capacity
678700 ft3 grain/bale
Holds/hatches
Hold #1
Dimensions
103.9 x 19.7 x 0
Luiken
103.9 x 19.7 x 0
Hold #2
Dimensions
137.31 x 19.6 x 5.8
Luiken
137.31 x 19.6 x 5.8
Hold #3
Dimensions
92.38 x 14.8 x 5
Luiken
92.38 x 14.8 x 5
Electrical ventilaton
Hold ventilation about 25 Air changes per hour basis empty holds.
Tank capacities
HFO
700
MGO
165
Water ballast capacity
7585
Fresh Water
100
Fuel oil specification
HFO as per ISO 8217:2010 RMG 380. MGO as per ISO 8217:2010 DMA. Within: ECA Area t/c operartion to be responsible for sulphur limit compliance.
Engines
Main engine
Wärtsila 9L46C 9450 500
Propeller
Single cpp, 5000 (mm), ice Class 1AS, 135 rpm
Bow thruster
515
Vessels in this series
- Balticborg 2004
- Bothniaborg 2004
