Details
General
Call sign |
P.C.N.L. |
IMO number |
9568328 |
Built |
2012 |
Shipyard |
Koninklijke Niestern Sander |
Classification |
Bureau Veritas |
Class notations |
1 HULL+MACH, General cargo ship - heavycargo ([inner bottom: 150 kN/m2]); Container ship Unrestricted navigation, + AUT-UMS, SYS-NEQ, MON-SHAFT, ICE CLASS IA |

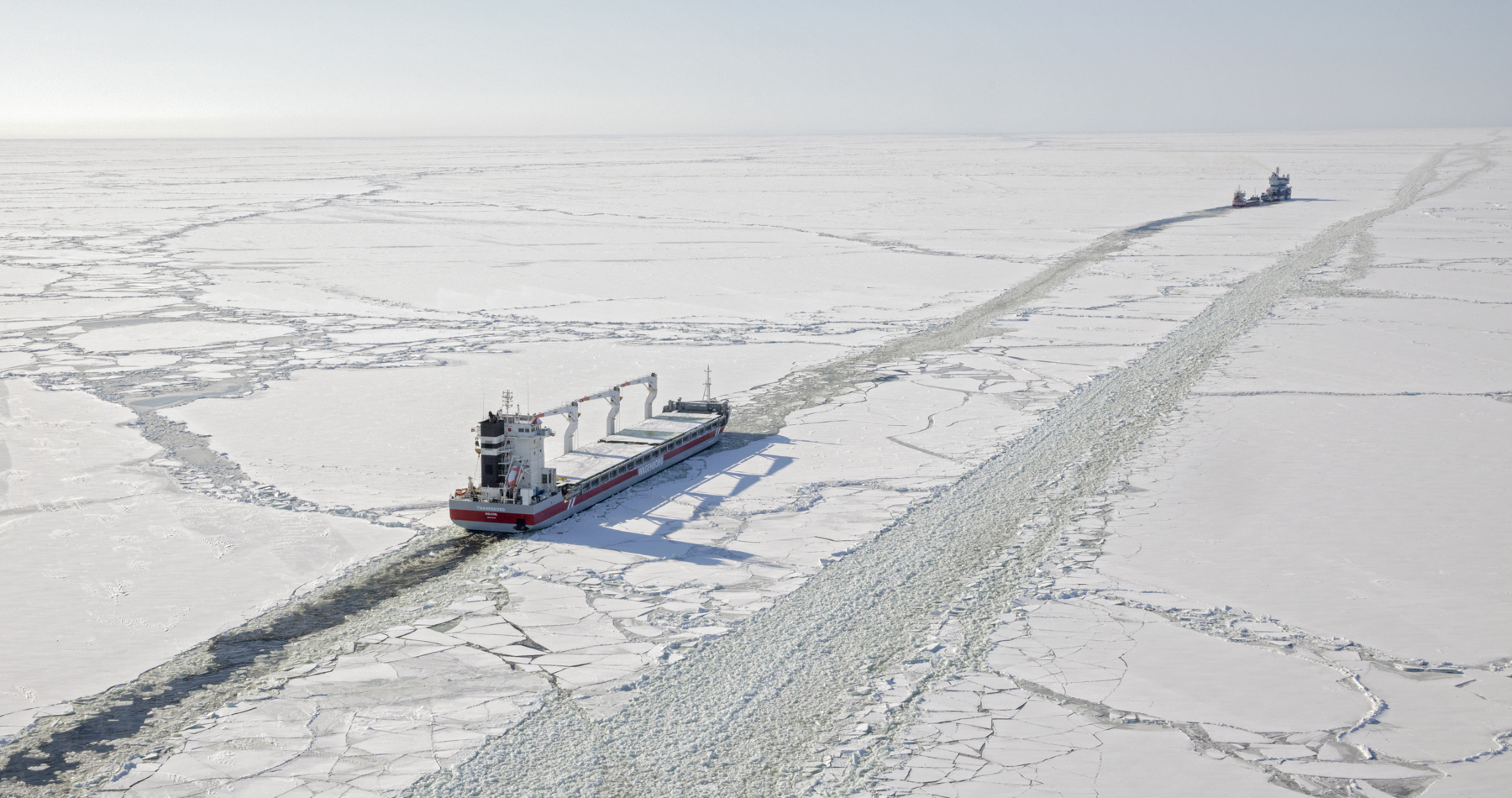

Ice class |
Finnish /Swedish 1A |
Port of registry |
Delfzijl |
Flag |
Dutch |
Main particulars
DWCC (summer) |
10900 ton |
Length over all |
144.56 m |
Breadth over all |
15.87 m |
Draughts |
8 |
TPC SSW |
20 |
Air draft (in Ballast) |
30.35 |
Depth (moulded) |
11.15 |
Distance WL-HC in ballast |
9.25 |
GT |
7680 |
NT |
3846 |
Cargo capacities
Total cubic feet capacity |
523237 ft3 grain/bale |
Holds/hatches
2 Holds/ 2 Hatches, both holds are open hatch, no understow, double skinned. Holds are fully box and square except box s tructures in fore and aft part due to vessel's outer shape.
Hold #1
Dimensions |
48.1 x 13.2 x 11.42 |
Luiken |
48.1 x 13.2 |
Hold #2
Dimensions |
54.76 x 13.2 x 11.42 |
Luiken |
54.76 x 13.2 |
Electrical ventilaton
Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de humidifier system. Vessel is equipped with Coops & Nieborg pontoon hatchcovers.
Tween decks
Vessel is equipped with 4 tweendecks, consisting of loose tweendeck pontoons. Tweendecks can be used as vertical bulkhea ds. Strenghts Max pressure tanktop 15,00 mt/sqm Max pressure tweendecks 3,50 mt/sqm Max pressure weatherdeck 1,75 mt/sqm
Tank capacities
HFO |
876 m3 |
MGO |
86 m3 |
Water ballast capacity |
4450 m3 |
Fresh water |
56 m3 |
Speed/consumption
Full speed/ consumption 14 knots - 14,5 mts Eco speed / consumption 12 knots - 13,0 mts These ficures are about and based on 5,50 m (ballast), clean bottom, even keel, deep and currentless waters, calm sea an d max wind force Beaufort 2 / Douglas 2 and maximum sea temperature 28/29 degrees Celsius, and schaft generator connecte d. Consumption in port 1 mts MGO/day For manoeuvring and navigation in port/ narrow water vessel burns MGO.
Fuel oil specification
VLSFO 0,5% ISO 8217:2010. MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine |
Wärtsilä 9L32C , 4500 kW at 750 RPM |
Reduction gear |
1 Flender |
Propeller |
Single CCP, 4 blades, 4.200 mm |
Bow thruster |
700 kW |
