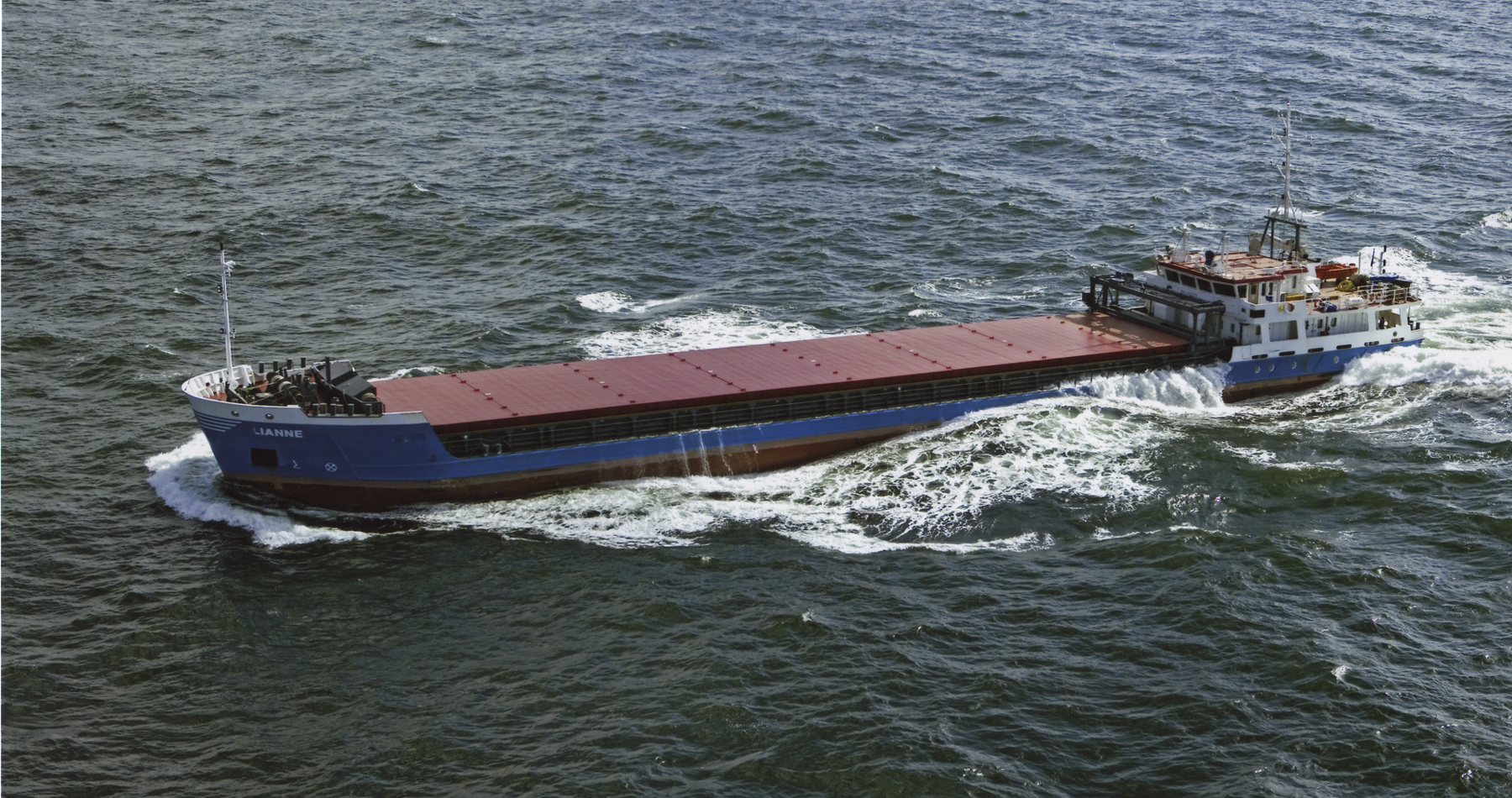

Van Dam Class
Multipurpose Dry Cargo Carrier | 3 Vessel | 1C
Length o.a.: 79.94 | Beam: 12.5
Hold capacity (cbft)
125.000
DWCC (t)
2.810
Key features
Vessels in this series
3
Flag
Antigua & Barbuda
Trading Area
Baltic & Continent
Open hatch, fully box
Ice class
IC
Polar code
Tween decks
Bulk heads
Yes
Dehumidifying system
High intake
Lifting capacity
Main particulars
Shipyard
Ustamehmetoglu Karadeniz, Eregli
Classification
Rina Services
Class notations
General cargo ship - double side-skin - equipped for carriage of containers, unrestricted navigation + AUT-UMS; ICE CLASS 1C
Ice class
IC
Port of Registry
St. John's
Flag
Antigua & Barbuda
DWAT
3.020
DWCC Summer
2.810
Length over all
79.94
Breadth over all
12.5
Draft summer
4.74
Draft in ballast
0
TPC SSW
0
Air draft in ballast
18.7
Depth (moulded)
6.1
Distance WL-HC in ballast
4.38
GT
1.903
NT
958
Cargo capacities
Total cubic feet capacity
125000 ft3 grain/bale
Holds/hatches
1 Hold / 1 hatch, both types are : fully open hatch and double skinned.
Hold #1
Dimensions
54.6 x 10.27 x 6.39
Luiken
54.6 x 10.27 x 6.39
Electrical ventilaton
Hold ventilation abt. ..... air changes per hour basis empty hold.
Vessel is / not fitted with dehumidifier system.
Tank capacities
HFO
0
MGO
140
Water ballast capacity
0
Fresh Water
0
Fuel oil specification
MGO DMA 0,1% ISO 8217:2010. Within: ECA Area t/c operation to be responsible for sulphur limit compliance.
Engines
Main engine
MAK 6M20 1140 1000
Bow thruster
125
Related ship series
Veka Class
Multipurpose Dry Cargo Carrier | 8 Vessel | Finnish Ice class II
Length o.a.: 88.97 | Beam: 11.8
Hold capacity (cbft)
158.985
DWCC (t)
3.458

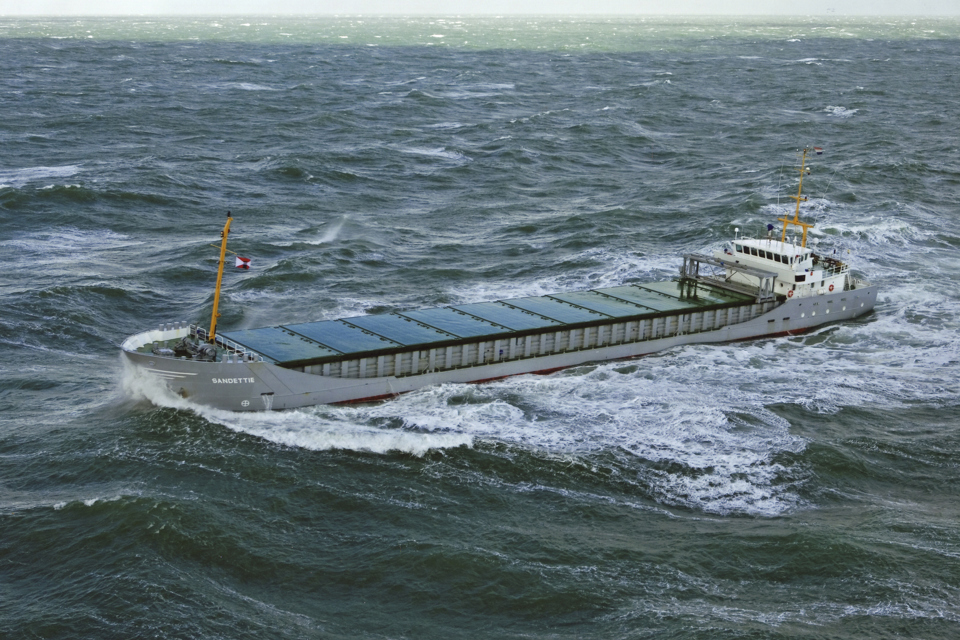

J-Class
Multipurpose Dry Cargo Carrier | 4 Vessel | 1D
Length o.a.: 88.95 | Beam: 12.4
Hold capacity (cbft)
150.000
DWCC (t)
2.800

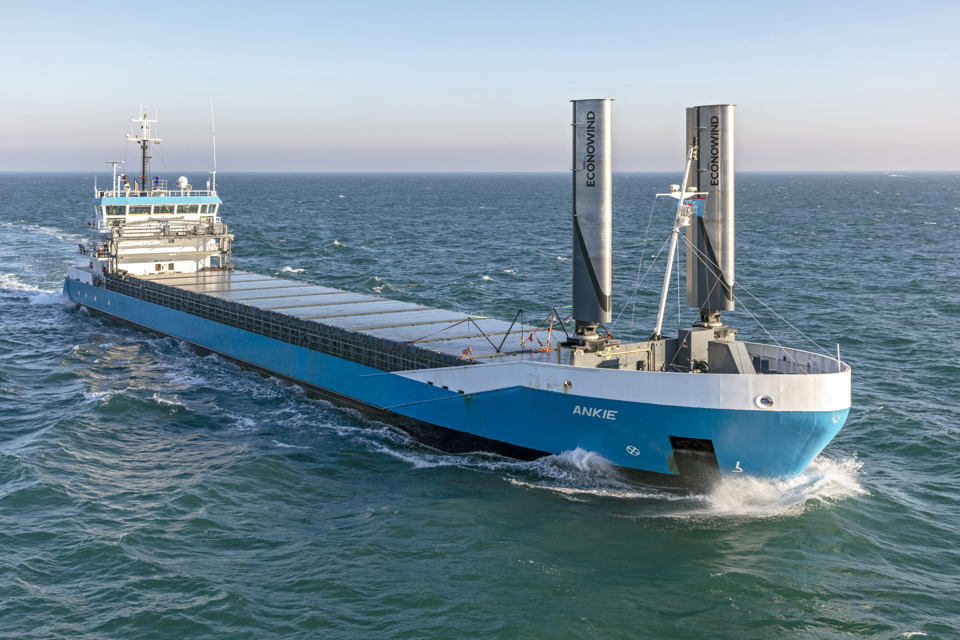

Icerunner
